Yamaha Outboard Parts - BOTTOM COWLING - E115AWH (2003) | Flood Marine

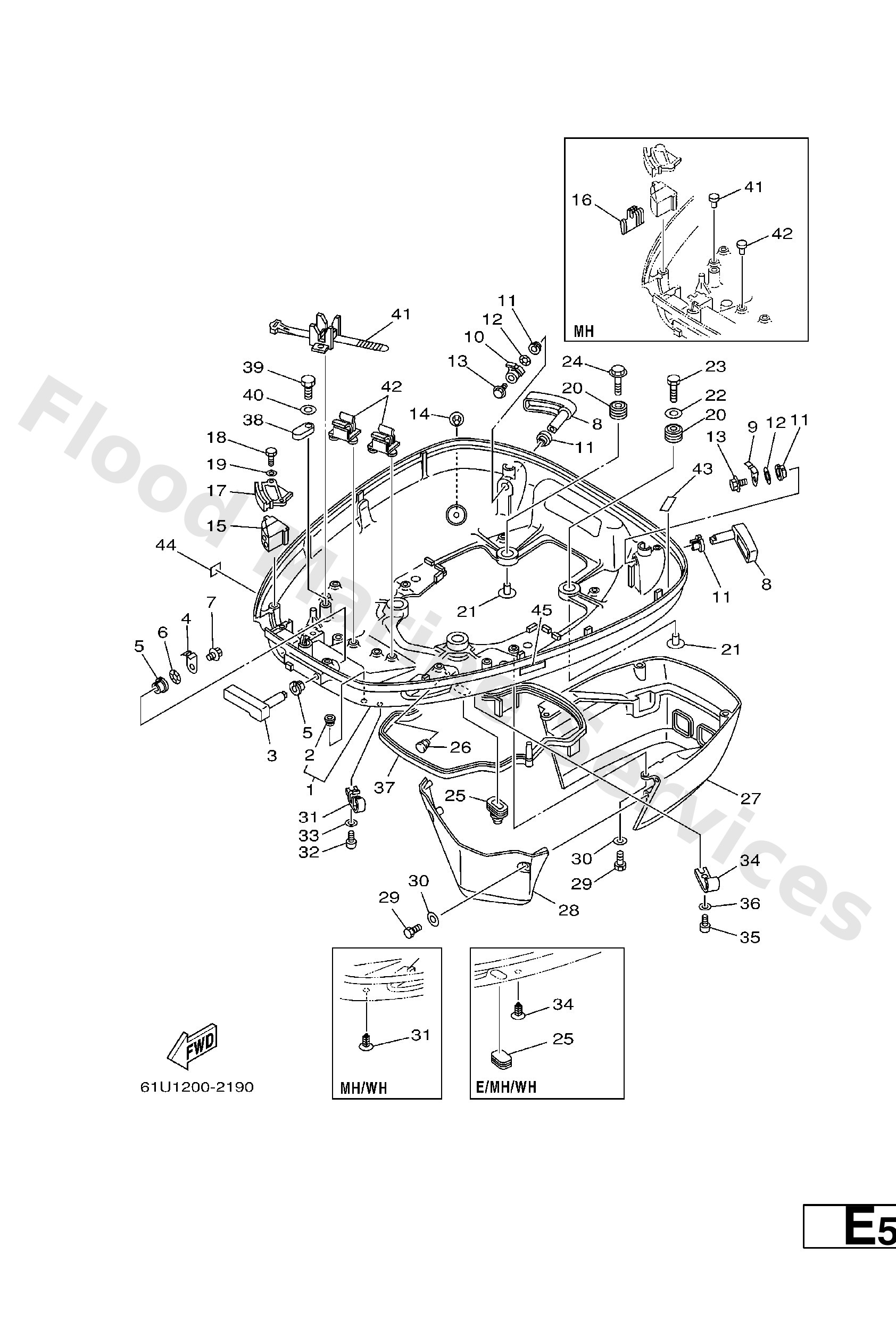

Diagram: BOTTOM COWLING

Diagram

Parts List

Reference
Description
Price


2
6H4−42748−00
Grommet
Loading…

↗
4
688−42816−00
Lever, clamp 2
Loading…

↗
5
90386−13M38
Bushing (697)
Loading…

↗
6
90206−13M10
Washer, wave (6e5)
Loading…

↗
7
90119−06M09
Bolt, with washer
Loading…

↗
9
6G5−42816−00
Lever, clamp 2
Loading…

↗
10
6E5−42816−01
Lever, clamp 2
Loading…

↗
14
6E5−44391−00
Nipple, hose
Loading…

↗
15
6E5−42725−00
Grommet
Loading…

↗
16
61U−42725−00
Grommet
Loading…

↗
18
97095−06016
Bolt, hexagon deep recess
Loading…

↗
19
92995−06600
Washer, plain (646)
Loading…

↗
20
90480−22M15
Grommet (6e5)
Loading…

↗
21
90387−08M37
Coller (6e5)
Loading…

↗
22
90201−08M54
Washer, plate (6e5)
Loading…

↗
23
97075−08035
Bolt(70w)
Loading…

↗
24
90119−08M22
Bolt, with washer
Loading…

↗
25
688−42726−10
Grommet
Loading…

↗
25
6H4−42726−00
Grommet
Loading…

↗
26
90480−10M36
Grommet (6e5)
Loading…

↗
27
6E5−42741−01−4D
Apron
Loading…

↗
28
6E5−42771−01−4D
Apron
Loading…

↗
29
97095−06020
Bolt(7u8)
Loading…

↗
31
6E5−24367−01
Clamp, fuel pipe 2
Loading…

↗
31
90338−05M03
Plug (6h1)
Loading…

↗
32
90157−06M01
Screw (6e5)
Loading…

↗
33
92990−06600
Washer, plain (646)
Loading…

↗
34
6E5−24367−10
Clamp, fuel pipe 2
Loading…

↗
37
6E5−42716−00
Rubber, Seal 1
Loading…

↗
38
6E5−82588−00
Plate
Loading…

↗
41
688−82594−00
Clamp
Loading…

↗
41
703−82119−00
Cover, lead wire
Loading…

↗
42
6E5−82594−00
Clamp
Loading…

↗
42
689−85547−00
Damper
Loading…

↗
43
6G5−42791−00
Mark 1
Loading…

↗
43
6G5−42791−10 FOR CHINA,CARIB
Mark 1
Loading…

↗
44
6A1−28176−00 FOR CARIB
Label, Caution
Loading…

↗
45
6E3−8257H−00 FOR CARIB
Plate, Mark
