Yamaha Outboard Parts - BOTTOM COWLING - E55CMH (2003) | Flood Marine

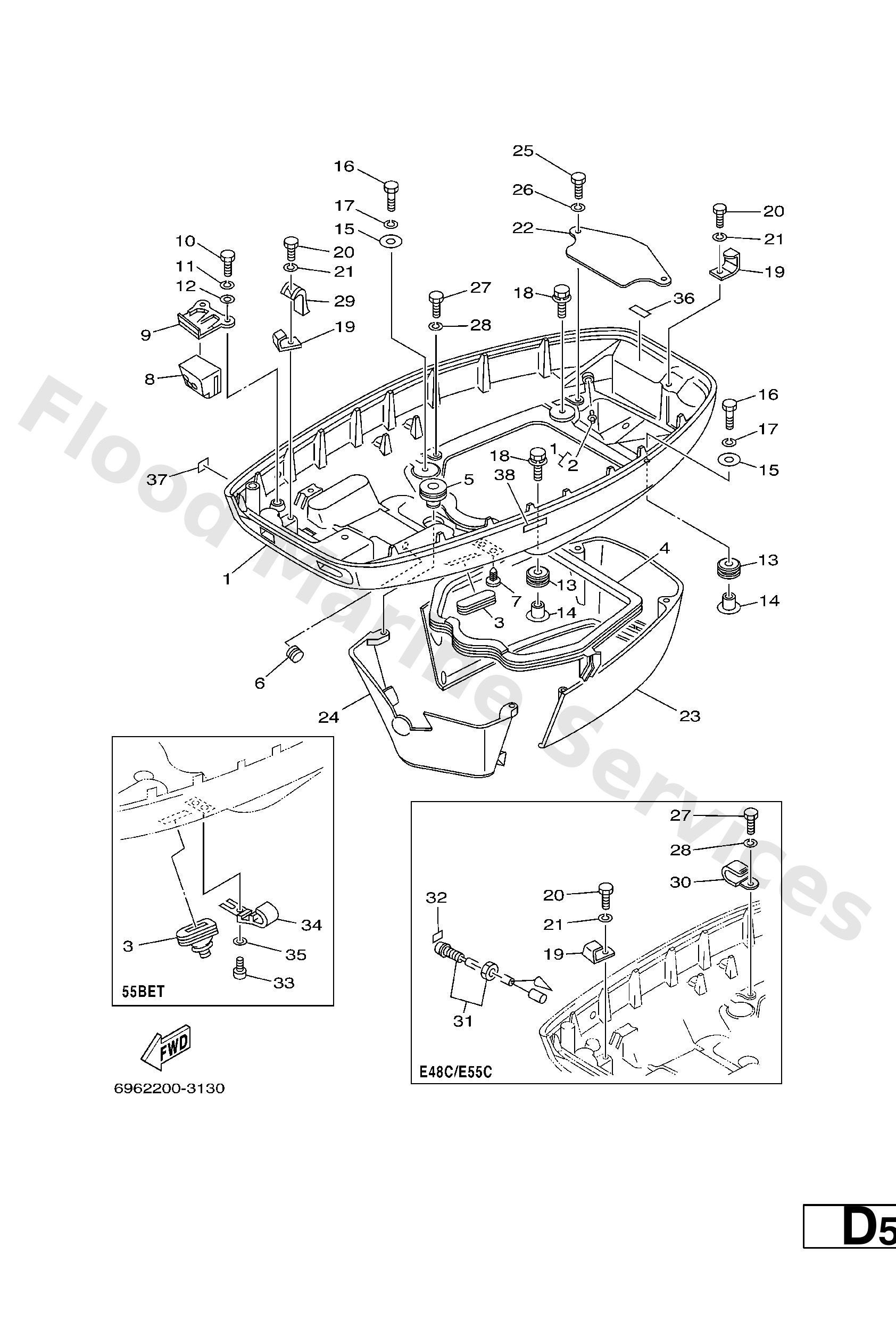

Diagram: BOTTOM COWLING

Diagram

Parts List

Reference
Description
Price


1
696−42711−03−4D
Cowling, bottom
Loading…

↗
1
697−42711−02−4D
Cowling, bottom
Loading…

↗
2
663−24376−00
Pipe, joint 1
Loading…

↗
3
6H4−42726−00
Grommet
Loading…

↗
3
688−42726−10
Grommet
Loading…

↗
4
663−42716−01
Sea 1
Loading…

↗
5
663−42724−00
Grommet
Loading…

↗
6
90480−12004
Grommet(661)
Loading…

↗
7
90338−05M03
Plug (6h1)
Loading…

↗
8
663−42725−01
Grommet
Loading…

↗
8
663−42725−11
Grommet
Loading…

↗
9
663−42738−03−94
Plate, fitting
Loading…

↗
10
97095−06016
Bolt, hexagon deep recess
Loading…

↗
11
92995−06100
Washer(6a1)
Loading…

↗
12
92995−06600
Washer, plain (646)
Loading…

↗
13
90480−09M12
Grommet (6a0)
Loading…

↗
14
90387−06M03
Collar (676)
Loading…

↗
15
90201−06416
Washer, plate(663)
Loading…

↗
16
97095−06030
Bolt(jf7)
Loading…

↗
18
90119−06M08
Bolt, with washer
Loading…

↗
19
663−42744−02
Stay
Loading…

↗
20
97095−06014
Bolt(gj3)
Loading…

↗
22
663−42723−01−94
Cover, bottom
Loading…

↗
23
663−42741−01−4D
Apron
Loading…

↗
24
663−42771−02−4D
Apron
Loading…

↗
25
97095−06020
Bolt(7u8)
Loading…

↗
27
97095−06025
Bolt
Loading…

↗
29
663−82594−03
Clamp
Loading…

↗
30
90465−06M86
Clamp
Loading…

↗
31
6E9−85411−00
Overheat warning lamp
Loading…

↗
32
692−85415−00
Mark, Signal Lamp
Loading…

↗
33
90157−06M01
Screw (6e5)
Loading…

↗
34
6E5−24367−10
Clamp, fuel pipe 2
Loading…

↗
35
92990−06600
Washer, plain (646)
Loading…

↗
36
6G5−42791−00
Mark 1
Loading…

↗
36
664−42791−00
Mark 1
Loading…

↗
36
663−42791−00
Mark 1
Loading…

↗
36
6G5−42791−10 FOR CHINA
Mark 1
Loading…

↗
36
664−42791−10 FOR CARIB,CHINA
Mark 1
Loading…

↗
37
6A1−28176−00 FOR CARIB
Label, Caution
Loading…

↗
38
6E3−8257H−00 FOR CARIB
18 −
Loading…

↗
