E60HMHD (2008)
BOTTOM COWLING

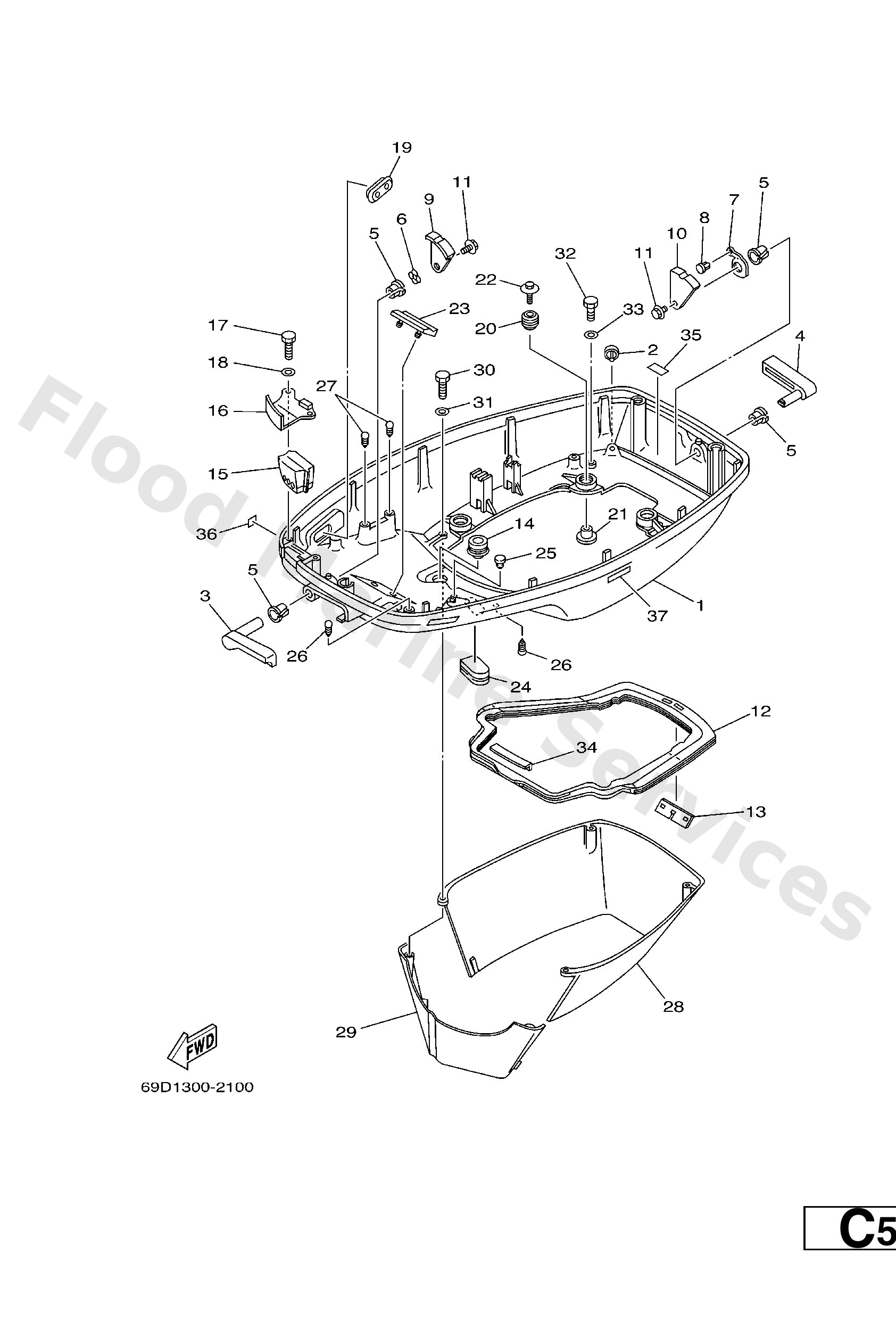

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H342711154D
Cowling, bottom 1
Loading…
↗
2
69D4439100
Nipple, hose
Loading…
↗
3
6H342815014D
Lever, clamp
Loading…
↗
4
6H342817014D
Lever, clamp
Loading…
↗
5
9038613M38
Bushing (697)
Loading…
↗
6
9020613M10
Washer, wave (6e5)
Loading…
↗
7
6H34281300
Spring, clamp lever
Loading…
↗
8
9026904M03
Rivet (6h3)
Loading…
↗
9
6H34281600
Lever, clamp 2
Loading…
↗
10
6H34281800
Lever, clamp 4
Loading…
↗
11
9011906M09
Bolt, with washer
Loading…
↗
12
6H34271602
Rubber, seal 1
Loading…
↗
13
6K54271700
Rubber, seal 2
Loading…
↗
14
6E54272400
Grommet
Loading…
↗
15
6K54272500
Grommet
Loading…
↗
16
6H342738015B
Plate, fitting
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6H34272700
Grommet
Loading…
↗
20
9048009M12
Grommet (6a0)
Loading…
↗
21
9038706M69
Collar (688)
Loading…
↗
22
9011906M61
Bolt, with washer
Loading…
↗
23
6H34276800
Damper
Loading…
↗
24
6H44272600
Grommet
Loading…
↗
25
7038211900
Cover, lead wire
Loading…
↗
26
9033805M03
Plug (6h1)
Loading…
↗
28
6H342741014D
Apron
Loading…
↗
29
6H342771014D
Apron
Loading…
↗
30
9709506025
Bolt
Loading…
↗
32
9709506020
Bolt(7u8)
Loading…
↗
34
6H34271800
Rubber, seal 3
Loading…
↗
35
6G54279110
Mark 1
Loading…
↗
36
6A12817600
Label, Caution
Loading…
↗
37
6E38257H00
-
Loading…
↗
