EK15NMH (2003)
BOTTOM COWLING

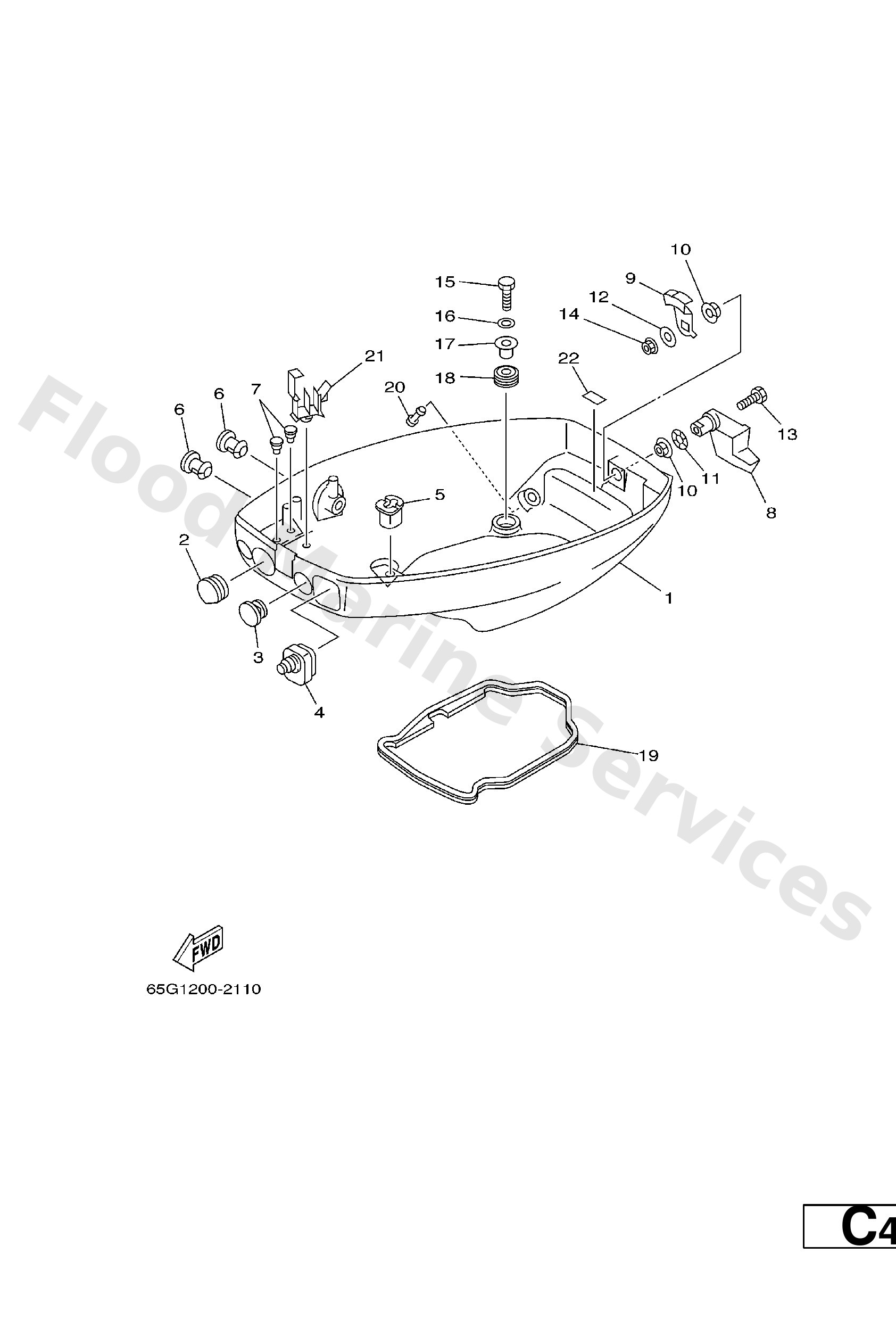

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
63V−42711−03−4D
Cowling, bottom
Loading…
↗
2
682−42724−00
Grommet
Loading…
↗
3
682−42725−02
Grommet
Loading…
↗
4
63V−42726−00
Grommet
Loading…
↗
5
682−42727−00
Grommet
Loading…
↗
6
6G1−42748−00
Grommet
Loading…
↗
7
90480−06M19
Grommet (6e3)
Loading…
↗
8
63V−42815−01−4D
Lever, clamp
Loading…
↗
9
6E7−42816−00
Lever, clamp 2
Loading…
↗
10
90386−12M45
Bushing (6g1)
Loading…
↗
11
90206−12052
Washer, wave (666)
Loading…
↗
12
90201−06068
Washer,plate (6k8)
Loading…
↗
13
97095−06025
Bolt
Loading…
↗
14
95380−06700
Nut
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
90387−06034
Collar (6g1)
Loading…
↗
18
90480−15M31
Grommet (6g1)
Loading…
↗
19
63V−42716−02
Rubber, seal 1
Loading…
↗
20
6H3−44391−01
Nipple, hose
Loading…
↗
21
90465−25M57
Clamp(63v)
Loading…
↗
22
6E7−42791−00
Mark 1
Loading…
↗
