F100DET (2012)
BOTTOM COWLING

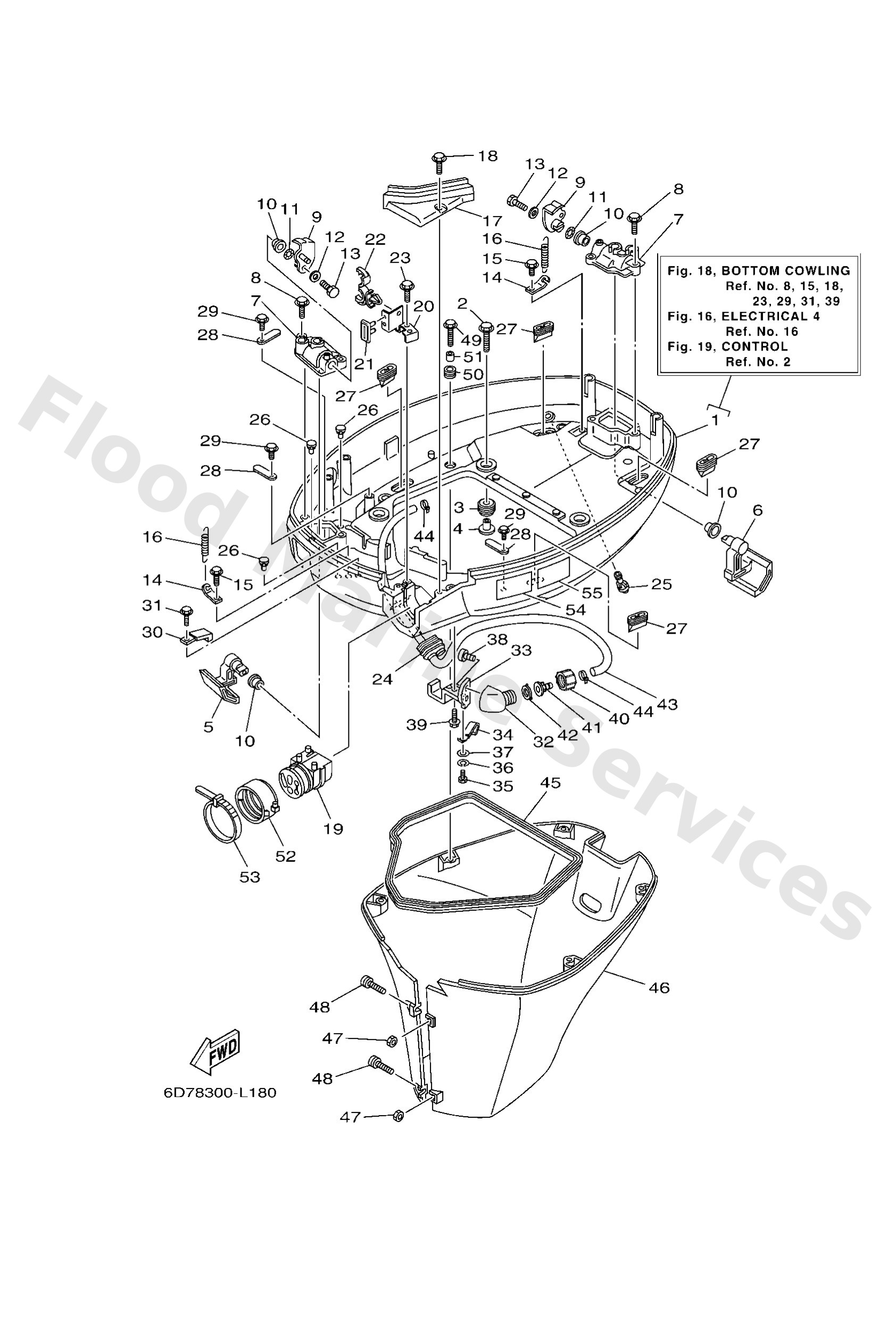

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6D842710008D
Bottom cowling assembly
Loading…
↗
2
9011908M22
Bolt, with washer
Loading…
↗
3
9048022M15
Grommet (6e5)
Loading…
↗
4
9038708M37
Coller (6e5)
Loading…
↗
5
67F42815008D
Lever, clamp
Loading…
↗
6
67F42816008D
Lever, clamp
Loading…
↗
7
67F42828008D
Plate, clamp
Loading…
↗
8
9010906M82
Bolt
Loading…
↗
9
68V4281801
Lever, clamp
Loading…
↗
10
9038615M73
Bush(6l2)
Loading…
↗
11
9020615M18
Washer, wave(6l2)
Loading…
↗
12
9020106068
Washer,plate (6k8)
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
64D4314400
Hook, spring
Loading…
↗
39
9010906M86
FLUSHING KIT
Bolt
Loading…
↗
16
9050616M34
Spring, tension(64d)
Loading…
↗
17
67F42738008D
Plate, fitting
Loading…
↗
18
9010906M96
Bolt
Loading…
↗
19
68V4272500
Grommet
Loading…
↗
20
6D84275602
Stay, clamp
Loading…
↗
21
6D84271700
Rubber, seal 2
Loading…
↗
22
9046418246
Clamp(4tr)
Loading…
↗
24
6H14272621
FLUSHING KIT
Grommet
Loading…
↗
25
6BL4439100
Nipple, hose
Loading…
↗
26
6H44274800
Grommet
Loading…
↗
27
67F4271700
Rubber, seal 2
Loading…
↗
28
6E58258800
Plate
Loading…
↗
29
9010906M81
Bolt
Loading…
↗
30
9046508M23
Clamp (6h3)
Loading…
↗
32
68T1257200
FLUSHING KIT
Adapter
Loading…
↗
33
67F1253501
FLUSHING KIT
Plate
Loading…
↗
34
9046206018
FLUSHING KIT
Clamp
Loading…
↗
35
9709506008
FLUSHING KIT
Bolt (fj1)
Loading…
↗
36
9299506100
FLUSHING KIT
Washer(6a1)
Loading…
↗
37
9299506200
FLUSHING KIT
Ybs66-6 washer, plain
Loading…
↗
38
9016706002
FLUSHING KIT
Screw, tapping
Loading…
↗
40
6R31258100
FLUSHING KIT
Joint, hose 1
Loading…
↗
41
6R31258200
FLUSHING KIT
Joint, hose 2
Loading…
↗
42
6R31258300
FLUSHING KIT
Gasket, hose joint
Loading…
↗
43
67F2431200
FLUSHING KIT
Pipe 2
Loading…
↗
44
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
45
61A4271600
Rubber seal 1
Loading…
↗
46
67F42741018D
Apron
Loading…
↗
47
9538006600
Nut(661)
Loading…
↗
48
9015906M28
Screw, with washer
Loading…
↗
49
9010906M80
Bolt
Loading…
↗
50
9048013M24
Grommet (6e9)
Loading…
↗
51
9038706M43
Coller (6e9)
Loading…
↗
52
68F4275300
AP
Fastner
Loading…
↗
53
9046420258
AP
Clamp
Loading…
↗
54
6AH4279440
Label, warning (ge
Loading…
↗
55
6AH4279450
Label, warning (ge
Loading…
↗
