F2.5AMH (2009)
BOTTOM COWLING

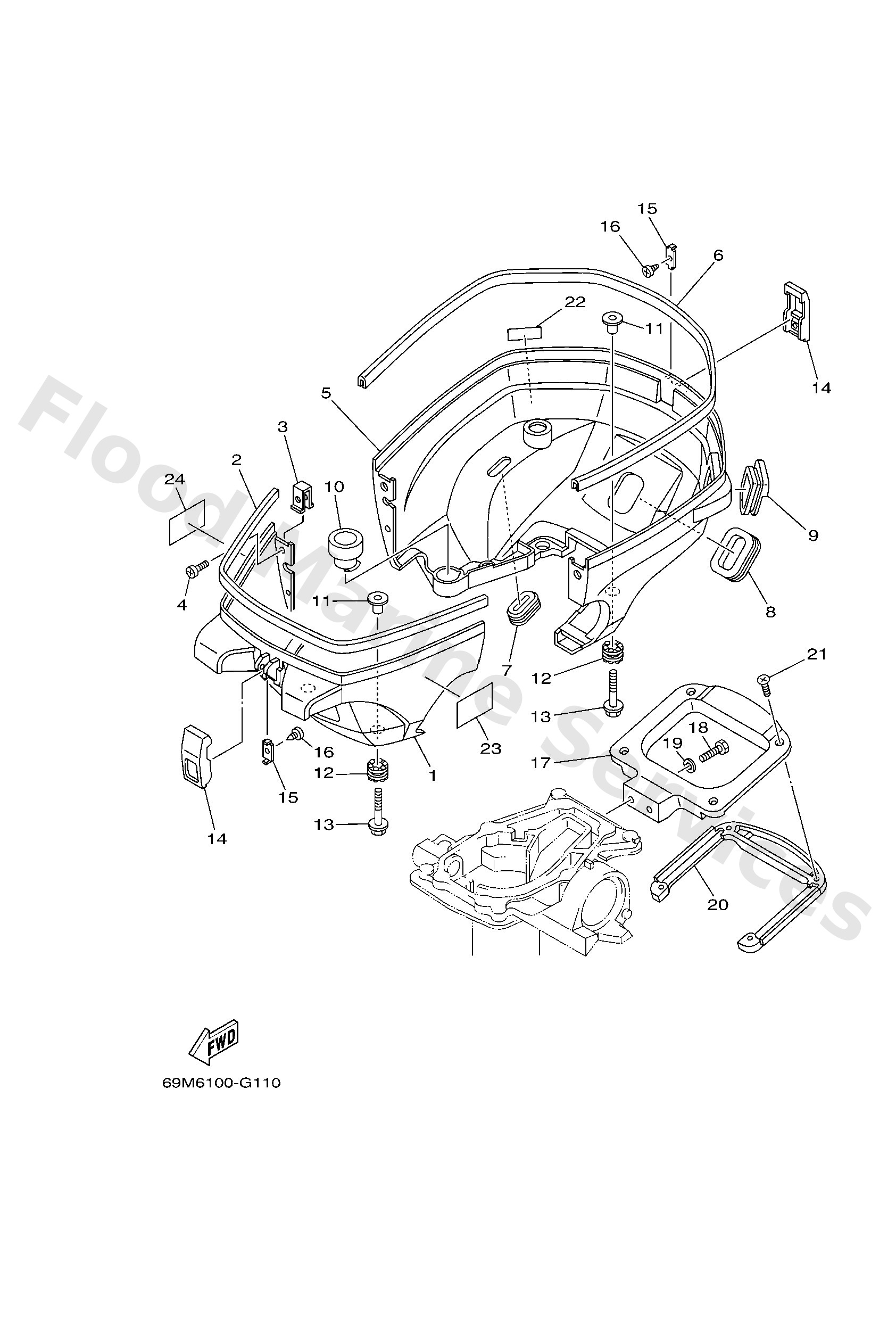

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
69MG2711004D
Cowling,bottom 1
Loading…
↗
2
69M4262800
Seal
Loading…
↗
3
6L54277400
Stay, apron 1
Loading…
↗
4
9015705013
Screw, pan head
Loading…
↗
5
69MG271200
Cowling, bottom 2
Loading…
↗
6
69M4262900
Seal
Loading…
↗
7
69MG272700
Grommet
Loading…
↗
8
69MG272400
Grommet
Loading…
↗
9
69MG272500
Grommet
Loading…
↗
10
69ME531600
Damper 1
Loading…
↗
11
69M4275800
Collar
Loading…
↗
12
69MG276800
Damper
Loading…
↗
13
9011906M17
Bolt, with washer
Loading…
↗
14
6L54264700
Holder, clamp band
Loading…
↗
15
6L54282300
Plate, stop
Loading…
↗
16
9016703M02
Screw, tapping(6l5)
Loading…
↗
17
69MG2731004D
Carring handle
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
69MG273500
Protector
Loading…
↗
21
9016104003
Screw, tapping
Loading…
↗
22
69MF459100
Emblem, fuel cock
Loading…
↗
23
6S74279440
Label, warning (ge
Loading…
↗
24
6S74279450
Label, warning (ge
Loading…
↗
