F2.5BMH (2015)
BOTTOM COWLING

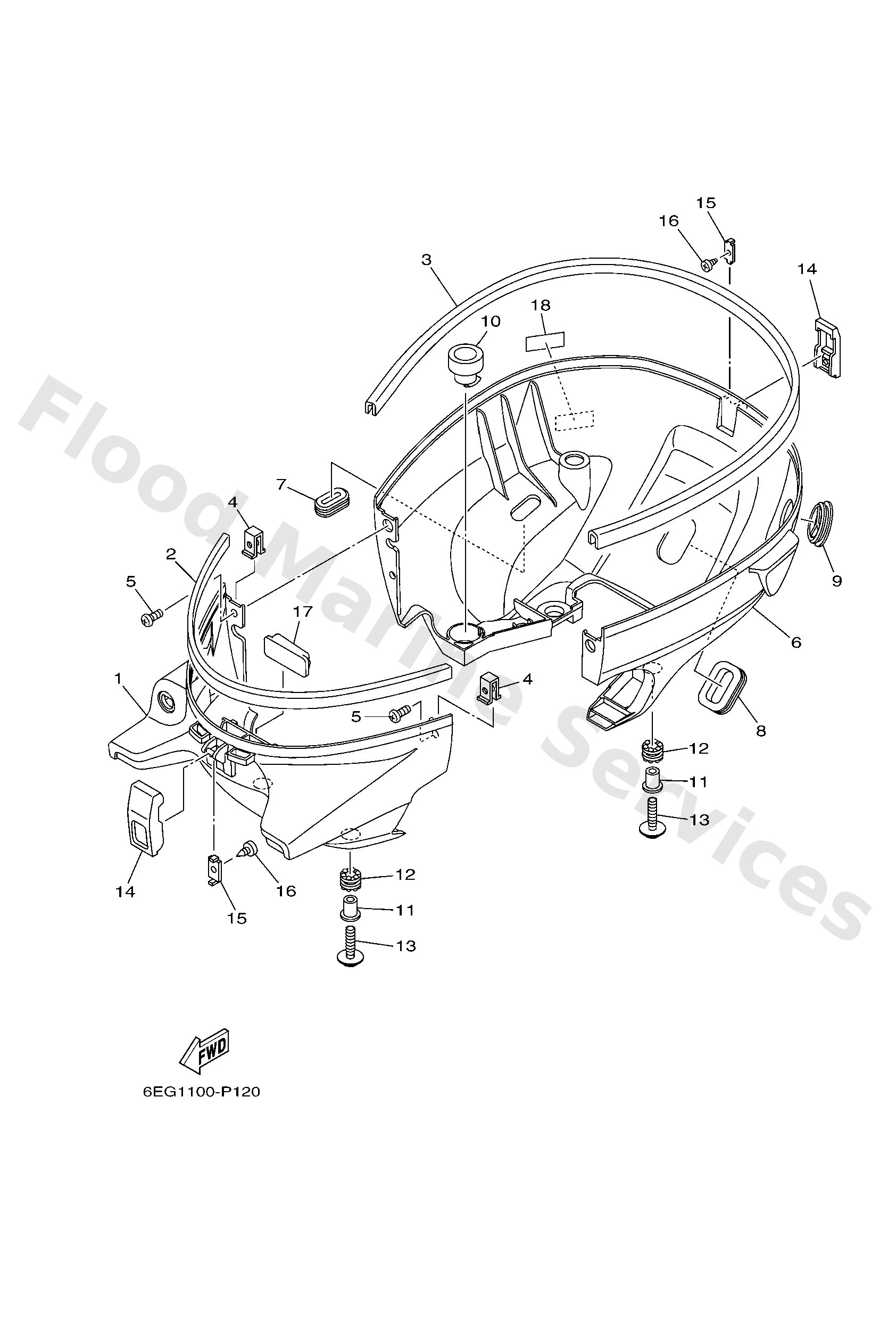

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6EGG271100
Cowling, bottom 1
Loading…
↗
2
6EG4262800
Seal
Loading…
↗
3
6EG4262900
Seal
Loading…
↗
4
6EGG277400
Stay, apron 1
Loading…
↗
5
9015705013
Screw, pan head
Loading…
↗
6
6EGG271200
Cowling, bottom 2
Loading…
↗
7
6EGG272700
Grommet
Loading…
↗
8
6EGG272400
Grommet
Loading…
↗
9
6474515101
Cover, upper casing
Loading…
↗
10
6EGE531600
Damper 1
Loading…
↗
11
90387068N9
Collar
Loading…
↗
12
6EGG276800
Damper
Loading…
↗
13
9011906M17
Bolt, with washer
Loading…
↗
14
6L54264700
Holder, clamp band
Loading…
↗
15
6EGG282300
Plate, stop
Loading…
↗
16
9016703M02
Screw, tapping(6l5)
Loading…
↗
17
6EGG453200
Stopper, upper mou
Loading…
↗
18
6EGF459100
Emblem, fuel cock
Loading…
↗
