F2.5BMH (2025)
BOTTOM COWLING

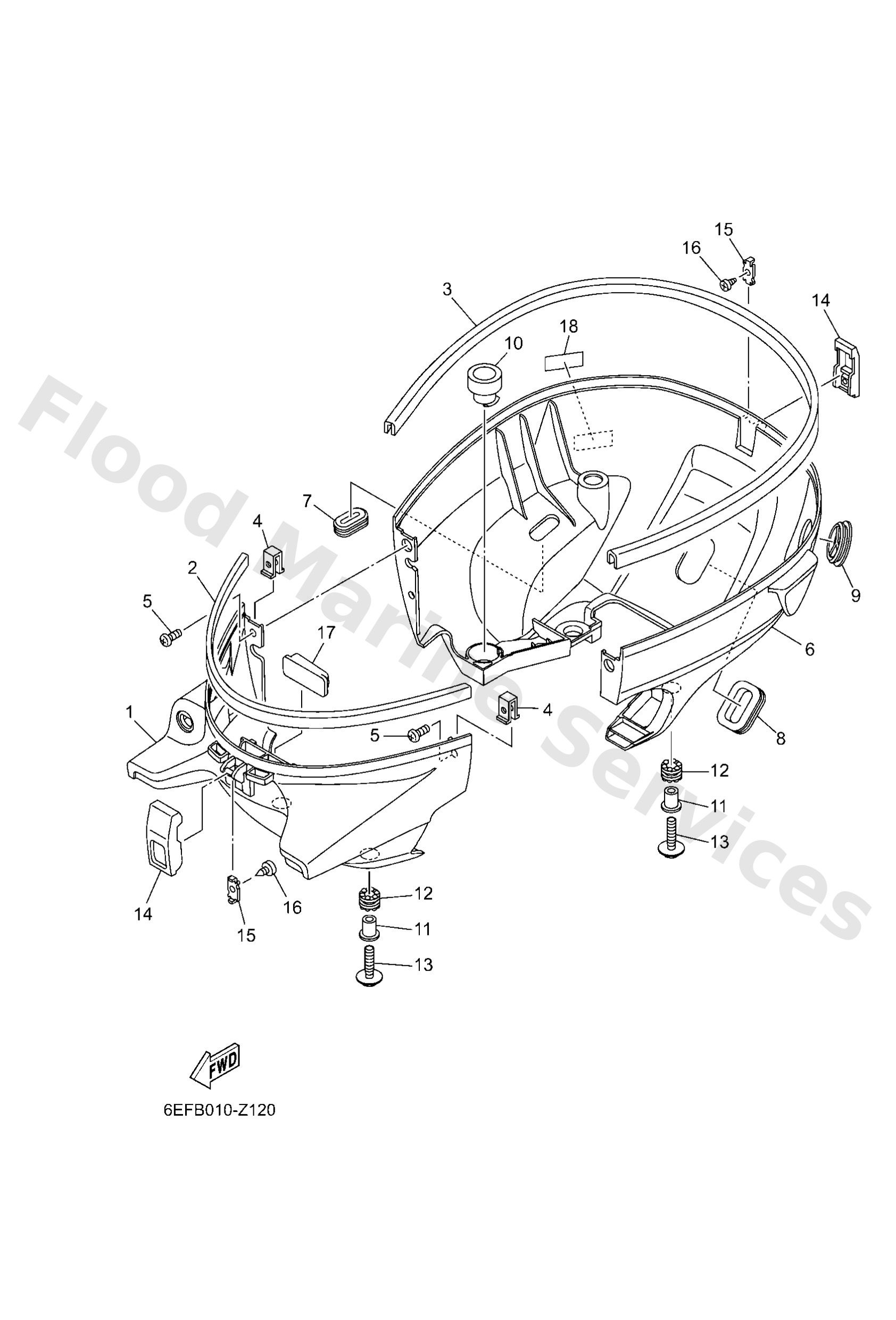

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6EG4271100
Cowling, bottom 1
Loading…
↗
2
6EG4262800
Seal
Loading…
↗
3
6EG4262900
Seal
Loading…
↗
4
6EG4277400
Stay, apron 1
Loading…
↗
5
9015705013
Screw, pan head
Loading…
↗
6
6EG4271200
Cowling, bottom 2
Loading…
↗
7
6EG4272700
Grommet
Loading…
↗
8
6EG4272400
Grommet
Loading…
↗
9
6474515102
Cover, upper casing
Loading…
↗
10
6EG1531600
Damper 1
Loading…
↗
11
69M4275801
Collar
Loading…
↗
12
6EG4276800
Damper
Loading…
↗
13
9011906309
Bolt, with washer
Loading…
↗
14
6L54264700
Holder, clamp band
Loading…
↗
15
6EG4282300
Plate, stop
Loading…
↗
16
9016703M02
Screw, tapping(6l5)
Loading…
↗
17
6EG4453200
Stopper, upper mount
Loading…
↗
18
6EG2459100
Emblem, fuel cock
Loading…
↗
