F25GET (2021)
BOTTOM COWLING

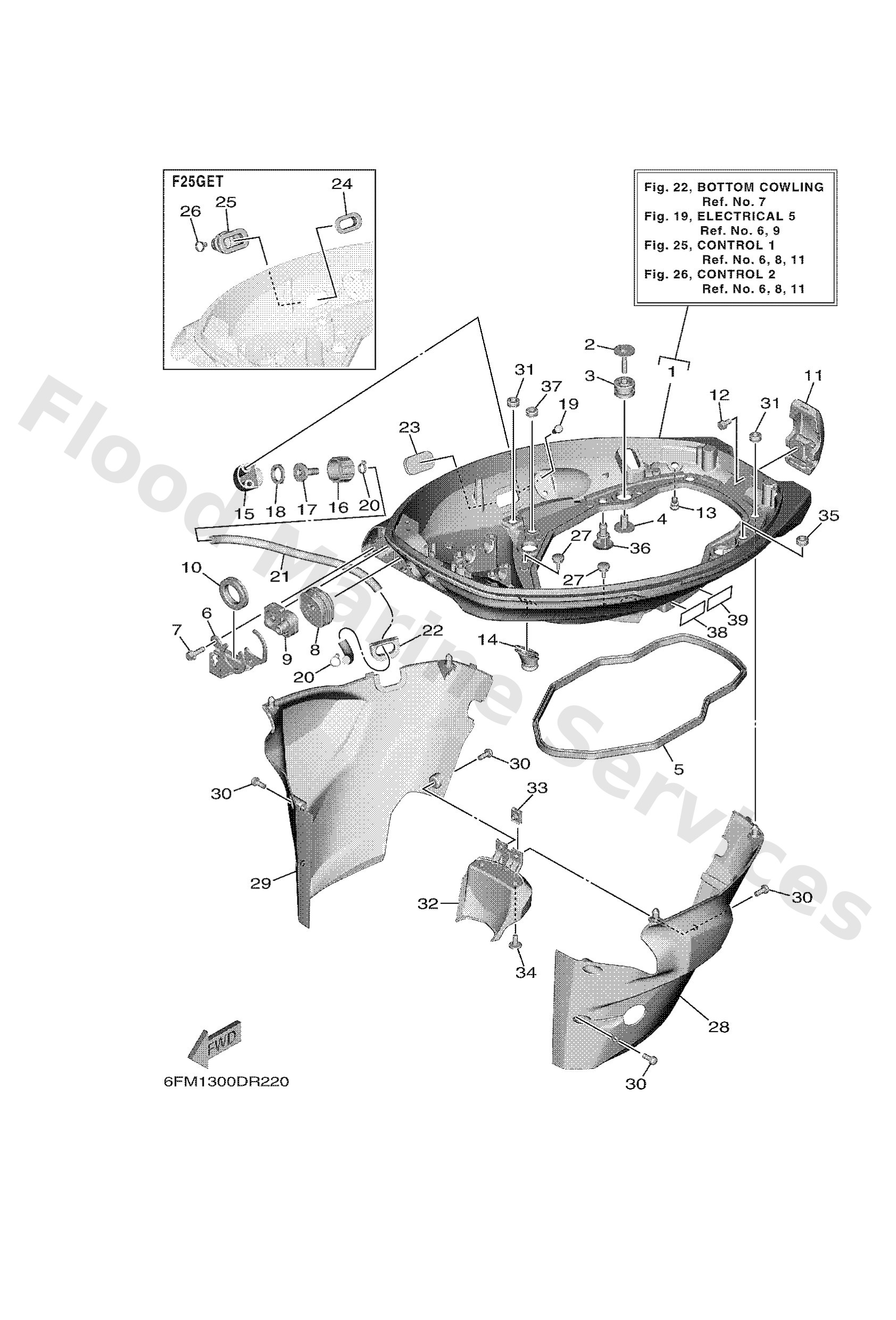

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6FM42710008D
Bottom cowling assembly
Loading…
↗
2
68F8511900
Bolt
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
6FM4271600
Rubber, seal 1
Loading…
↗
6
6FM4276100
Stopper
Loading…
↗
6
6FM4276110
Stopper
Loading…
↗
7
9010906316
Bolt
Loading…
↗
8
6FM4272411
Grommet
Loading…
↗
8
6FM4272401
Grommet
Loading…
↗
9
6FM4272501
Grommet
Loading…
↗
10
6FM4272611
Grommet
Loading…
↗
11
6FM4280100
Cowling clamp comp.
Loading…
↗
12
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
13
6BL4439100
Nipple, hose
Loading…
↗
14
6AH4272701
Grommet
Loading…
↗
15
6DR1257200
Adapter
Loading…
↗
16
6R31258100
Joint, hose 1
Loading…
↗
17
6R31258200
Joint, hose 2
Loading…
↗
18
6R31258300
Gasket, hose joint
Loading…
↗
19
9778060520
Screw, tapping(6k8)
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
9044511182
Hose (l370)
Loading…
↗
22
6AH4272601
Grommet
Loading…
↗
23
6H44272601
Grommet
Loading…
↗
24
6BG4238400
Seal, cap
Loading…
↗
25
6BG4272401
Grommet
Loading…
↗
27
6H44274801
Grommet
Loading…
↗
28
6FM4274100
Apron
Loading…
↗
29
6FM4277100
Apron
Loading…
↗
30
9015906062
Screw, with washer
Loading…
↗
31
9048013M24
Grommet (6e9)
Loading…
↗
32
6FM4273500
Protector
Loading…
↗
33
90183061A8
Nut, spring
Loading…
↗
34
9011106144
Bolt,hex. socket button
Loading…
↗
36
6P24439100
Nipple, hose
Loading…
↗
38
6EE4279440
Label, warning (general)
Loading…
↗
39
6EE4279450
Label, warning (general)
Loading…
↗
