F4AMH (2006)
BOTTOM COWLING

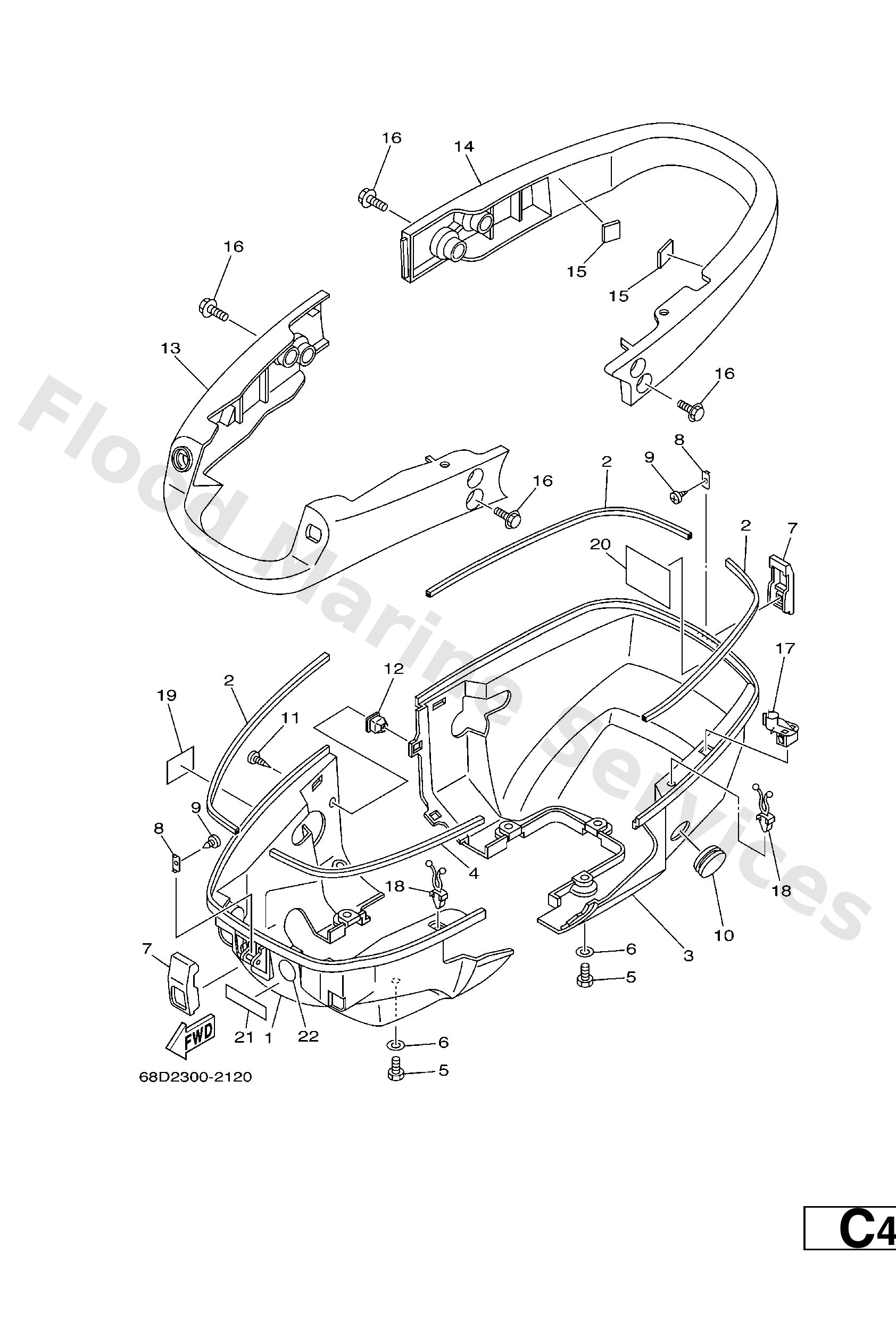

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68DG271101
Cowling bottom 1
Loading…
↗
2
68DG262800
Seal rubber 1
Loading…
↗
3
68DG271201
Cowling bottom 2
Loading…
↗
4
68DG262900
Seal
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
6L54264700
Holder, clamp band
Loading…
↗
8
6L54282300
Plate, stop
Loading…
↗
9
9016703M02
Screw, tapping(6l5)
Loading…
↗
10
9048022M72
Grommet
Loading…
↗
11
9016105001
-
Loading…
↗
12
9048010004
Grommet
Loading…
↗
13
68DG273100
Carring, handle
Loading…
↗
14
68DG273500
Protector
Loading…
↗
15
67D4266200
Damper
Loading…
↗
16
9011906M79
Bolt, with washer
Loading…
↗
17
9046407M50
Clamp
Loading…
↗
18
9046407078
Clamp(81k)
Loading…
↗
19
67D1344450
-
Loading…
↗
20
68DE213860
Mark, Caution
Loading…
↗
21
68DH257H00
-
Loading…
↗
22
60RF415E00
FOR SAV
Label, Caution
