Yamaha Outboard Parts - BOTTOM COWLING - F4BMH (2016) | Flood Marine
New Search
Parts
New Outboards
Home
F4BMH (2016)
BOTTOM COWLING

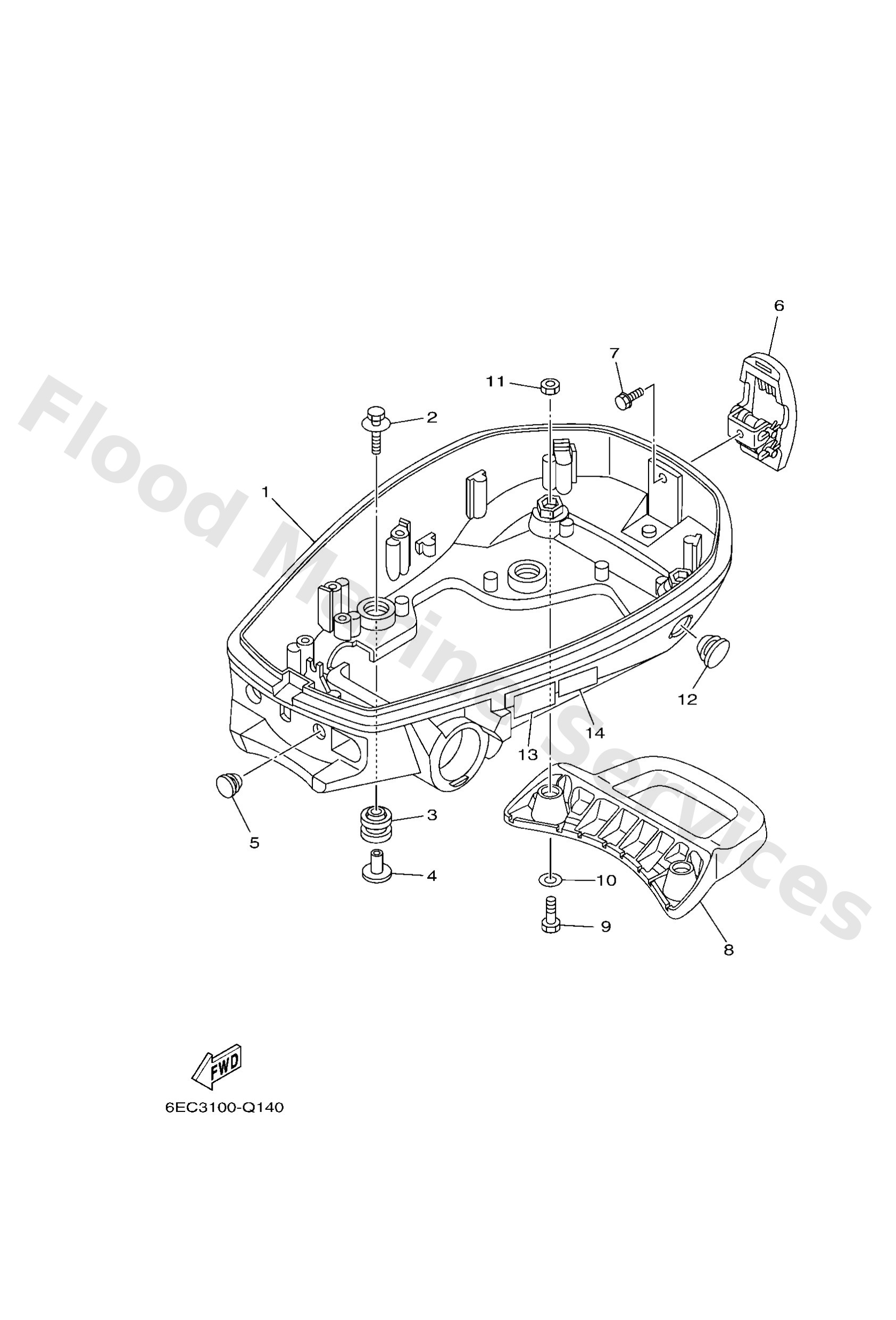

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6EEG2711008D
Cowling, bottom 1
Loading…
↗
2
9011906098
Bolt, with washer
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
9048014M14
Grommet (6e0)
Loading…
↗
6
68T4280100
Cowling clamp comp.
Loading…
↗
7
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
8
6EEG273100
Carrying handle
Loading…
↗
9
9709508020
Bolt, hexagon
Loading…
↗
10
9299508600
Washer, plain (663)
Loading…
↗
11
9538008600
Nut (661)
Loading…
↗
12
9048022M72
Grommet
Loading…
↗
13
6EEG279450
Label, warning (ge
Loading…
↗
14
6EEE343760
Mark, caution
