F50AET (2003)
BOTTOM COWLING

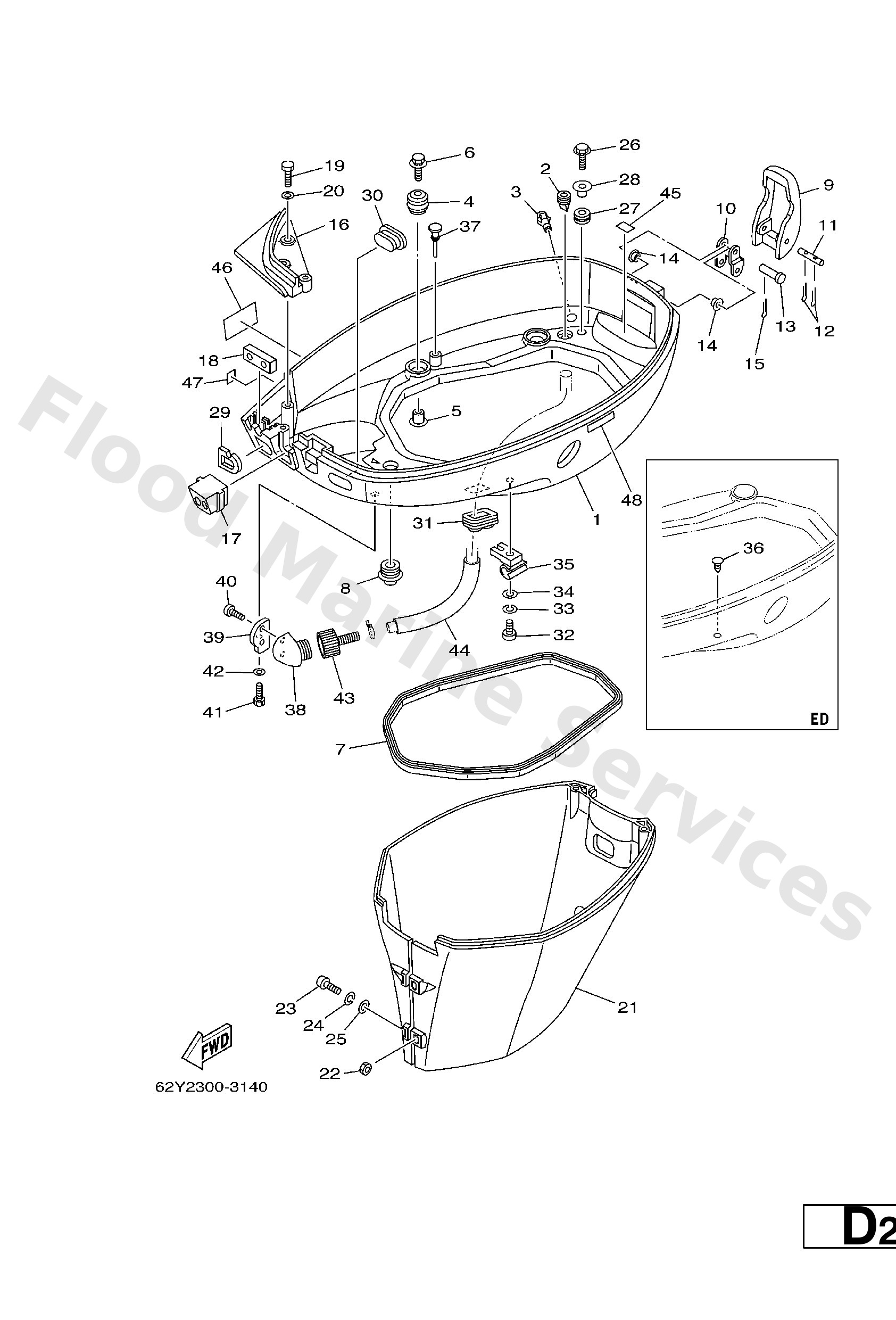

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
62Y−42711−04−4D
Cowling, bottom 1
Loading…
↗
1
62Y−42711−14−4D
Cowling, bottom 1
Loading…
↗
2
65W−42717−00
Rubber, seal 2
Loading…
↗
3
6H3−44391−01
Nipple, hose
Loading…
↗
4
90480−09M12
Grommet (6a0)
Loading…
↗
5
90387−06060
Collar (688)
Loading…
↗
6
90119−06M08
Bolt, with washer
Loading…
↗
7
62Y−42716−00
Rubber seal 1
Loading…
↗
8
6E5−42724−00
Grommet
Loading…
↗
9
62Y−42828−00−4D
Plate, clamp
Loading…
↗
10
62Y−42815−00
Lever, clamp
Loading…
↗
11
90249−05M30
Pin(62y)
Loading…
↗
12
91490−16010
Pin, cotter
Loading…
↗
13
90240−05M19
Pin, clevis(62y)
Loading…
↗
14
90386−05002
Bush 626412910000
Loading…
↗
16
62Y−42738−01−5B
Plate, fitting
Loading…
↗
17
62Y−42725−30
Grommet
Loading…
↗
17
62Y−42725−00
Grommet
Loading…
↗
18
62Y−42727−00
Grommet
Loading…
↗
41
97095−06020
FLUSHING KIT
Bolt(7u8)
Loading…
↗
42
92995−06600
FLUSHING KIT
Washer, plain (646)
Loading…
↗
21
62Y−42741−00−4D
Apron
Loading…
↗
22
95380−06600
Nut(661)
Loading…
↗
23
97880−06025
Screw, pan head(6b0)
Loading…
↗
24
92990−06100
Washer(6a1)
Loading…
↗
25
92990−06600
Washer, plain (646)
Loading…
↗
26
90109−06M80
Bolt
Loading…
↗
27
90480−13M24
Grommet (6e9)
Loading…
↗
28
90387−06M43
Coller (6e9)
Loading…
↗
29
61N−24329−00
Seal
Loading…
↗
30
6H3−42727−00
Grommet
Loading…
↗
31
6H1−42726−20
FOR FLUSHING KIT
Grommet
Loading…
↗
31
65W−42724−10
FOR FLUSHING KIT
Grommet
Loading…
↗
35
90464−09M43
Clamp(62y)
Loading…
↗
36
90338−05M03
Plug (6h1)
Loading…
↗
37
62Y−42748−00
Grommet
Loading…
↗
38
68T−12572−00
FLUSHING KIT
Adapter
Loading…
↗
39
6H1−12535−00
FLUSHING KIT
Plate
Loading…
↗
40
90167−06002
FLUSHING KIT
Screw, tapping
Loading…
↗
43
6R3−12580−00
FLUSHING KIT
Joint assembly
Loading…
↗
44
90445−14M41
FLUSHING KIT
Hose (L150)
Loading…
↗
45
62Y−82377−00
Label
Loading…
↗
46
62Y−13444−50
Mark
Loading…
↗
47
6A1−28176−00
Label, Caution
Loading…
↗
48
6E3−8257H−00
18 −
