F5AMH (2023)
BOTTOM COWLING

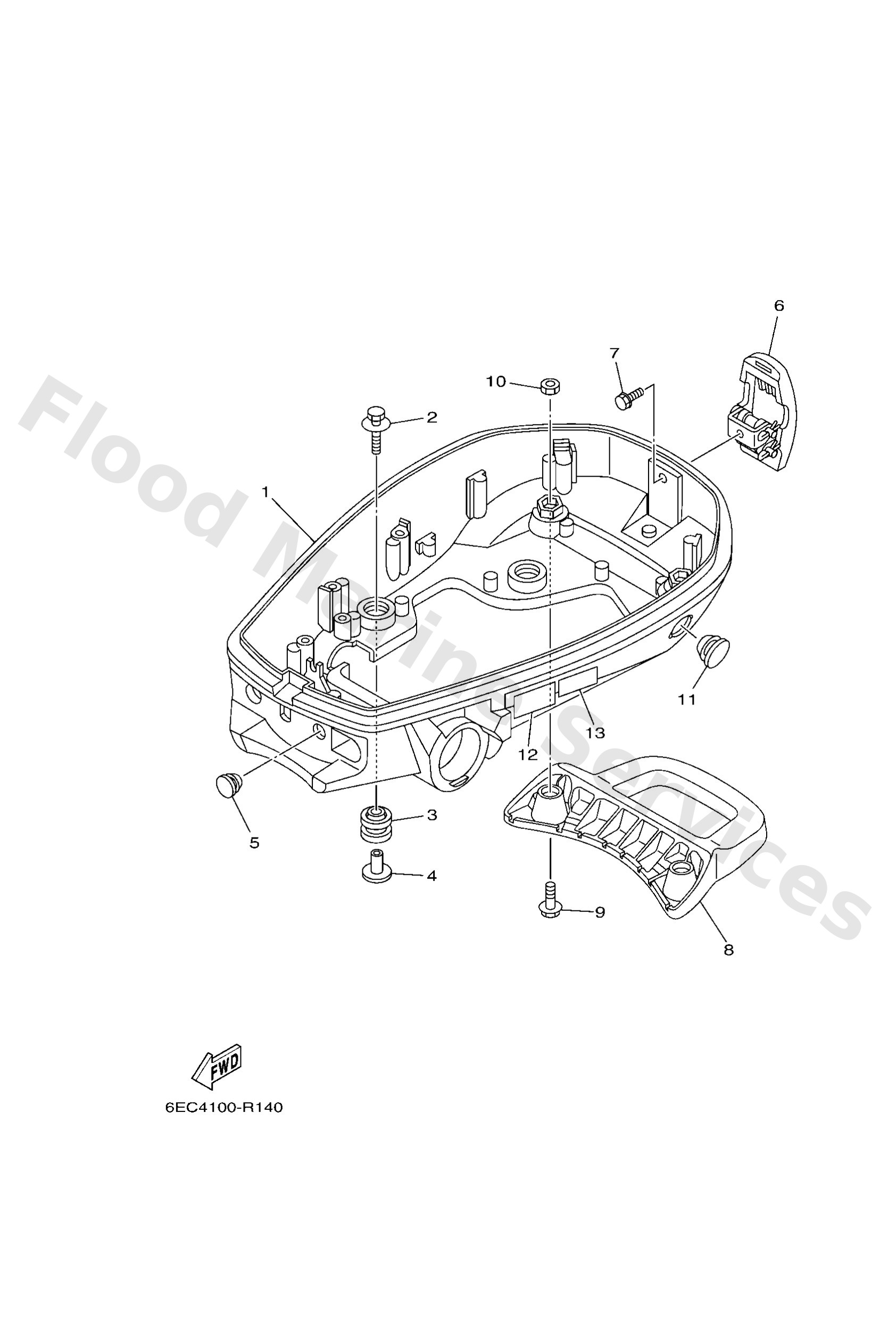

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6EEG2711008D
Cowling, bottom 1
Loading…
↗
2
9011906300
Bolt, with washer
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
9048014M14
Grommet (6e0)
Loading…
↗
6
68T4280100
Cowling clamp comp.
Loading…
↗
7
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
8
6EEG273100
Carrying handle
Loading…
↗
9
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9048022M72
Grommet
Loading…
↗
12
6EEG279450
Label, warning (ge
Loading…
↗
13
6EEE343761
Mark, caution
Loading…
↗
