F6AMH (2003)
BOTTOM COWLING

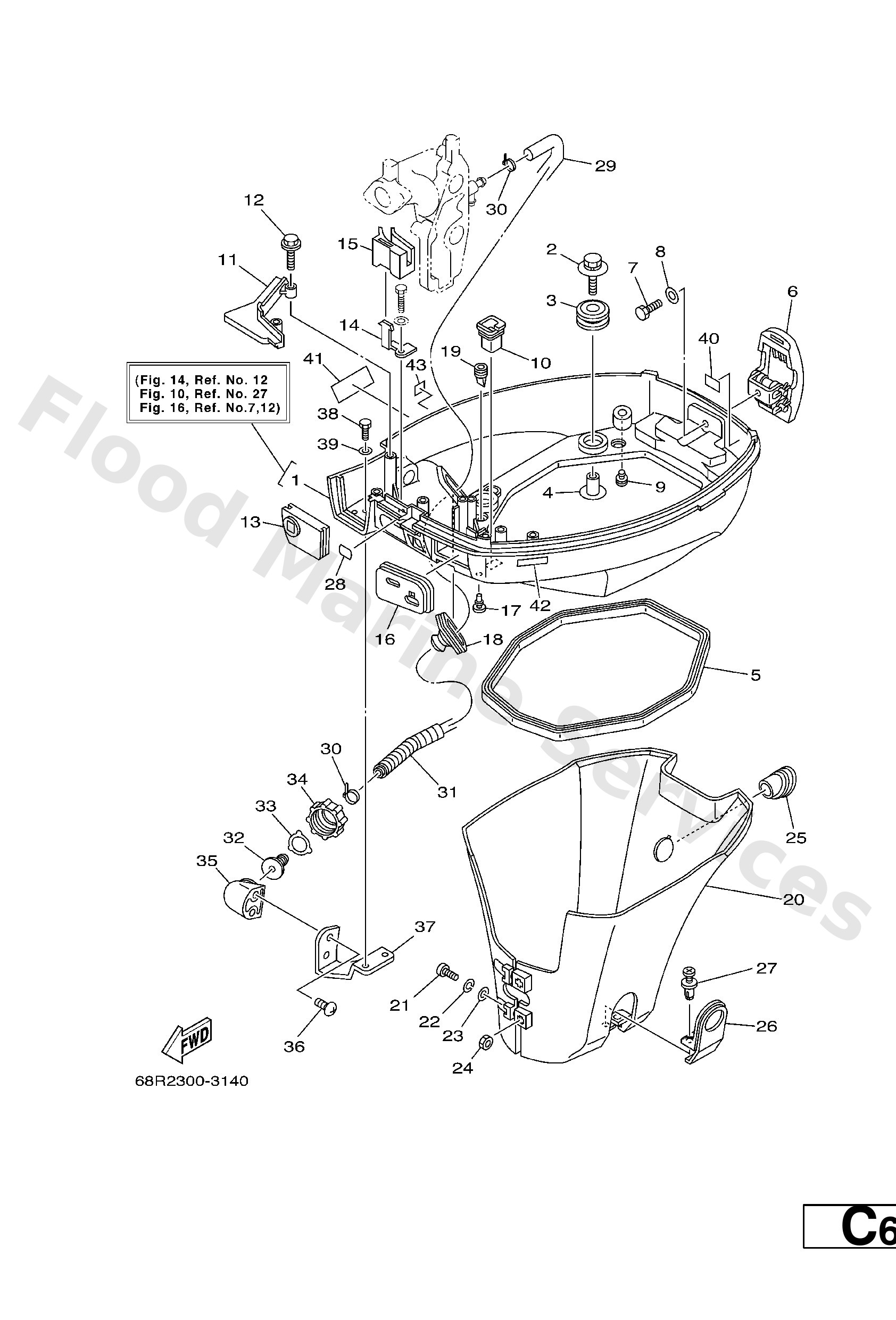

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68T−42710−00−4D
WITH TAPPING BOLT
Bottom Cowling assembly
Loading…
↗
2
68F−85119−00
Bolt
Loading…
↗
3
90480−21M82
Grommet
Loading…
↗
4
90387−06053
Collar
Loading…
↗
5
68T−42716−10
Rubber, seal 1
Loading…
↗
6
68T−42801−00
Cowling clamp comp.
Loading…
↗
7
97095−06012
Bolt(gh1)
Loading…
↗
39
92995−06600
FLUSHING KIT
Washer, plain (646)
Loading…
↗
9
6H3−44391−01
Nipple, hose
Loading…
↗
10
682−42727−00
Grommet
Loading…
↗
11
68T−42738−00−4D
Plate, fitting
Loading…
↗
12
90109−06M81
Bolt
Loading…
↗
13
68T−42725−00
Grommet
Loading…
↗
14
68T−26393−00
Holder
Loading…
↗
15
68T−26367−00
Protector
Loading…
↗
16
68T−42724−00
Grommet
Loading…
↗
17
90480−06M19
Grommet (6e3)
Loading…
↗
18
688−42726−10
FOR FLUSHING KIT
Grommet
Loading…
↗
19
65W−42717−00
Rubber, seal 2
Loading…
↗
20
68T−42741−00
Apron
Loading…
↗
21
97885−06030
Screw, pan head(6e0)
Loading…
↗
22
92995−06100
Washer(6a1)
Loading…
↗
24
95380−06600
Nut(661)
Loading…
↗
25
68T−42717−00
Rubber, seal 2
Loading…
↗
26
68T−42771−00
Apron
Loading…
↗
27
90338−06M20
Plug
Loading…
↗
28
65W−84342−00
Seat, emblem
Loading…
↗
29
6E5−12481−00
FLUSHING KIT
Pipe 1
Loading…
↗
30
90465−11M10
FLUSHING KIT
Clamp
Loading…
↗
31
90447−13M00
FLUSHING KIT
Hose, with spring
Loading…
↗
32
6R3−12582−00
FLUSHING KIT
Joint, hose 2
Loading…
↗
33
6R3−12583−00
FLUSHING KIT
Gasket, hose joint
Loading…
↗
34
6R3−12581−00
FLUSHING KIT
Joint, hose 1
Loading…
↗
35
68T−12572−00
FLUSHING KIT
Adapter
Loading…
↗
36
90167−06002
FLUSHING KIT
Screw, tapping
Loading…
↗
37
68T−12535−00
FLUSHING KIT
Plate
Loading…
↗
38
97095−06010
FLUSHING KIT
Bolt
Loading…
↗
40
6H8−42791−10
Mark 1
Loading…
↗
41
62Y−13444−50
Mark
Loading…
↗
42
6E3−8257H−00
Plate, Mark
Loading…
↗
43
6A1−28176−00
Label, Caution
Loading…
↗
