F80AET (2002)
BOTTOM COWLING

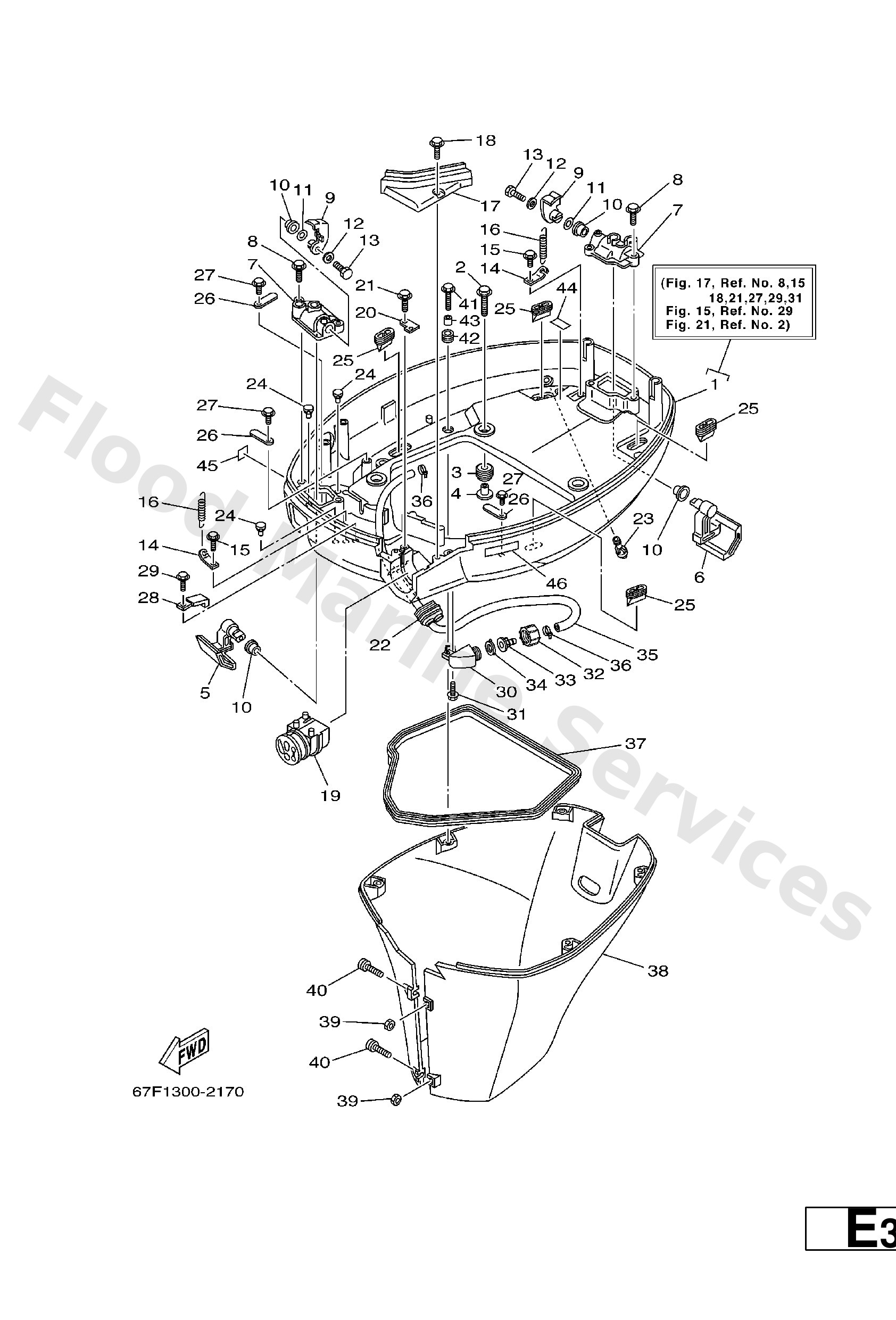

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
67F42710004D
Bottom cowling assembly
Loading…
↗
2
9011908M22
Bolt, with washer
Loading…
↗
3
9048022M15
Grommet (6e5)
Loading…
↗
4
9038708M37
Coller (6e5)
Loading…
↗
5
67F42815004D
Lever, clamp
Loading…
↗
6
67F42816004D
Lever, clamp
Loading…
↗
7
67F42828005B
Plate, clamp
Loading…
↗
8
9010906M82
Bolt
Loading…
↗
9
67F4281800
Lever, clamp
Loading…
↗
10
9038615M73
Bush(6l2)
Loading…
↗
11
9020615M18
Washer, wave(6l2)
Loading…
↗
12
9020106068
Washer,plate (6k8)
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
64D4314400
Hook, spring
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
9050616M34
Spring, tension(64d)
Loading…
↗
17
67F42738005B
Plate, fitting
Loading…
↗
18
9010906M96
Bolt
Loading…
↗
19
68V4272500
Grommet
Loading…
↗
20
67F4275600
Stay, clamp
Loading…
↗
22
6H14272620
FOR FLUSHING KIT
Grommet
Loading…
↗
23
6H34439101
Nipple, hose
Loading…
↗
24
6H44274800
Grommet
Loading…
↗
25
67F4271700
Rubber, seal 2
Loading…
↗
26
6E58258800
Plate
Loading…
↗
27
9010906M81
Bolt
Loading…
↗
28
9046508M23
Clamp (6h3)
Loading…
↗
30
67F1257200
FLUSHING KIT
Adapter
Loading…
↗
32
6R31258100
FLUSHING KIT
Joint, hose 1
Loading…
↗
33
6R31258200
FLUSHING KIT
Joint, hose 2
Loading…
↗
34
6R31258300
FLUSHING KIT
Gasket, hose joint
Loading…
↗
35
67F2431200
FLUSHING KIT
Pipe 2
Loading…
↗
36
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
37
61A4271600
Rubber seal 1
Loading…
↗
38
67F42741004D
Apron
Loading…
↗
39
9538006600
Nut(661)
Loading…
↗
40
9015906M28
Screw, with washer
Loading…
↗
41
9010906M80
Bolt
Loading…
↗
42
9048013M24
Grommet (6e9)
Loading…
↗
43
9038706M43
Coller (6e9)
Loading…
↗
44
67F8237700
Label (sparkplug mark)
Loading…
↗
45
6A12817600
Label, Caution
Loading…
↗
46
6E38257H00
Plate, Mark
Loading…
↗
