F8CMH (2013)
BOTTOM COWLING

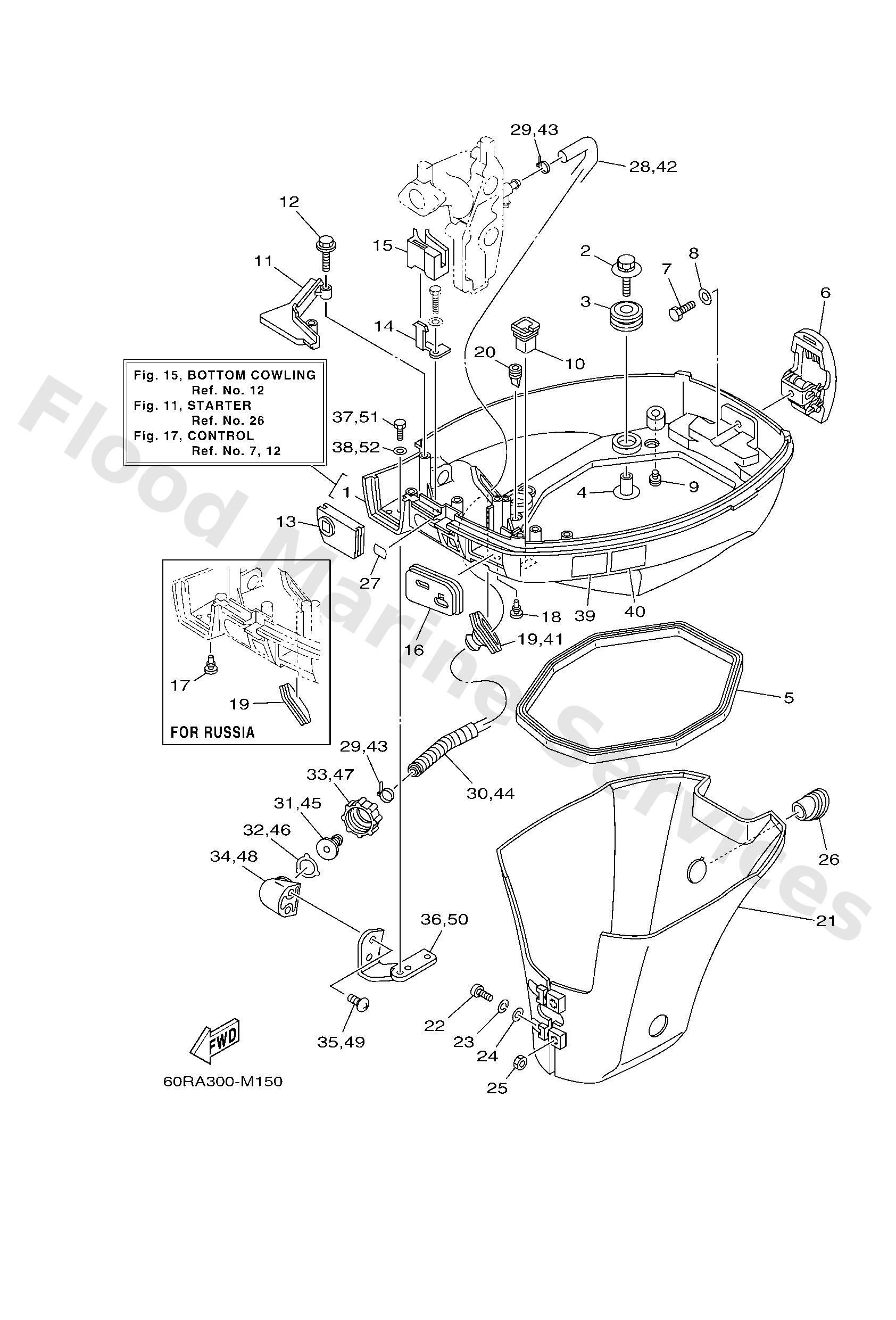

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
60RG2710004D
WITH TAPPING BOLT
Bottom cowling assembly
Loading…
↗
2
68F8511900
Bolt
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
68T4271610
Rubber, seal 1
Loading…
↗
6
68T4280100
Cowling clamp comp.
Loading…
↗
37
9709506012
FLUSHING KIT
Bolt(gh1)
Loading…
↗
38
9299506600
FLUSHING KIT
Washer, plain (646)
Loading…
↗
9
6BL4439100
Nipple, hose
Loading…
↗
10
6824272700
Grommet
Loading…
↗
11
68T42738004D
Plate, fitting
Loading…
↗
12
9010906M81
Bolt
Loading…
↗
13
68T4272500
Grommet
Loading…
↗
14
68T2639300
Holder
Loading…
↗
15
68T2636700
Protector
Loading…
↗
16
60RG272400
Grommet
Loading…
↗
17
9048006M19
FOR RUS
Grommet (6e3)
Loading…
↗
19
6884272610
FLUSHING KIT
Grommet
Loading…
↗
19
6H44272600
FOR RUS
Grommet
Loading…
↗
20
60SG271700
Rubber, seal 2
Loading…
↗
21
60RG274100
Apron
Loading…
↗
22
9788506030
Screw, pan head(6e0)
Loading…
↗
23
9299506100
Washer(6a1)
Loading…
↗
25
9538006600
Nut(661)
Loading…
↗
26
68T4271700
Rubber, seal 2
Loading…
↗
27
60RH434200
Seat, emblem
Loading…
↗
28
60SE248100
FLUSHING KIT
Pipe 1
Loading…
↗
29
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
30
9044713M00
FLUSHING KIT
Hose, with spring
Loading…
↗
31
6R31258200
FLUSHING KIT
Joint, hose 2
Loading…
↗
32
6R31258300
FLUSHING KIT
Gasket, hose joint
Loading…
↗
33
6R31258100
FLUSHING KIT
Joint, hose 1
Loading…
↗
34
68T1257200
FLUSHING KIT
Adapter
Loading…
↗
35
9016706002
FLUSHING KIT
Screw, tapping
Loading…
↗
36
68T1253520
FLUSHING KIT
Plate
Loading…
↗
39
6AH4279440
Label, warning (ge
Loading…
↗
40
6AH4279450
Label, warning (ge
Loading…
↗
