F9.9CE (2008)
BOTTOM COWLING

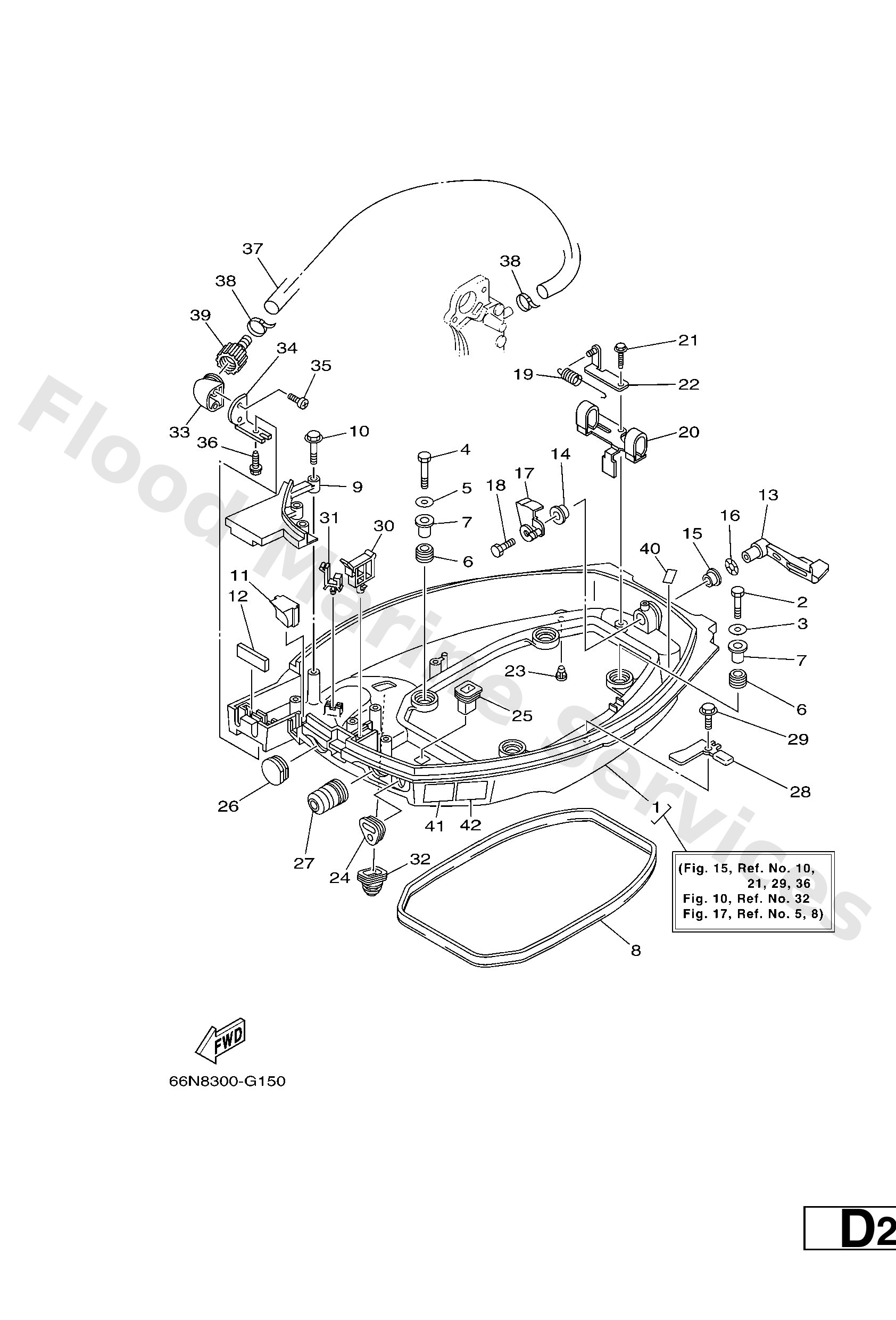

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
66M42710054D
WITH TAPPING BOLT
Bottom Cowling assembly
Loading…
↗
2
9709506035
Bolt(j52)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9709506025
Bolt
Loading…
↗
6
9048015M31
Grommet (6g1)
Loading…
↗
7
9038706034
Collar (6g1)
Loading…
↗
8
66M4271600
Rubber, seal 1
Loading…
↗
9
66M42738004D
Plate, fitting
Loading…
↗
10
9010906M82
Bolt
Loading…
↗
11
66M4272500
Grommet
Loading…
↗
11
66M4272520
Grommet
Loading…
↗
12
62Y4272700
Grommet
Loading…
↗
12
65W4272700
Grommet
Loading…
↗
13
6D442815004D
Lever, clamp 1
Loading…
↗
14
9038612M37
Bushing (6f5)
Loading…
↗
15
9038612MA2
Bush
Loading…
↗
16
9020612052
Washer, wave (666)
Loading…
↗
17
6D44281600
Lever, Clamp
Loading…
↗
18
9709506012
Bolt(gh1)
Loading…
↗
19
9050618010
Spring, Tension
Loading…
↗
20
6D44276600
Bracket 2
Loading…
↗
21
9010906M81
Bolt
Loading…
↗
22
6D44314400
Hook, Spring
Loading…
↗
23
6H34439101
Nipple, hose
Loading…
↗
24
66M2632600
Grommet
Loading…
↗
24
65W2632610
Grommet
Loading…
↗
25
6824272700
Grommet
Loading…
↗
26
6824272400
Grommet
Loading…
↗
27
65W4272600
Grommet
Loading…
↗
27
65W4272610
Grommet
Loading…
↗
28
66M4274300
Bracket
Loading…
↗
36
9010906M86
FLUSHING KIT
Bolt
Loading…
↗
30
9046525M57
Clamp(63v)
Loading…
↗
31
9046409M13
Clamp (6h1)
Loading…
↗
32
6884272610
FLUSHING KIT
Grommet
Loading…
↗
33
68T1257200
FLUSHING KIT
Adapter
Loading…
↗
34
69W1253500
FLUSHING KIT
Plate
Loading…
↗
35
9016706002
FLUSHING KIT
Screw, tapping
Loading…
↗
37
66M1248100
FLUSHING KIT
Pipe 1
Loading…
↗
38
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
39
6R31258000
FLUSHING KIT
Joint assembly
Loading…
↗
40
62Y8237700
Label
Loading…
↗
41
6AH4279440
Label, warning (ge
Loading…
↗
42
6AH4279450
Label, warning (ge
Loading…
↗
