F9.9HMH (2015)
BOTTOM COWLING

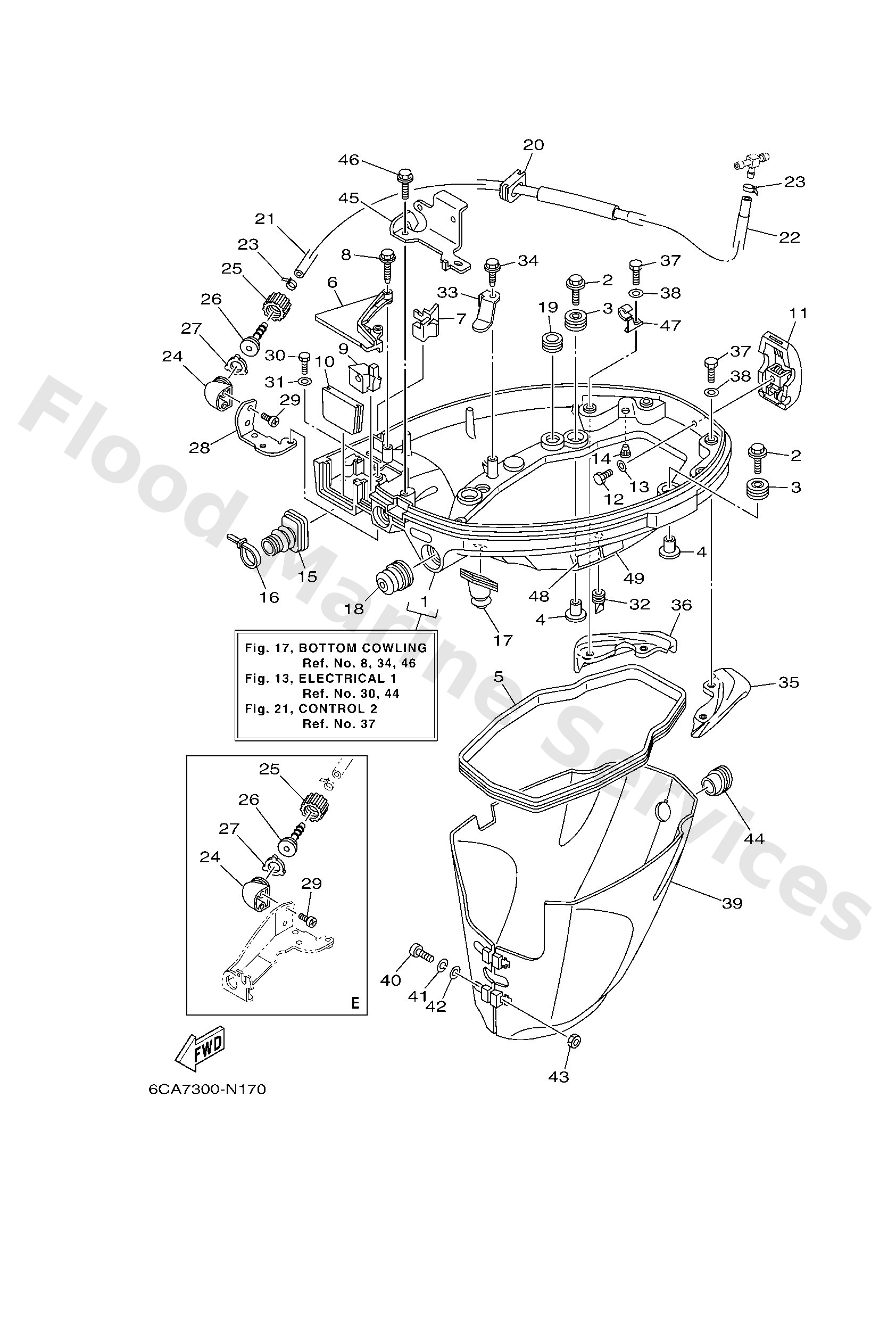

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6AH42710004D
Bottom cowling assembly
Loading…
↗
2
68F8511900
Bolt
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
6AH4271600
Rubber, seal 1
Loading…
↗
6
6AH42738004D
Plate, fitting
Loading…
↗
7
6AH4271800
Rubber, seal 3
Loading…
↗
8
9010906M82
Bolt
Loading…
↗
9
6AH4272500
Grommet
Loading…
↗
9
6AH4272520
Grommet
Loading…
↗
10
6AH4272400
Grommet
Loading…
↗
10
6AH4272410
Grommet
Loading…
↗
11
6AH4280100
Cowling clamp comp.
Loading…
↗
12
9709506012
Bolt(gh1)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
6BL4439100
Nipple, hose
Loading…
↗
15
6AH2632600
Grommet
Loading…
↗
15
6AH2632610
Grommet
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6AH4272700
Grommet
Loading…
↗
18
65W4272600
Grommet
Loading…
↗
18
65W4272610
Grommet
Loading…
↗
19
9048016007
Grommet
Loading…
↗
20
6AH4272600
Grommet
Loading…
↗
21
6AH2431401
Pipe 4
Loading…
↗
22
9044515003
Hose (l230)
Loading…
↗
24
6DR1257200
Adapter
Loading…
↗
25
6R31258100
Joint, hose 1
Loading…
↗
26
6R31258200
Joint, hose 2
Loading…
↗
27
6R31258300
Gasket, hose joint
Loading…
↗
28
6AH1253500
Plate
Loading…
↗
29
9016706002
Screw, tapping
Loading…
↗
30
9709506010
Bolt
Loading…
↗
32
65W4271700
Rubber, seal 2
Loading…
↗
33
6AH4274300
Bracket
Loading…
↗
34
9010906M86
Bolt
Loading…
↗
35
6AH42761A0
Stopper
Loading…
↗
36
6AH42762A0
Stopper
Loading…
↗
37
9707506012
Bolt(gh1)
Loading…
↗
39
6AH4274100
Apron
Loading…
↗
40
9788506030
Screw, pan head(6e0)
Loading…
↗
41
9299506100
Washer(6a1)
Loading…
↗
43
9538006600
Nut(661)
Loading…
↗
44
6AH4271700
Rubber, seal 2
Loading…
↗
45
6AH1577400
Stay 4
Loading…
↗
47
9046508M82
Clamp
Loading…
↗
48
6EE4279440
Label, warning (general)
Loading…
↗
49
6EE4279450
Label, warning (general)
Loading…
↗
