F9.9HWH1 (2024)
BOTTOM COWLING

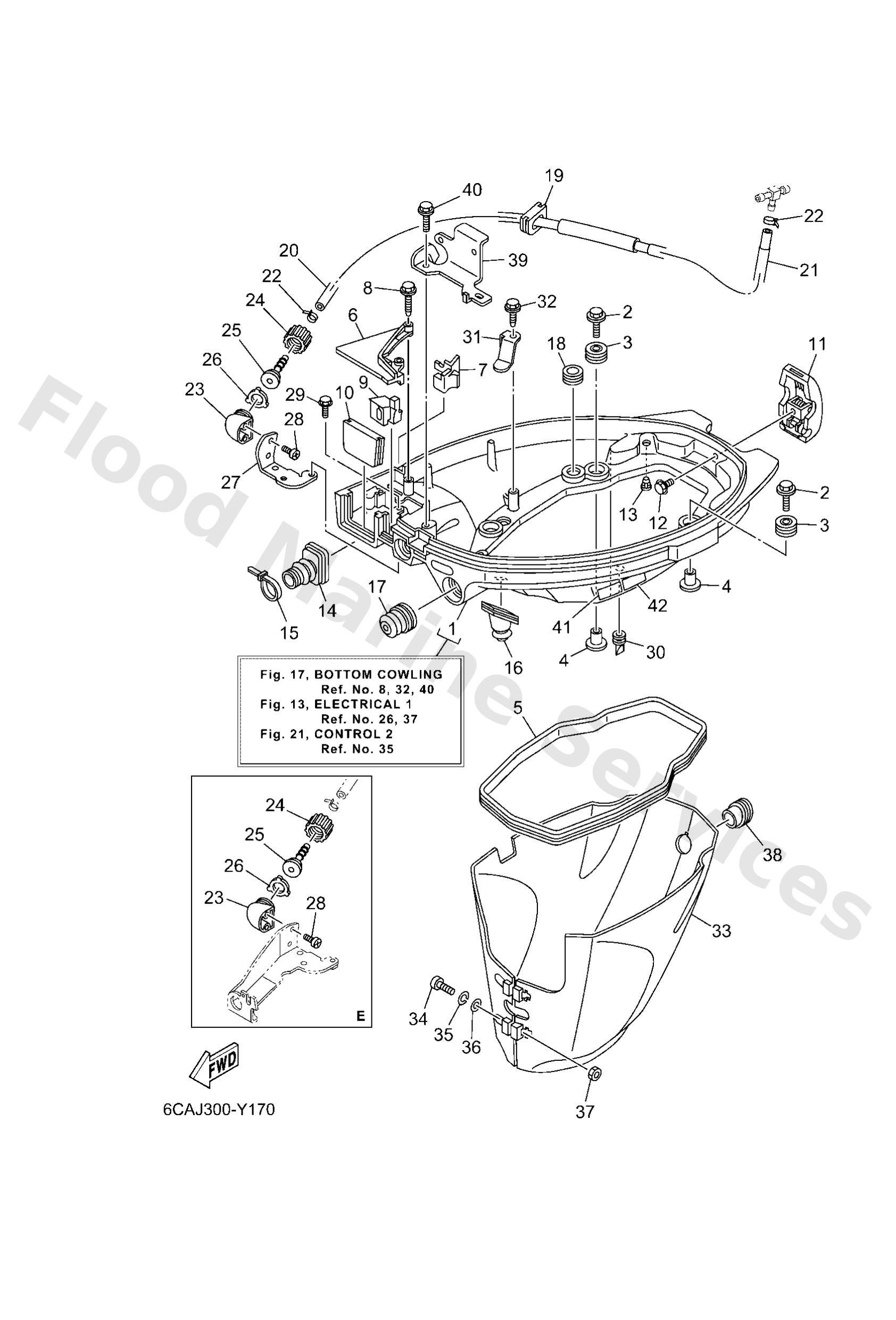

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6AH42710208D
Bottom cowling assembly
Loading…
↗
2
9011906291
Bolt, with washer
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
6AH4271600
Rubber, seal 1
Loading…
↗
6
6AH42738008D
Plate, fitting
Loading…
↗
7
6AH4271801
Rubber, seal 3
Loading…
↗
8
9010906M82
Bolt
Loading…
↗
9
6AH4272521
Grommet
Loading…
↗
9
6AH4272511
Grommet
Loading…
↗
9
6AH4272501
Grommet
Loading…
↗
10
6AH4272411
Grommet
Loading…
↗
10
6AH4272401
Grommet
Loading…
↗
11
6AH4280100
Cowling clamp comp.
Loading…
↗
12
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
13
6BL4439100
Nipple, hose
Loading…
↗
14
6AH2632611
Grommet
Loading…
↗
14
6AH2632601
Grommet
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6AH4272701
Grommet
Loading…
↗
17
65W4272611
Grommet
Loading…
↗
17
65W4272601
Grommet
Loading…
↗
18
9048016007
Grommet
Loading…
↗
19
6AH4272601
Grommet
Loading…
↗
20
6AH2431401
Pipe 4
Loading…
↗
21
9044515003
Hose (l230)
Loading…
↗
23
6DR1257200
Adapter
Loading…
↗
24
6R31258100
Joint, hose 1
Loading…
↗
25
6R31258200
Joint, hose 2
Loading…
↗
26
6R31258300
Gasket, hose joint
Loading…
↗
27
6AH1253500
Plate
Loading…
↗
28
9016706002
Screw, tapping
Loading…
↗
29
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
30
65W4271700
Rubber, seal 2
Loading…
↗
31
6AH4274300
Bracket
Loading…
↗
32
9010906M86
Bolt
Loading…
↗
33
6AH4274100
Apron
Loading…
↗
34
9788506030
Screw, pan head(6e0)
Loading…
↗
35
9299506100
Washer(6a1)
Loading…
↗
36
9299506600
Washer, plain (646)
Loading…
↗
37
9538006600
Nut(661)
Loading…
↗
38
6AH4271701
Rubber, seal 2
Loading…
↗
39
6AH1577400
Stay 4
Loading…
↗
41
6EE4279440
Label, warning (general)
Loading…
↗
42
6EE4279450
Label, warning (general)
Loading…
↗
