F9.9JMH (2014)
BOTTOM COWLING

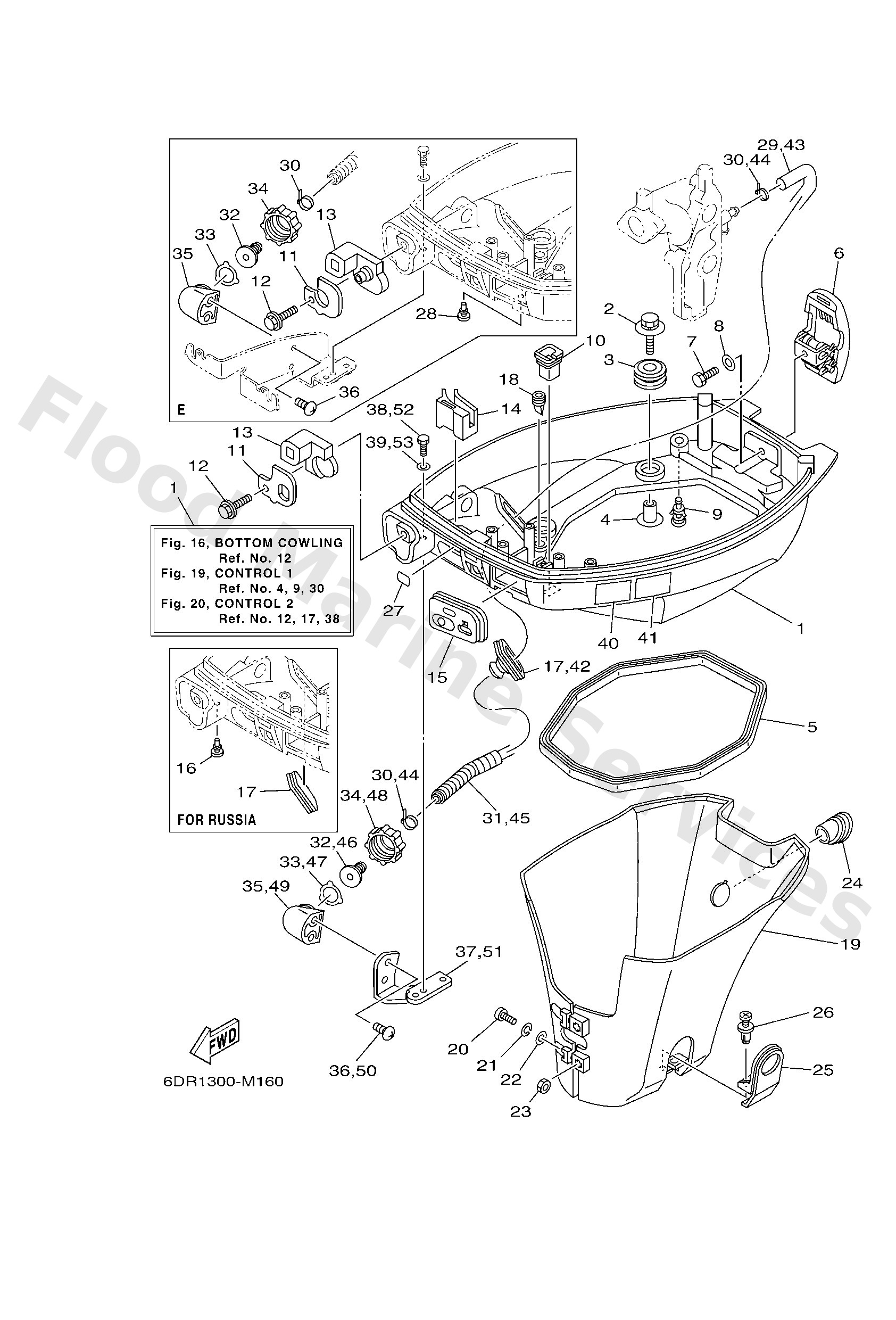

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6DR42710004D
Bottom cowling assembly
Loading…
↗
2
68F8511900
Bolt
Loading…
↗
3
9048021M82
Grommet
Loading…
↗
4
9038706176
Collar
Loading…
↗
5
68T4271610
Rubber, seal 1
Loading…
↗
6
6AU4280100
Cowling clamp comp.
Loading…
↗
38
9709506012
EUR-FLUSHING KIT
Bolt(gh1)
Loading…
↗
39
9299506600
EUR-FLUSHING KIT
Washer, plain (646)
Loading…
↗
9
6BL4439100
Nipple, hose
Loading…
↗
10
6824272700
Grommet
Loading…
↗
11
6DR4276100
Stopper
Loading…
↗
11
6DR4276110
Stopper
Loading…
↗
12
9010906M86
Bolt
Loading…
↗
13
6DR4272500
Grommet
Loading…
↗
13
6DR4272510
Grommet
Loading…
↗
14
68T2636700
Protector
Loading…
↗
15
68T4272420
Grommet
Loading…
↗
16
9048006M19
FOR RUS
Grommet (6e3)
Loading…
↗
17
6H44272600
FOR RUS
Grommet
Loading…
↗
17
6884272610
EUR-FLUSHING KIT
Grommet
Loading…
↗
18
65W4271700
Rubber, seal 2
Loading…
↗
19
68T4274100
Apron
Loading…
↗
20
9788506030
Screw, pan head(6e0)
Loading…
↗
21
9299506100
Washer(6a1)
Loading…
↗
23
9538006600
Nut(661)
Loading…
↗
24
68T4271700
Rubber, seal 2
Loading…
↗
25
68T4277100
Apron
Loading…
↗
26
9033806M20
Plug
Loading…
↗
27
65W8434200
Seat, emblem
Loading…
↗
29
6E51248100
EUR-FLUSHING KIT
Pipe 1
Loading…
↗
30
9046511M10
EUR-FLUSHING KIT
Clamp
Loading…
↗
31
9044713M00
EUR-FLUSHING KIT
Hose, with spring
Loading…
↗
32
6R31258200
EUR-FLUSHING KIT
Joint, hose 2
Loading…
↗
33
6R31258300
EUR-FLUSHING KIT
Gasket, hose joint
Loading…
↗
34
6R31258100
EUR-FLUSHING KIT
Joint, hose 1
Loading…
↗
35
6DR1257200
EUR-FLUSHING KIT
Adapter
Loading…
↗
36
9016706002
EUR-FLUSHING KIT
Screw, tapping
Loading…
↗
37
68T1253520
EUR-FLUSHING KIT
Plate
Loading…
↗
40
6AH4279440
Label, warning (ge
Loading…
↗
41
6AH4279450
Label, warning (ge
Loading…
↗
