FL115AET (2002)
BOTTOM COWLING

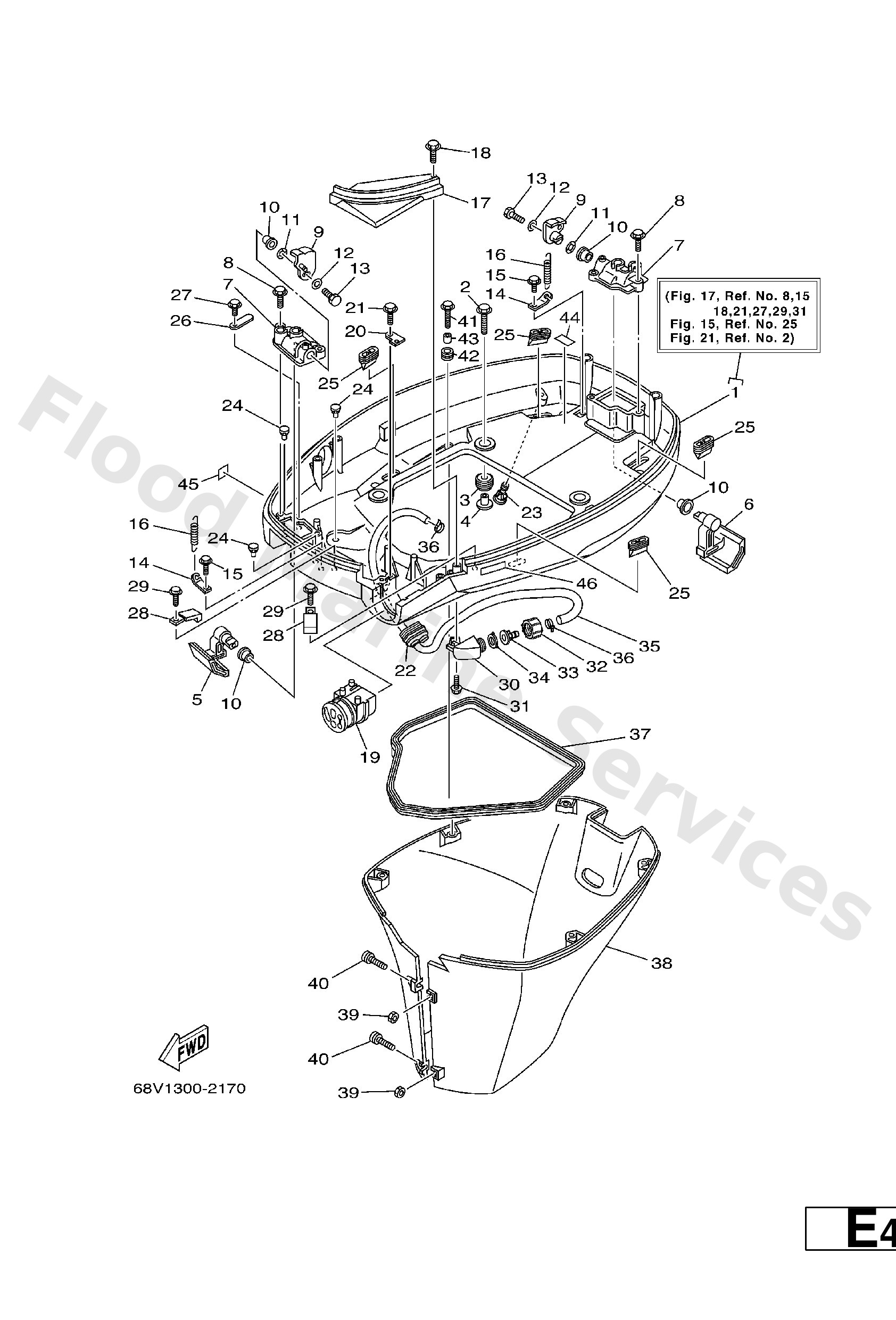

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68V−42710−00−8D
Bottom cowling assembly
Loading…
↗
2
90119−08M22
Bolt, with washer
Loading…
↗
3
90480−22M15
Grommet (6e5)
Loading…
↗
4
90387−08M37
Coller (6e5)
Loading…
↗
5
67F−42815−00−8D
Lever, clamp
Loading…
↗
6
67F−42816−00−8D
Lever, clamp
Loading…
↗
7
67F−42828−00−5B
Plate, clamp
Loading…
↗
8
90109−06M82
Bolt
Loading…
↗
9
68V−42818−00
Lever, clamp
Loading…
↗
10
90386−15M73
Bush(6l2)
Loading…
↗
11
90206−15M18
Washer, wave(6l2)
Loading…
↗
12
90201−06068
Washer,plate (6k8)
Loading…
↗
13
97095−06016
Bolt, hexagon deep recess
Loading…
↗
14
64D−43144−00
Hook, spring
Loading…
↗
15
90109−06M80
Bolt
Loading…
↗
16
90506−16M34
Spring, tension(64d)
Loading…
↗
17
68V−42738−00−5B
Plate, fitting
Loading…
↗
19
68V−42725−00
Grommet
Loading…
↗
20
67F−42756−00
Stay, clamp
Loading…
↗
21
90109−06M86
Bolt
Loading…
↗
22
6H1−42726−20
FLUSHING KIT
Grommet
Loading…
↗
23
6H3−44391−01
Nipple, hose
Loading…
↗
24
6H4−42748−00
Grommet
Loading…
↗
25
67F−42717−00
Rubber, seal 2
Loading…
↗
26
6E5−82588−00
Plate
Loading…
↗
27
90109−06M81
Bolt
Loading…
↗
28
90465−08M23
Clamp (6h3)
Loading…
↗
30
67F−12572−00
FLUSHING KIT
Adapter
Loading…
↗
32
6R3−12581−00
FLUSHING KIT
Joint, hose 1
Loading…
↗
33
6R3−12582−00
FLUSHING KIT
Joint, hose 2
Loading…
↗
34
6R3−12583−00
FLUSHING KIT
Gasket, hose joint
Loading…
↗
35
68V−24312−00
FLUSHING KIT
Pipe 2
Loading…
↗
36
90465−11M10
FLUSHING KIT
Clamp
Loading…
↗
37
61A−42716−00
Rubber seal 1
Loading…
↗
38
67F−42741−00−8D
Apron
Loading…
↗
39
95380−06600
Nut(661)
Loading…
↗
40
90159−06M28
Screw, with washer
Loading…
↗
42
90480−13M24
Grommet (6e9)
Loading…
↗
43
90387−06M43
Coller (6e9)
Loading…
↗
44
68V−82377−00
Label
Loading…
↗
45
6A1−28176−00
Label, Caution
Loading…
↗
46
6E3−8257H−00
Plate, Mark
Loading…
↗
