FL150AET (2013)
BOTTOM COWLING

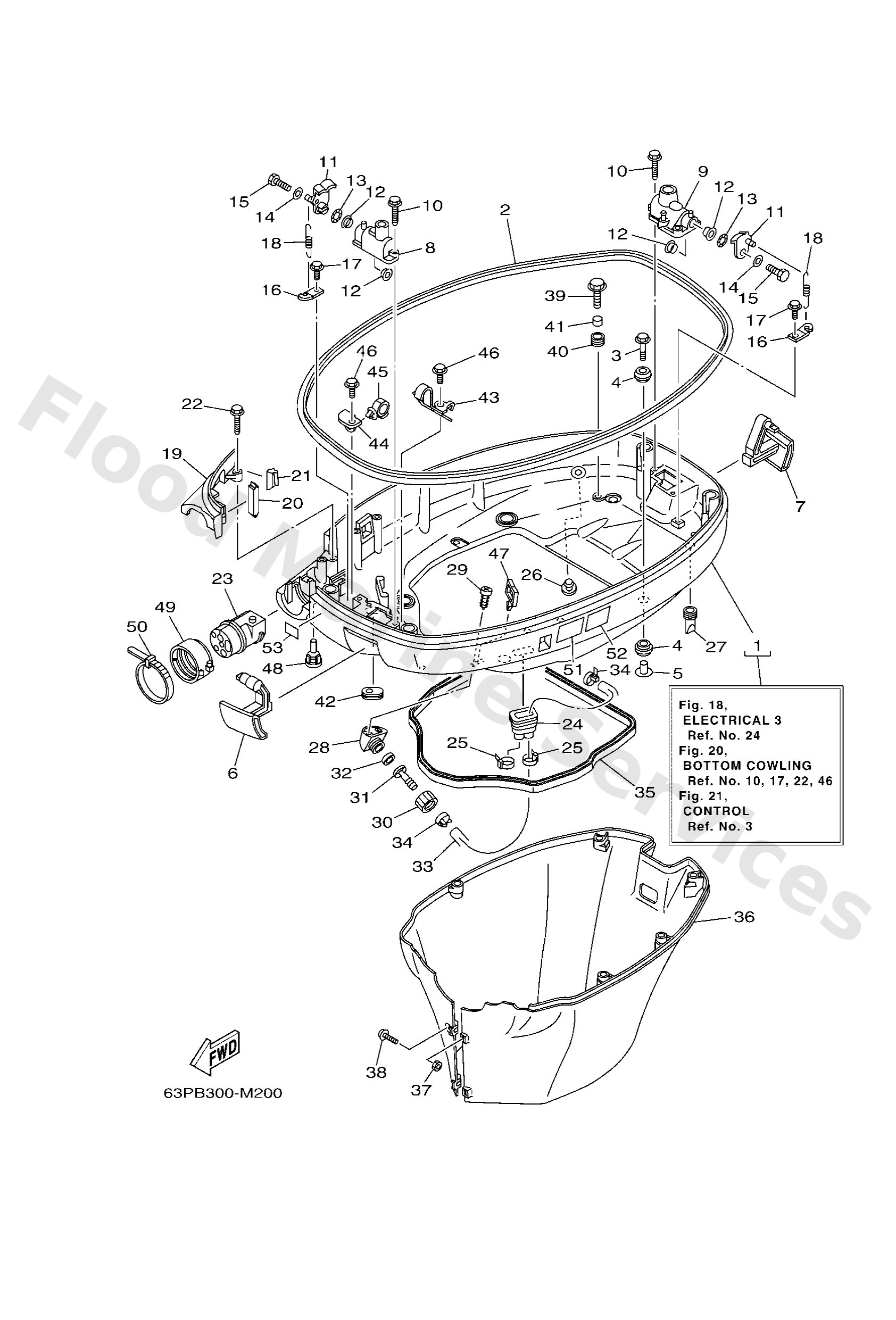

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
63P42710018D
Bottom cowling assembly
Loading…
↗
2
63P4261500
Seal
Loading…
↗
3
9011908M22
Bolt, with washer
Loading…
↗
4
9048022M81
Grommet
Loading…
↗
5
9038708M37
Coller (6e5)
Loading…
↗
6
63P42815008D
Lever, clamp
Loading…
↗
7
63P42816008D
Lever, clamp
Loading…
↗
8
68F42828039S
Plate, clamp
Loading…
↗
9
63P42828009S
Plate, clamp
Loading…
↗
10
9010906M82
Bolt
Loading…
↗
11
63P4281801
Lever, clamp
Loading…
↗
12
9038615M73
Bush(6l2)
Loading…
↗
13
9020615M18
Washer, wave(6l2)
Loading…
↗
14
9020106068
Washer,plate (6k8)
Loading…
↗
15
9709506020
Bolt(7u8)
Loading…
↗
16
64D4314400
Hook, spring
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
9050616M34
Spring, tension(64d)
Loading…
↗
19
63P42738008D
Plate, fitting
Loading…
↗
20
63P4271700
Rubber, seal 2
Loading…
↗
21
63P4271800
Rubber, seal 3
Loading…
↗
23
63P4272500
Grommet
Loading…
↗
24
6H14272621
Grommet
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
26
6P24439100
Nipple, hose
Loading…
↗
27
61A4271700
Rubber, seal 2
Loading…
↗
28
68T1257200
Adapter
Loading…
↗
29
9778060520
Screw, tapping(6k8)
Loading…
↗
30
6R31258100
Joint, hose 1
Loading…
↗
31
6R31258200
Joint, hose 2
Loading…
↗
32
6R31258300
Gasket, hose joint
Loading…
↗
33
63P4254100
Pipe 1
Loading…
↗
35
63P4271600
Rubber seal 1
Loading…
↗
36
63P42741018D
Apron
Loading…
↗
37
9538006600
Nut(661)
Loading…
↗
38
9015906M28
Screw, with washer
Loading…
↗
39
9010906M80
Bolt
Loading…
↗
40
9048013M24
Grommet (6e9)
Loading…
↗
41
9038706M43
Coller (6e9)
Loading…
↗
42
61A4272700
Grommet
Loading…
↗
43
63P4281101
Stay
Loading…
↗
44
63P4275600
Stay, clamp
Loading…
↗
45
9046420181
Clamp(4ap)
Loading…
↗
47
9046423199
Clamp(4hm)
Loading…
↗
48
6H44274800
Grommet
Loading…
↗
49
68F4275300
AP
Fastner
Loading…
↗
50
9046420258
AP
Clamp
Loading…
↗
51
6AH4279440
Label, warning (ge
Loading…
↗
52
6AH4279450
Label, warning (ge
Loading…
↗
53
6AH8199600
Mark
Loading…
↗
