FT25BET (2002)
BOTTOM COWLING

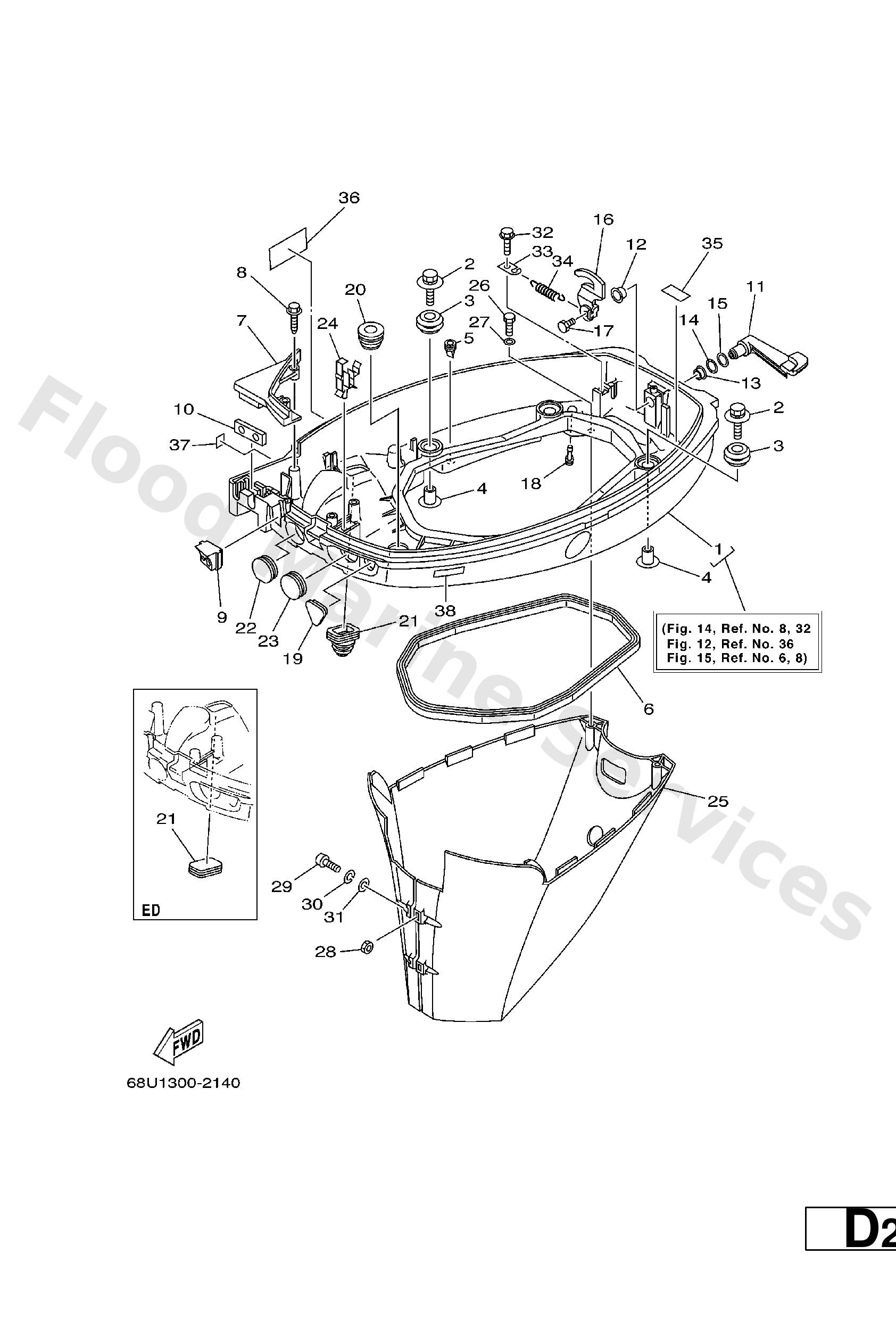

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
2
90119--06M08
Bolt, with washer
Loading…
↗
3
90480--09M12
Grommet (6a0)
Loading…
↗
4
90387--06M69
Collar (688)
Loading…
↗
5
65W--42717--00
Rubber, seal 2
Loading…
↗
6
62Y--42716--00
Rubber seal 1
Loading…
↗
8
90109--06M82
Bolt
Loading…
↗
9
65W4272521
Grommet
Loading…
↗
10
62Y--42727--00
Grommet
Loading…
↗
12
90386--12M37
Bushing (6f5)
Loading…
↗
13
90386--12MA2
Bush
Loading…
↗
14
90206--12052
Washer, wave (666)
Loading…
↗
15
90201--12M07
Washer, plate
Loading…
↗
16
65W4281603
Lever, Clamp
Loading…
↗
17
97095--06012
Bolt(gh1)
Loading…
↗
18
6H3--44391--01
Nipple, hose
Loading…
↗
19
65W--26326--10
Grommet
Loading…
↗
20
68U--42727--00
Grommet
Loading…
↗
21
65W--42724--10
Grommet
Loading…
↗
21
6H4--42726--00
Grommet
Loading…
↗
22
6G1--42725--00
Grommet
Loading…
↗
23
65W--42726--10
Grommet
Loading…
↗
24
90465--25M57
Clamp(63v)
Loading…
↗
26
97095--06014
Bolt(gj3)
Loading…
↗
27
92995--06600
Washer, plain (646)
Loading…
↗
28
95380--06600
Nut(661)
Loading…
↗
29
97880--06025
Screw, pan head(6b0)
Loading…
↗
30
92990--06100
Washer(6a1)
Loading…
↗
31
92990--06600
Washer, plain (646)
Loading…
↗
32
90109--06M86
Bolt
Loading…
↗
33
66T--43144--00
Hook, spring
Loading…
↗
34
90506--16M34
Spring, tension(64d)
Loading…
↗
35
62Y--82377--00
Label
Loading…
↗
36
6G8--13444--51
Mark
Loading…
↗
37
6A1--28176--00
Label, Caution
Loading…
↗
38
6E3--8257H--00
Plate, Mark
Loading…
↗
