FT9.9DMH (2002)
BOTTOM COWLING

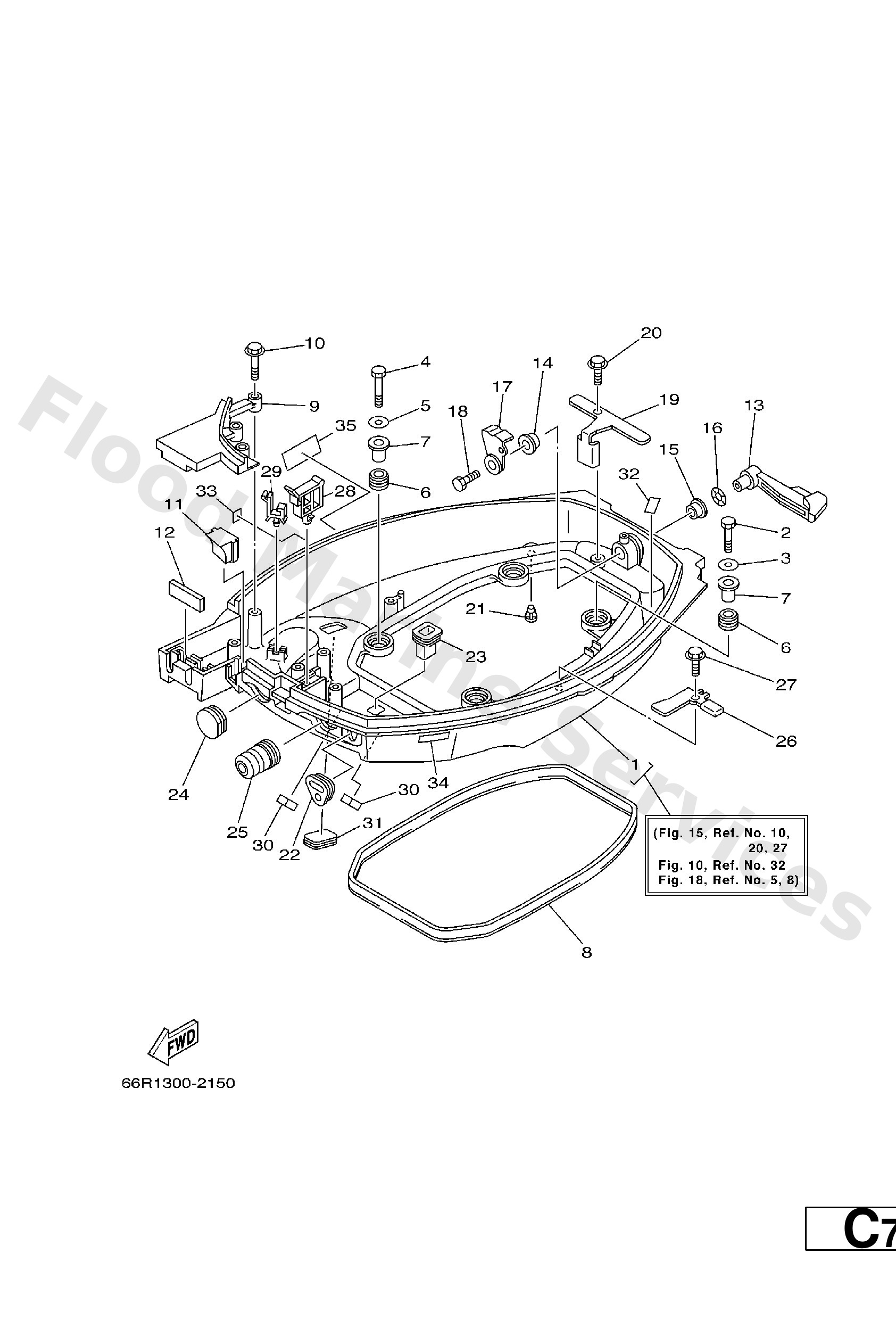

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
66M−42710−03−4D
Bottom Cowling assembly
Loading…
↗
2
97095−06035
Bolt(j52)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
97095−06025
Bolt
Loading…
↗
6
90480−15M31
Grommet (6g1)
Loading…
↗
7
90387−06M52
Collar (6g1)
Loading…
↗
8
66M−42716−00
Rubber, seal 1
Loading…
↗
9
66M−42738−00−4D
Plate, fitting
Loading…
↗
10
90109−06M82
Bolt
Loading…
↗
11
66M−42725−20
Grommet
Loading…
↗
11
66M−42725−00
Grommet
Loading…
↗
12
65W−42727−00
Grommet
Loading…
↗
12
62Y−42727−00
Grommet
Loading…
↗
13
66M−42815−00−4D
Lever, clamp 1
Loading…
↗
14
90386−12M37
Bushing (6f5)
Loading…
↗
15
90386−12MA2
Bush
Loading…
↗
16
90206−12052
Washer, wave (666)
Loading…
↗
17
6L2−42816−00
Lever, clamp
Loading…
↗
18
97095−06012
Bolt(gh1)
Loading…
↗
19
66M−42766−00
Bracket 2
Loading…
↗
20
90109−06M86
Bolt
Loading…
↗
21
6H3−44391−01
Nipple, hose
Loading…
↗
22
66M−26326−00
Grommet
Loading…
↗
22
65W−26326−10
Grommet
Loading…
↗
23
682−42727−00
Grommet
Loading…
↗
24
682−42724−00
Grommet
Loading…
↗
25
65W−42726−00
Grommet
Loading…
↗
25
65W−42726−10
Grommet
Loading…
↗
26
66M−42743−00
Bracket
Loading…
↗
28
90465−25M57
Clamp(63v)
Loading…
↗
29
90464−09M13
Clamp (6h1)
Loading…
↗
30
66R−44532−00
15 −
Loading…
↗
31
6H4−42726−00
Grommet
Loading…
↗
32
62Y−82377−00
Label
Loading…
↗
33
6A1−28176−00
Label, Caution
Loading…
↗
34
6E3−8257H−00
Plate, Mark
Loading…
↗
35
6G8−13444−51
Mark
Loading…
↗
