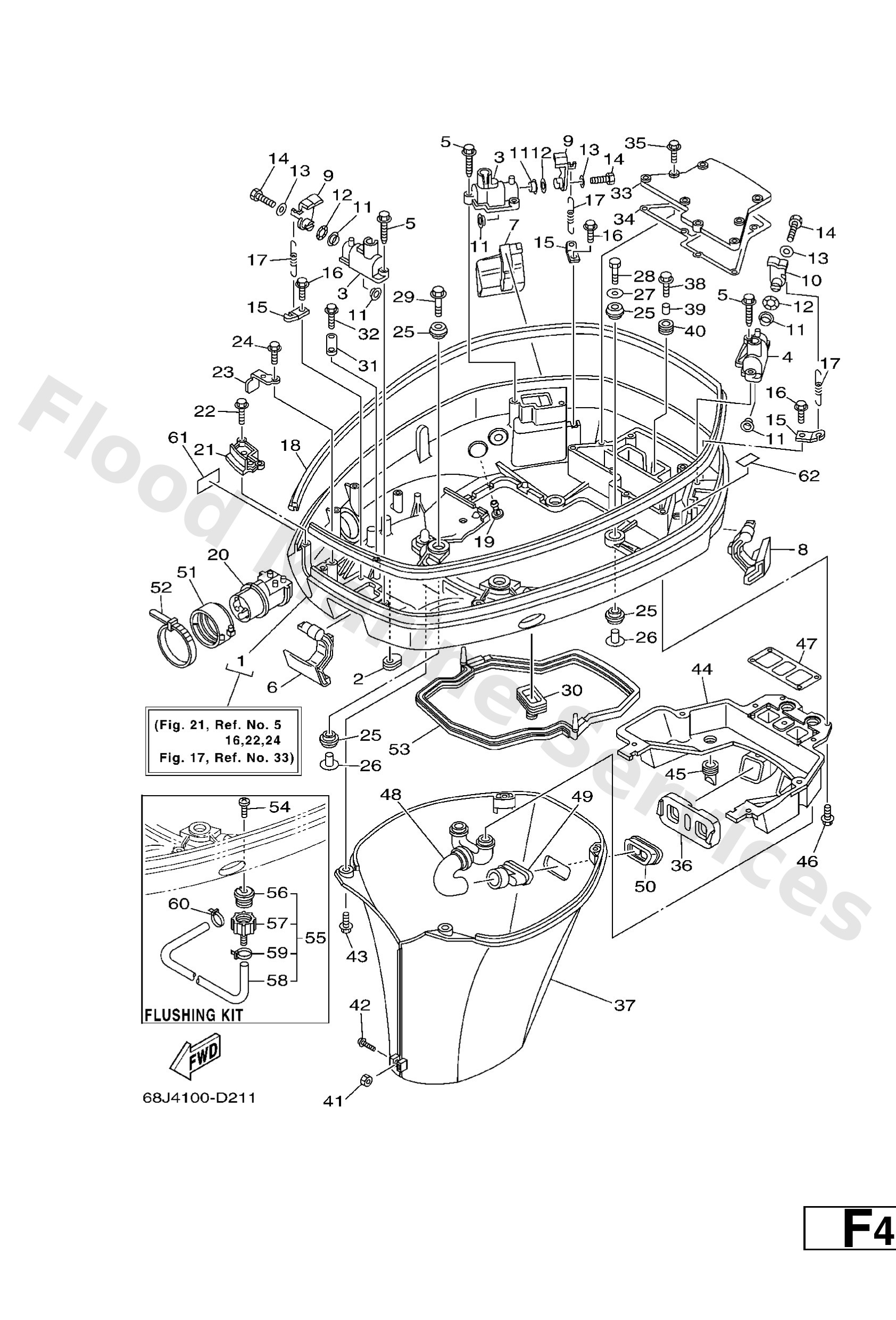

Diagram: BOTTOM COWLING

Diagram

Parts List

Reference
Description
Price


1
68F42710108D
-
Loading…

↗
2
61A4272700
Grommet
Loading…

↗
3
68F428280094
Plate, clamp
Loading…

↗
4
68F428281094
Plate, clamp
Loading…

↗
5
9010906M82
Bolt
Loading…

↗
6
68F42815008D
Lever, clamp
Loading…

↗
7
68F42816008D
Lever, clamp
Loading…

↗
8
68F42817008D
Lever, clamp
Loading…

↗
9
68F4281801
Lever, clamp
Loading…

↗
10
6D84281800
Lever, clamp
Loading…

↗
11
9038615M73
Bush(6l2)
Loading…

↗
12
9020615M18
Washer, wave(6l2)
Loading…

↗
13
9020106068
Washer,plate (6k8)
Loading…

↗
14
9709506016
Bolt, hexagon deep recess
Loading…

↗
15
64D4314400
Hook, spring
Loading…

↗
16
9010906M80
Bolt
Loading…

↗
17
9050616M34
Spring, tension(64d)
Loading…

↗
18
68F4261500
Seal
Loading…

↗
19
6E54439100
Nipple, hose
Loading…

↗
20
68F4272501
Grommet
Loading…

↗
21
68F42738005B
Plate, fitting
Loading…

↗
22
9010906M86
Bolt
Loading…

↗
23
64D42738105B
Plate, fitting
Loading…

↗
25
9048022M81
Grommet
Loading…

↗
26
9038708M37
Coller (6e5)
Loading…

↗
27
9020108M54
Washer, plate (6e5)
Loading…

↗
28
9707508035
Bolt(70w)
Loading…

↗
29
9011908M22
Bolt, with washer
Loading…

↗
30
6884272610
Grommet
Loading…

↗
31
6E58258800
Plate
Loading…

↗
32
9589506020
Bolt, flange(jk3)
Loading…

↗
33
68F427230094
Cover, bottom
Loading…

↗
34
68F4272100
Gasket 1
Loading…

↗
36
68F4276900
Seal, Rubber
Loading…

↗
37
68F42741004D L
Apron
Loading…

↗
38
9011906077
Bolt, with washer
Loading…

↗
39
9038706M43
Coller (6e9)
Loading…

↗
40
9048013M24
Grommet (6e9)
Loading…

↗
41
9538006600
Nut(661)
Loading…

↗
42
9015906M03
Screw (6g5)
Loading…

↗
43
9589506016
Bolt, flange deep recess
Loading…

↗
44
68F4277100
Apron
Loading…

↗
45
61A4271700
Rubber, seal 2
Loading…

↗
47
68F4272200
Gasket 2
Loading…

↗
48
68F1257700 L
Hose 2
Loading…

↗
49
68F1258201 L
Joint, hose 2
Loading…

↗
50
68F4271800
Rubber, seal 3
Loading…

↗
51
68F4275300 AP
Fastner
Loading…

↗
52
9046420258 AP
Clamp
Loading…

↗
53
6E54271610
Rubber seal 1
Loading…

↗
54
9016905M00
Screw truss head tapping
Loading…

↗
55
6R3Y125J70
Flushing kit
Loading…

↗
56
6R31257200
Adapter
Loading…

↗
57
6R31258000
Joint assembly
Loading…

↗
58
9044511M35
Hose (l700)
Loading…

↗
59
9046511M10
Clamp
Loading…

↗
61
68F2415E40 FOR USA,OCE
Label,Caution
Loading…

↗
61
68F2415E60 FOR CAN
Label, Caution
Loading…

↗
62
68H4279101
Mark 1
Loading…

↗
62
68F4279101
Mark 1
Loading…

↗
