Z200PETO (2007)
BOTTOM COWLING

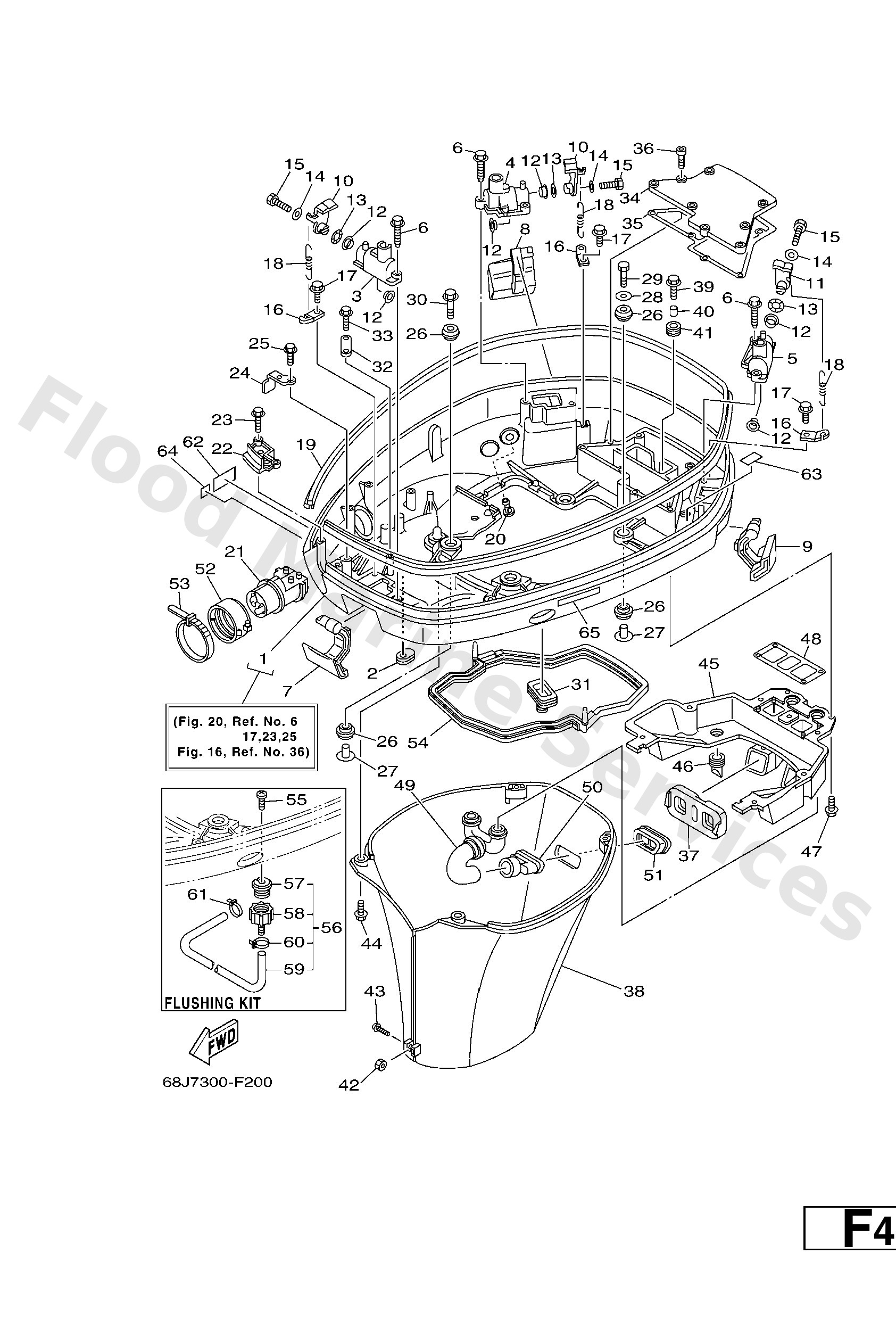

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68F42710108D
-
Loading…
↗
2
61A4272700
Grommet
Loading…
↗
3
68F428280394
Plate, clamp
Loading…
↗
4
68F428282094
Plate, clamp
Loading…
↗
5
68F428281094
Plate, clamp
Loading…
↗
6
9010906M82
Bolt
Loading…
↗
7
68F42815008D
Lever, clamp
Loading…
↗
8
68F42816008D
Lever, clamp
Loading…
↗
9
68F42817008D
Lever, clamp
Loading…
↗
10
68F4281801
Lever, clamp
Loading…
↗
11
6D84281800
Lever, clamp
Loading…
↗
12
9038615M73
Bush(6l2)
Loading…
↗
13
9020615M18
Washer, wave(6l2)
Loading…
↗
14
9020106068
Washer,plate (6k8)
Loading…
↗
15
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
64D4314400
Hook, spring
Loading…
↗
17
9010906M80
Bolt
Loading…
↗
18
9050616M34
Spring, tension(64d)
Loading…
↗
19
68F4261500
Seal
Loading…
↗
20
6E54439100
Nipple, hose
Loading…
↗
21
68F4272501
Grommet
Loading…
↗
22
68F42738005B
Plate, fitting
Loading…
↗
23
9010906M86
Bolt
Loading…
↗
24
64D42738105B
Plate, fitting
Loading…
↗
26
9048022M81
Grommet
Loading…
↗
27
9038708M37
Coller (6e5)
Loading…
↗
28
9020108M54
Washer, plate (6e5)
Loading…
↗
29
9707508035
Bolt(70w)
Loading…
↗
30
9011908M22
Bolt, with washer
Loading…
↗
31
6884272610
Grommet
Loading…
↗
32
6E58258800
Plate
Loading…
↗
33
9589506020
Bolt, flange(jk3)
Loading…
↗
34
68F427230094
Cover, bottom
Loading…
↗
35
68F4272100
Gasket 1
Loading…
↗
36
9011006038
Bolt, hexagon socket head
Loading…
↗
37
68F4276900
Seal, Rubber
Loading…
↗
38
68F42741004D
L(20.3")
Apron
Loading…
↗
39
9011906077
Bolt, with washer
Loading…
↗
40
9038706M43
Coller (6e9)
Loading…
↗
41
9048013M24
Grommet (6e9)
Loading…
↗
42
9538006600
Nut(661)
Loading…
↗
43
9015906M03
Screw (6g5)
Loading…
↗
44
9589506016
Bolt, flange deep recess
Loading…
↗
45
68F4277100
Apron
Loading…
↗
46
61A4271700
Rubber, seal 2
Loading…
↗
48
68F4272200
Gasket 2
Loading…
↗
49
68F1257700
L(20.3")
Hose 2
Loading…
↗
50
68F1258201
L(20.3")
Joint, hose 2
Loading…
↗
51
68F4271800
Rubber, seal 3
Loading…
↗
52
68F4275300
AP
Fastner
Loading…
↗
53
9046420258
AP
Clamp
Loading…
↗
54
6E54271610
Rubber seal 1
Loading…
↗
55
9016905M00
Screw truss head tapping
Loading…
↗
56
6R3Y125J70
Flushing kit
Loading…
↗
57
6R31257200
Adapter
Loading…
↗
58
6R31258000
Joint assembly
Loading…
↗
59
9044511M35
Hose (l700)
Loading…
↗
60
9046511M10
Clamp
Loading…
↗
62
68F2415E60
Label, Caution
Loading…
↗
63
68H4279101
Mark 1
Loading…
↗
63
68F4279101
Mark 1
Loading…
↗
64
6A12817600
-
Loading…
↗
65
6E38257H00
Plate, Mark
Loading…
↗
