Z250DETO (2003)
BOTTOM COWLING

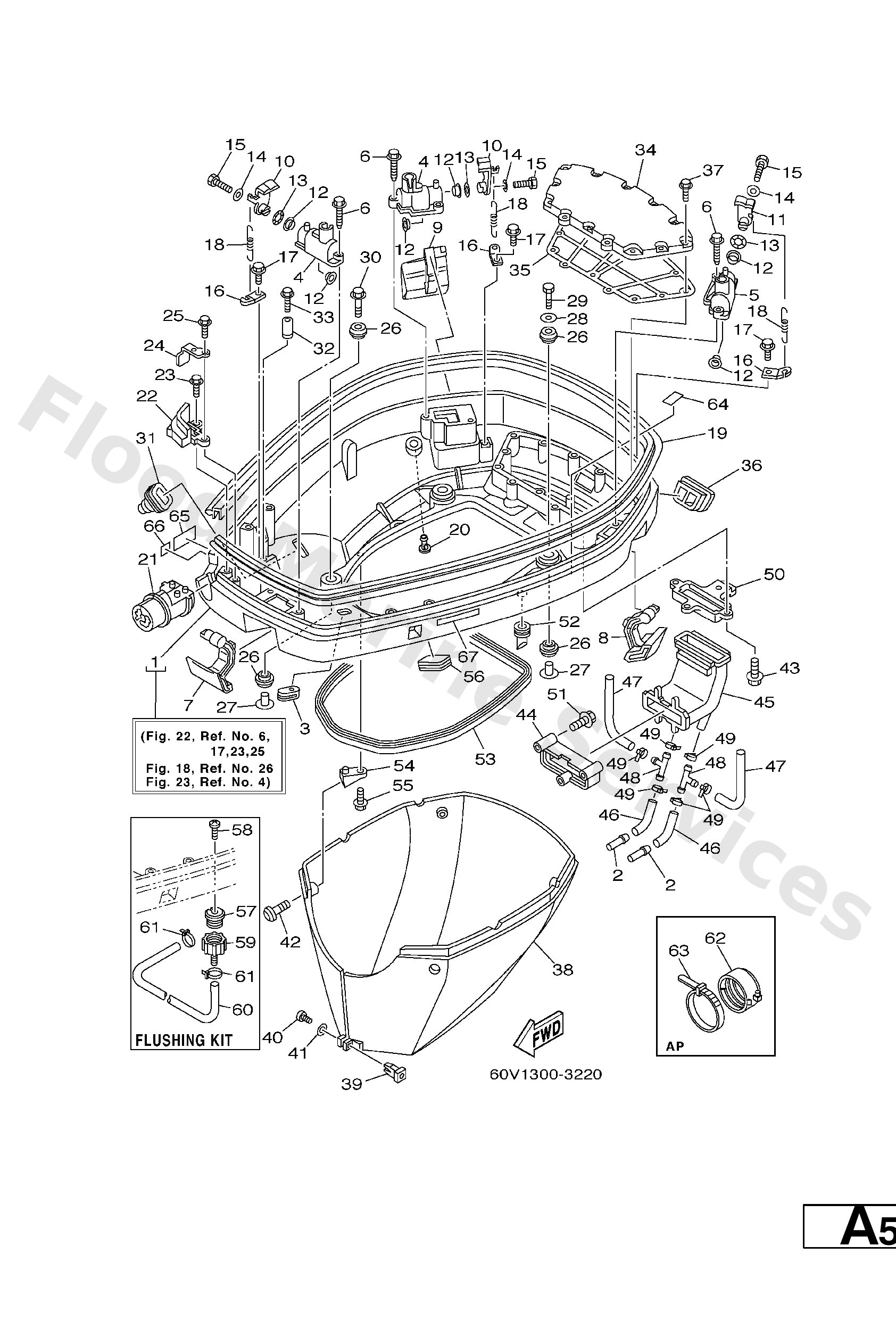

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
60V−42710−00−8D
Bottom cowling assembly
Loading…
↗
2
6E5−24377−00
Pipe, joint
Loading…
↗
3
61A−42727−00
Grommet
Loading…
↗
4
68F−42828−00−94
Plate, clamp
Loading…
↗
5
68F−42828−10−94
Plate, clamp
Loading…
↗
6
90109−06M82
Bolt
Loading…
↗
7
60V−42815−00−8D
Lever, Clamp
Loading…
↗
8
60V−42816−00−8D
Lever, clamp
Loading…
↗
9
60V−42817−00−8D
Lever, clamp
Loading…
↗
10
68F−42818−00
Lever, clamp
Loading…
↗
11
67F−42818−00
Lever, clamp
Loading…
↗
12
90386−15M73
Bush(6l2)
Loading…
↗
13
90206−15M18
Washer, wave(6l2)
Loading…
↗
14
90201−06068
Washer,plate (6k8)
Loading…
↗
15
97095−06016
Bolt, hexagon deep recess
Loading…
↗
16
64D−43144−00
Hook, spring
Loading…
↗
17
90109−06M80
Bolt
Loading…
↗
18
90506−16M34
Spring, tension(64d)
Loading…
↗
19
60V−42615−00
Seal
Loading…
↗
20
6E5−44391−00
Nipple, hose
Loading…
↗
21
60V−42725−00
Grommet
Loading…
↗
22
60V−42738−00−8D
Plate, fitting
Loading…
↗
23
90109−06M81
Bolt
Loading…
↗
24
64D−42738−10−5B
Plate, fitting
Loading…
↗
26
90480−22M81
Grommet
Loading…
↗
27
90387−08M37
Coller (6e5)
Loading…
↗
28
90201−08M54
Washer, plate (6e5)
Loading…
↗
29
97075−08035
Bolt(70w)
Loading…
↗
30
90119−08M22
Bolt, with washer
Loading…
↗
31
688−42726−10
Grommet
Loading…
↗
32
6E5−82588−00
Plate
Loading…
↗
33
95895−06020
Bolt, flange(jk3)
Loading…
↗
34
60V−42723−00−5B
Cover, bottom
Loading…
↗
35
60V−42721−A0
Gasket 1
Loading…
↗
36
60V−42718−00
Rubber, seal 3
Loading…
↗
38
60V−42741−00−8D
Apron
Loading…
↗
39
60V−42756−00
Stay, clamp
Loading…
↗
40
97880−04016
Screw, with washer(61b)
Loading…
↗
41
92990−04600
Washer, plain (646)
Loading…
↗
42
90111−06034
Bolt,hex. socket button
Loading…
↗
43
97595−06520
Bolt(7u8)
Loading…
↗
44
60V−12581−00
Joint, hose 1
Loading…
↗
45
60V−12576−00
Hose 1
Loading…
↗
46
60V−12578−00
Hose 3
Loading…
↗
47
60V−12588−00
Hose 5
Loading…
↗
48
6E5−24378−00
Pipe, joint 3
Loading…
↗
61
90465−11M10
FLUSHING KIT
Clamp
Loading…
↗
50
60V−42771−00
Apron
Loading…
↗
51
97575−08555
Bolt, hexagon w/w deep recess
Loading…
↗
52
61A−42717−00
Rubber, seal 2
Loading…
↗
53
61A−42716−00
Rubber seal 1
Loading…
↗
54
60V−42774−00
Stay, Apron 1
Loading…
↗
55
95895−06016
Bolt, flange deep recess
Loading…
↗
56
6H4−42726−00
Grommet
Loading…
↗
57
6R3−12572−00
FLUSHING KIT
Adapter
Loading…
↗
58
90169−05M00
FLUSHING KIT
Screw truss head tapping
Loading…
↗
59
6R3−12580−00
FLUSHING KIT
Joint assembly
Loading…
↗
60
90445−11M36
FLUSHING KIT
Hose (l700)
Loading…
↗
62
68F−42753−00
AP
Fastner
Loading…
↗
63
90464−20258
AP
Clamp
Loading…
↗
64
68H−42791−01
Mark 1
Loading…
↗
65
60V−2415E−60
Label, Caution
Loading…
↗
66
6A1−28176−00
Label, Caution
Loading…
↗
67
6E3−8257H−00
Plate, Mark
Loading…
↗
