Z300AETO (2005)
BOTTOM COWLING

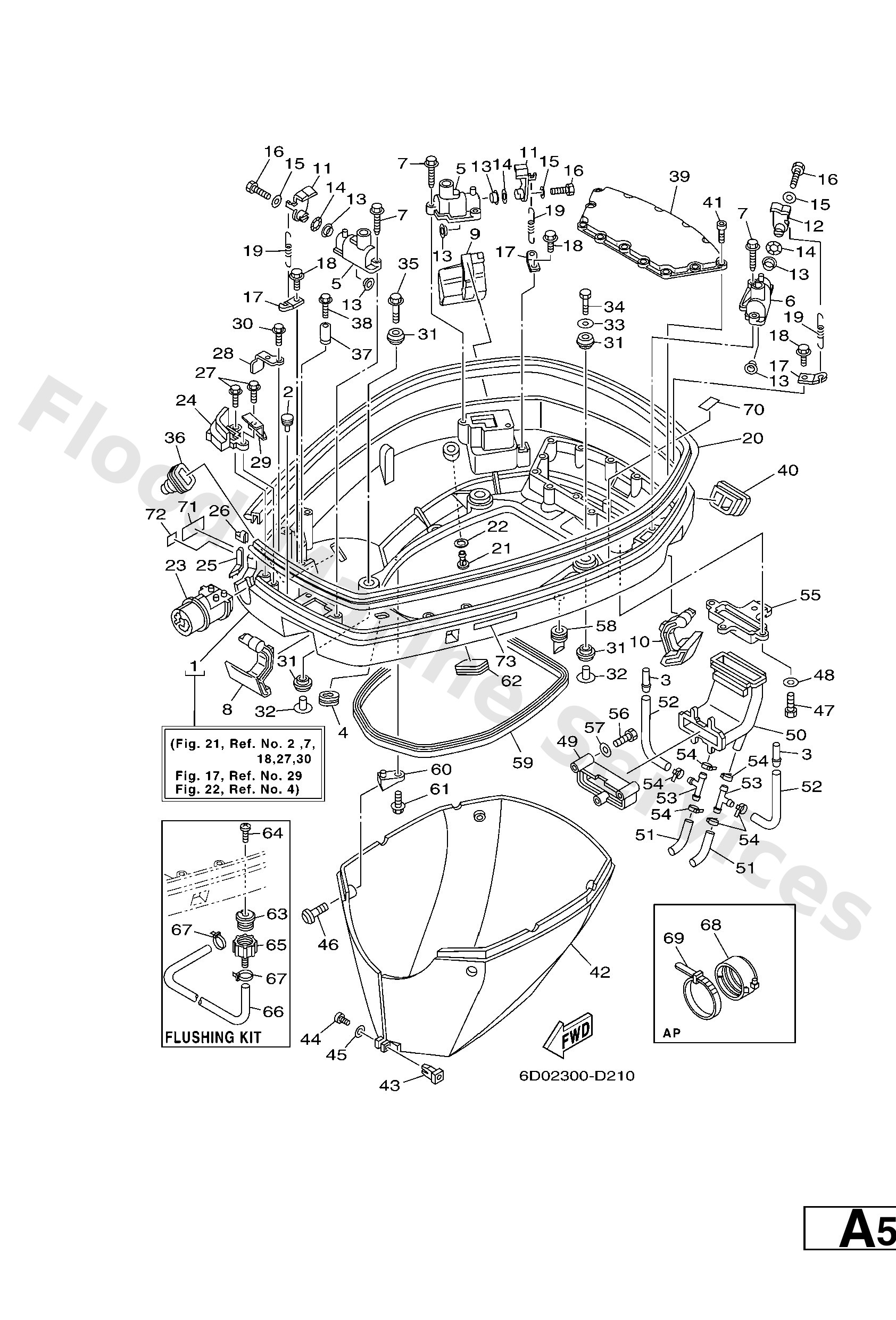

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
60V42710018D
Bottom cowling assembly
Loading…
↗
2
6H44274800
Grommet
Loading…
↗
3
6E52437700
Pipe, joint
Loading…
↗
4
6D04272700
Grommet
Loading…
↗
5
68F428280194
Plate, clamp
Loading…
↗
6
68F428281094
Plate, clamp
Loading…
↗
7
9010906M82
Bolt
Loading…
↗
8
60V42815008D
Lever, Clamp
Loading…
↗
9
60V42816008D
Lever, clamp
Loading…
↗
10
60V42817008D
Lever, clamp
Loading…
↗
11
68F4281801
Lever, clamp
Loading…
↗
12
6D84281800
Lever, clamp
Loading…
↗
13
9038615M73
Bush(6l2)
Loading…
↗
14
9020615M18
Washer, wave(6l2)
Loading…
↗
15
9020106068
Washer,plate (6k8)
Loading…
↗
16
9709506016
Bolt, hexagon deep recess
Loading…
↗
17
64D4314400
Hook, spring
Loading…
↗
18
9010906M80
Bolt
Loading…
↗
19
9050616M34
Spring, tension(64d)
Loading…
↗
20
60V4261501
Seal
Loading…
↗
21
60V4439100
Nipple, Hose
Loading…
↗
22
60V4274700
Pad
Loading…
↗
23
60V4272500
Grommet
Loading…
↗
24
60V42738028D
Plate, fitting
Loading…
↗
25
60V4271601
Rubber, seal 1
Loading…
↗
26
60V4271700
Rubber, seal 2
Loading…
↗
27
9010906M81
Bolt
Loading…
↗
28
64D42738105B
Plate, fitting
Loading…
↗
29
60V4273810
Plate, Fitting
Loading…
↗
31
9048022M81
Grommet
Loading…
↗
32
9038708M37
Coller (6e5)
Loading…
↗
33
9020108M54
Washer, plate (6e5)
Loading…
↗
34
9707508035
Bolt(70w)
Loading…
↗
35
9011908M22
Bolt, with washer
Loading…
↗
36
6884272610
Grommet
Loading…
↗
37
6E58258800
Plate
Loading…
↗
38
9589506020
Bolt, flange(jk3)
Loading…
↗
39
6D042723005B
Cover, bottom
Loading…
↗
40
60V4271800
Rubber, seal 3
Loading…
↗
41
9011006038
Bolt, hexagon socket head
Loading…
↗
42
60V42741008D
Apron
Loading…
↗
43
60V4275600
Stay, clamp
Loading…
↗
44
9788004016
Screw, with washer(61b)
Loading…
↗
45
9299004600
Washer, plain (646)
Loading…
↗
46
9011106034
Bolt,hex. socket button
Loading…
↗
47
9709506020
Bolt(7u8)
Loading…
↗
48
9299506600
Washer, plain (646)
Loading…
↗
49
60V1258100
Joint, hose 1
Loading…
↗
50
60V1257600
Hose 1
Loading…
↗
51
60V1257800
Hose 3
Loading…
↗
52
60V1258800
Hose 5
Loading…
↗
53
6E52437800
Pipe, joint 3
Loading…
↗
67
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
55
60V4277100
Apron
Loading…
↗
56
9707508055
-
Loading…
↗
57
9299508600
Washer, plain (663)
Loading…
↗
58
61A4271700
Rubber, seal 2
Loading…
↗
59
61A4271600
Rubber seal 1
Loading…
↗
60
60V4277400
Stay, Apron 1
Loading…
↗
61
9589506016
Bolt, flange deep recess
Loading…
↗
62
6H44272600
Grommet
Loading…
↗
63
6R31257200
FLUSHING KIT
Adapter
Loading…
↗
64
9016905M00
FLUSHING KIT
Screw truss head tapping
Loading…
↗
65
6R31258000
FLUSHING KIT
Joint assembly
Loading…
↗
66
9044511M36
FLUSHING KIT
Hose (l700)
Loading…
↗
68
68F4275300
AP
Fastner
Loading…
↗
69
9046420258
AP
Clamp
Loading…
↗
70
68H4279101
Mark 1
Loading…
↗
71
60V2415E60
Label, Caution
Loading…
↗
72
6A12817600
-
Loading…
↗
73
6E38257H00
Plate, Mark
Loading…
↗
