F130AET (2015)
BOTTOM COWLING 1

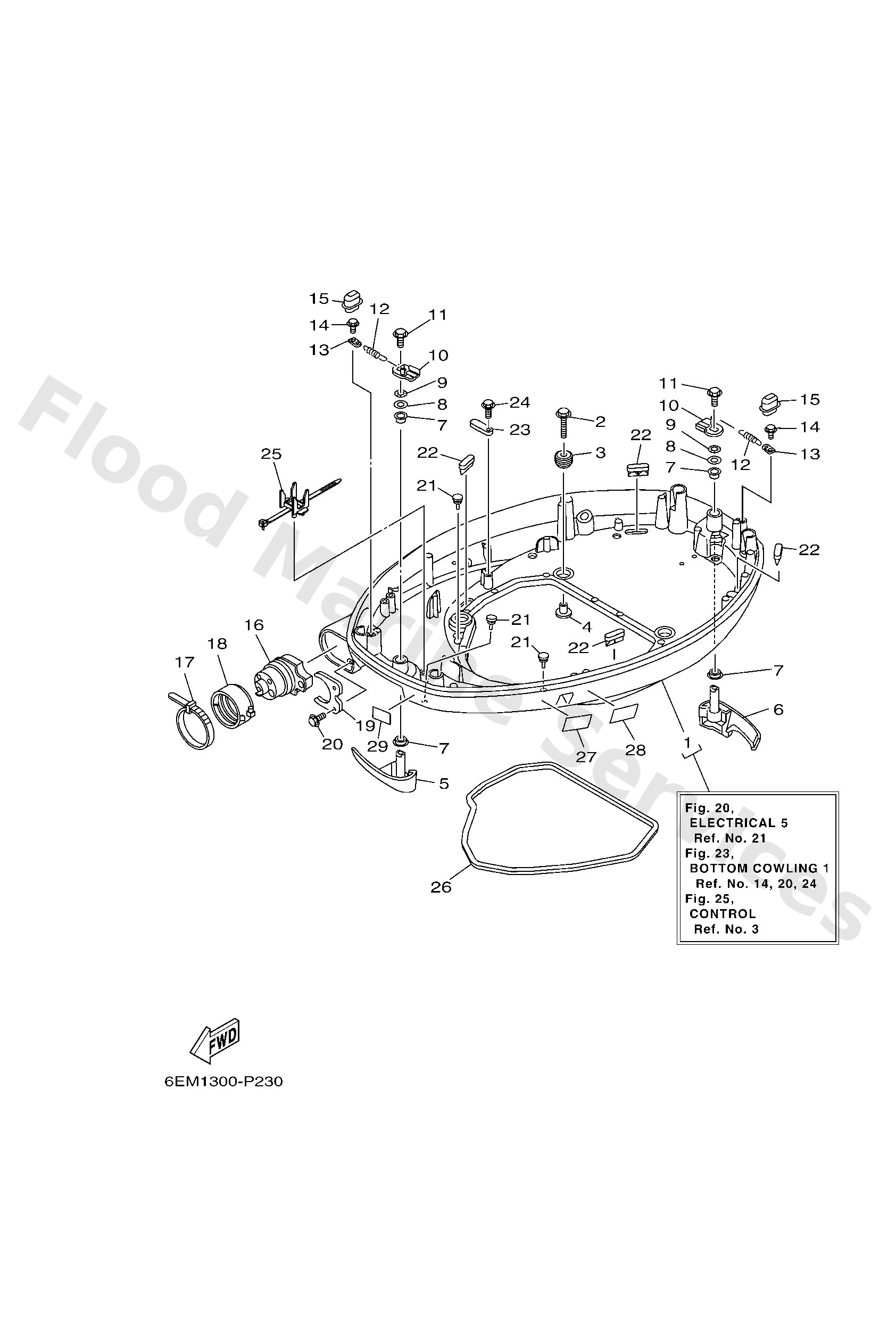

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6EK4271000
Bottom cowling assembly
Loading…
↗
2
9011908M22
Bolt, with washer
Loading…
↗
3
9048022M15
Grommet (6e5)
Loading…
↗
4
9038708M37
Coller (6e5)
Loading…
↗
5
6EK42815008D
Lever, clamp 1 (6ek)
Loading…
↗
6
6EK42816008D
Lever, clamp 2 (6ek)
Loading…
↗
7
9038615M73
Bush(6l2)
Loading…
↗
8
90201156J2
Washer, plate(j41)
Loading…
↗
9
9020615M18
Washer, wave(6l2)
Loading…
↗
10
6CB4281800
Lever, clamp
Loading…
↗
11
9589508012
Bolt, flange deep recess
Loading…
↗
12
9050622001
Spring, tension
Loading…
↗
13
66T4314400
Hook, spring
Loading…
↗
14
9010906M86
Bolt
Loading…
↗
15
6EK4272800
Cap
Loading…
↗
16
6EK4272500
Grommet
Loading…
↗
17
9046420258
AP
Clamp
Loading…
↗
18
68F4275300
AP
Fastner
Loading…
↗
19
6CB4276100
Stopper
Loading…
↗
21
6H44274800
Grommet
Loading…
↗
22
67F4271700
Rubber, seal 2
Loading…
↗
23
6E58258800
Plate
Loading…
↗
24
9010906M81
Bolt
Loading…
↗
25
6888259400
Clamp
Loading…
↗
26
6EK4271600
Rubber seal 1
Loading…
↗
27
6EE4279440
Label, warning (general)
Loading…
↗
28
6EE4279450
Label, warning (general)
Loading…
↗
29
6AH8199600
Mark
