F200FET (2017)
BOTTOM COWLING 1

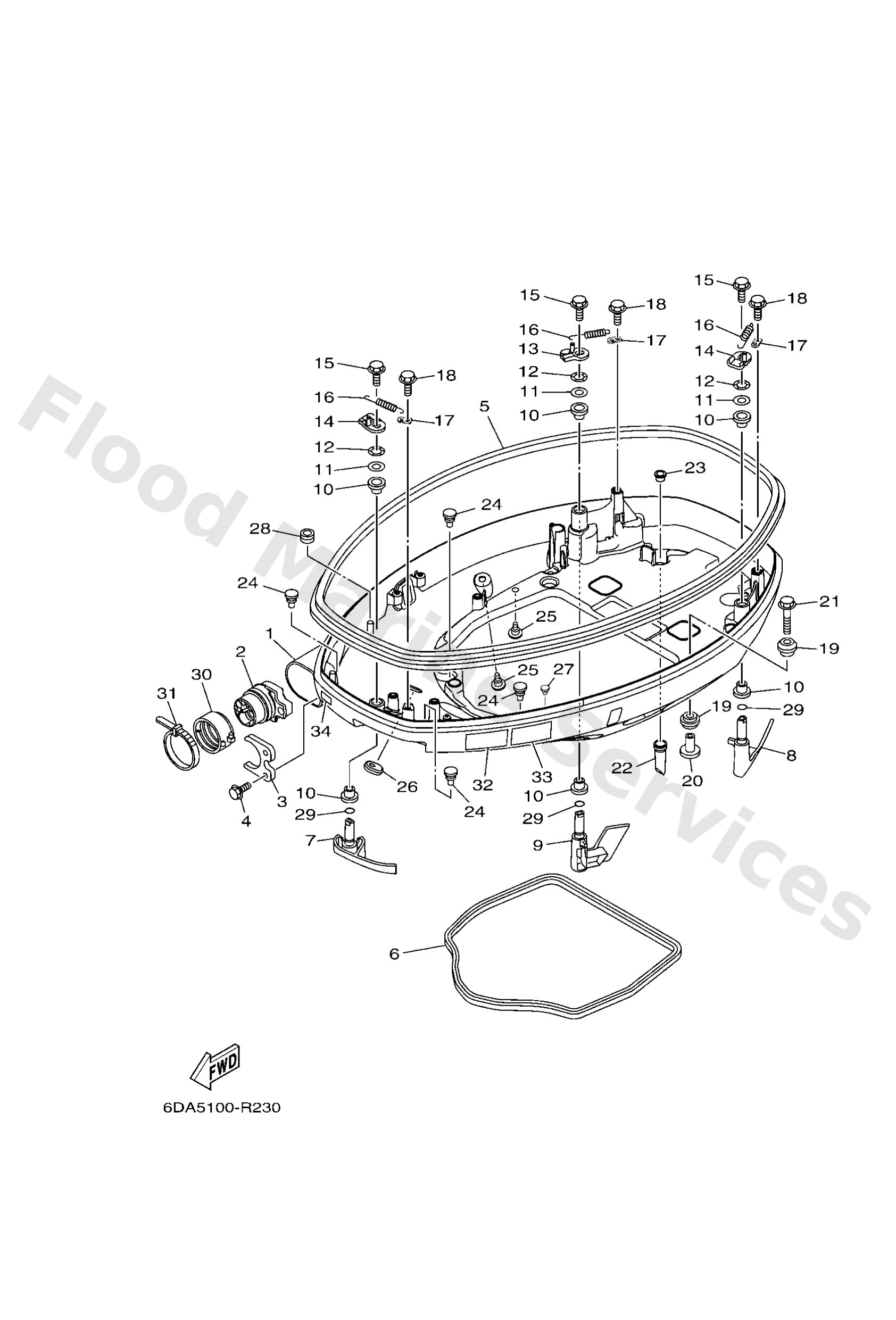

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6DA42710008D
Bottom cowling assembly
Loading…
↗
2
6DA4272500
Grommet
Loading…
↗
3
6CB4276100
Stopper
Loading…
↗
4
9589506014
Bolt, flange deep recess
Loading…
↗
5
6DA4261500
Seal
Loading…
↗
6
63P4271600
Rubber seal 1
Loading…
↗
7
6DA42815018D
Lever, clamp
Loading…
↗
8
6DA42816028D
Lever, clamp
Loading…
↗
9
6DA42817028D
Lever, clamp
Loading…
↗
10
9038615M73
Bush(6l2)
Loading…
↗
11
90201156J2
Washer, plate(j41)
Loading…
↗
12
9020615M18
Washer, wave(6l2)
Loading…
↗
13
6CB4281800
Lever, clamp
Loading…
↗
14
6CB4281900
Lever, clamp
Loading…
↗
15
9589508012
Bolt, flange deep recess
Loading…
↗
16
9050622001
Spring, tension
Loading…
↗
17
66T4314400
Hook, spring
Loading…
↗
18
9589506012
Bolt, flange deep recess
Loading…
↗
19
9048022M81
Grommet
Loading…
↗
20
9038708M37
Coller (6e5)
Loading…
↗
21
9011908M22
Bolt, with washer
Loading…
↗
22
6DA4271700
Rubber, seal 2
Loading…
↗
23
6DA4238400
Seal, cap
Loading…
↗
24
6H44274800
Grommet
Loading…
↗
25
6P24439100
Nipple, hose
Loading…
↗
26
61A4272700
Grommet
Loading…
↗
27
9026907003
Rivet
Loading…
↗
28
9048013163
Grommet (1e5)
Loading…
↗
29
9321013M63
O-ring (6g8)
Loading…
↗
30
68F4275300
AP
Fastner
Loading…
↗
31
9046420258
AP
Clamp
Loading…
↗
32
6EE4279440
Label, warning (general)
Loading…
↗
33
6EE4279450
Label, warning (general)
Loading…
↗
34
6AH8199600
Mark
