F25DET (2011)
BOTTOM COWLING 1

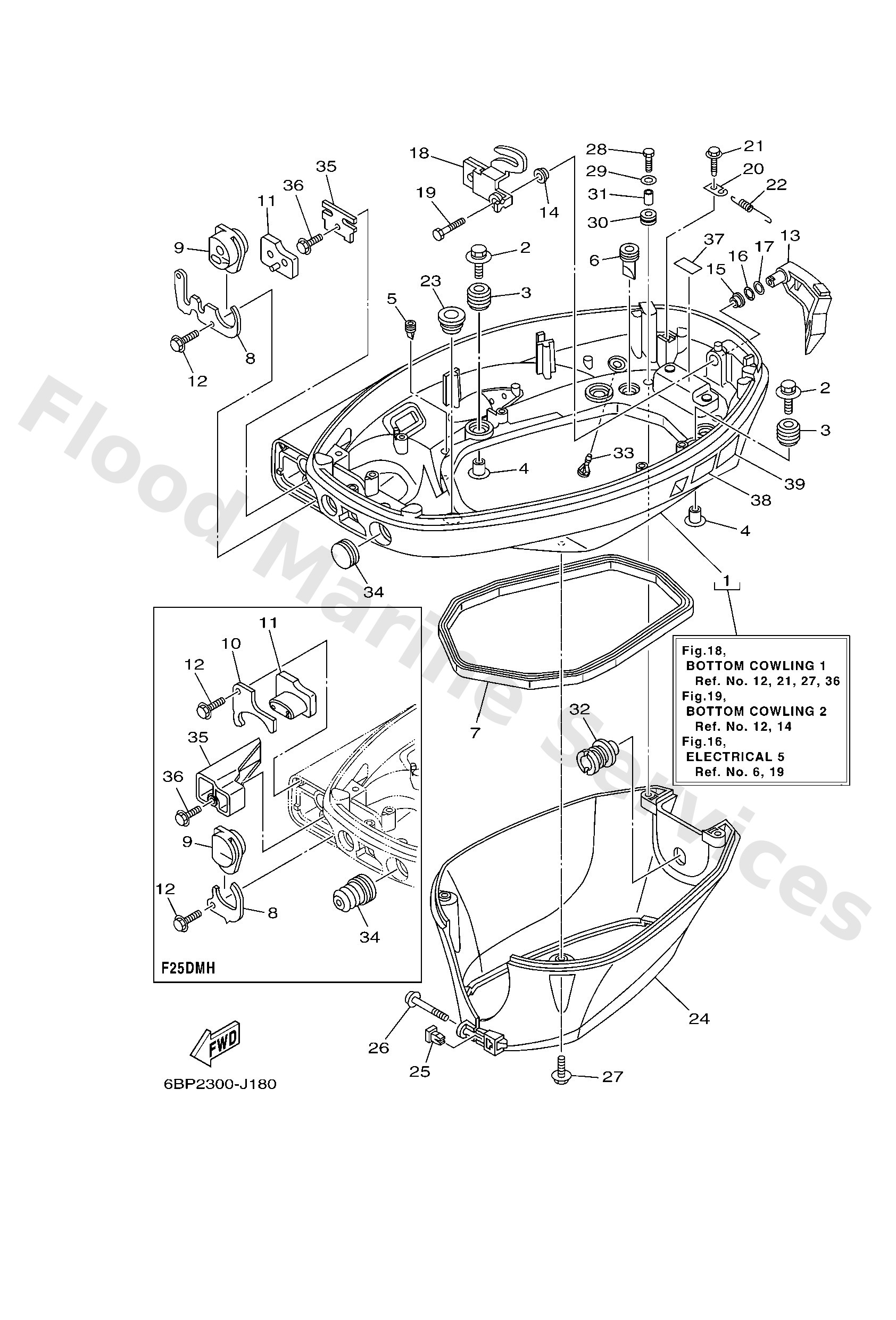

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6BP42710004D
Bottom cowling assembly
Loading…
↗
2
9011906M61
Bolt, with washer
Loading…
↗
3
6BG4274800
Grommet
Loading…
↗
4
9038706060
Collar (688)
Loading…
↗
5
65W4271700
Rubber, seal 2
Loading…
↗
6
61A4271700
Rubber, seal 2
Loading…
↗
7
62Y4271600
Rubber seal 1
Loading…
↗
8
6BL4276100
Stopper
Loading…
↗
8
6BL4276110
Stopper
Loading…
↗
9
6BL4272501
Grommet
Loading…
↗
9
6BL4272510
Grommet
Loading…
↗
10
6BL4276210
Stopper
Loading…
↗
11
6BL4272700
Grommet
Loading…
↗
11
6BL4272710
Grommet
Loading…
↗
12
9010906M86
Bolt
Loading…
↗
13
6BL42815004D
Lever, clamp
Loading…
↗
14
9038612M37
Bushing (6f5)
Loading…
↗
15
9038612MA2
Bush
Loading…
↗
16
9020612052
Washer, wave (666)
Loading…
↗
17
9020112M07
Washer, plate
Loading…
↗
18
6BG4281600
Lever, clamp
Loading…
↗
19
9709506012
Bolt(gh1)
Loading…
↗
20
66T4314400
Hook, spring
Loading…
↗
22
9050618023
Spring, tension
Loading…
↗
23
68U4272700
Grommet
Loading…
↗
24
6BP4274100
Apron
Loading…
↗
25
60V4275600
Stay, clamp
Loading…
↗
26
9798004245
Screw, with washer
Loading…
↗
28
9709506014
Bolt(gj3)
Loading…
↗
29
9299506600
Washer, plain (646)
Loading…
↗
30
9048013M24
Grommet (6e9)
Loading…
↗
31
9038706M43
Coller (6e9)
Loading…
↗
32
6BP4276900
Seal, rubber
Loading…
↗
33
6BL4439100
Nipple, hose
Loading…
↗
34
65W4272610
Grommet
Loading…
↗
34
65W4272600
Grommet
Loading…
↗
35
6BL4853800
Clamp, cable 1
Loading…
↗
35
6BL4273500
Protector
Loading…
↗
37
6C58237700
ラベル
Loading…
↗
38
6AH4279440
Label, warning (ge
Loading…
↗
39
6AH4279450
Label, warning (ge
Loading…
↗
