F70BET (2025)
BOTTOM COWLING 1

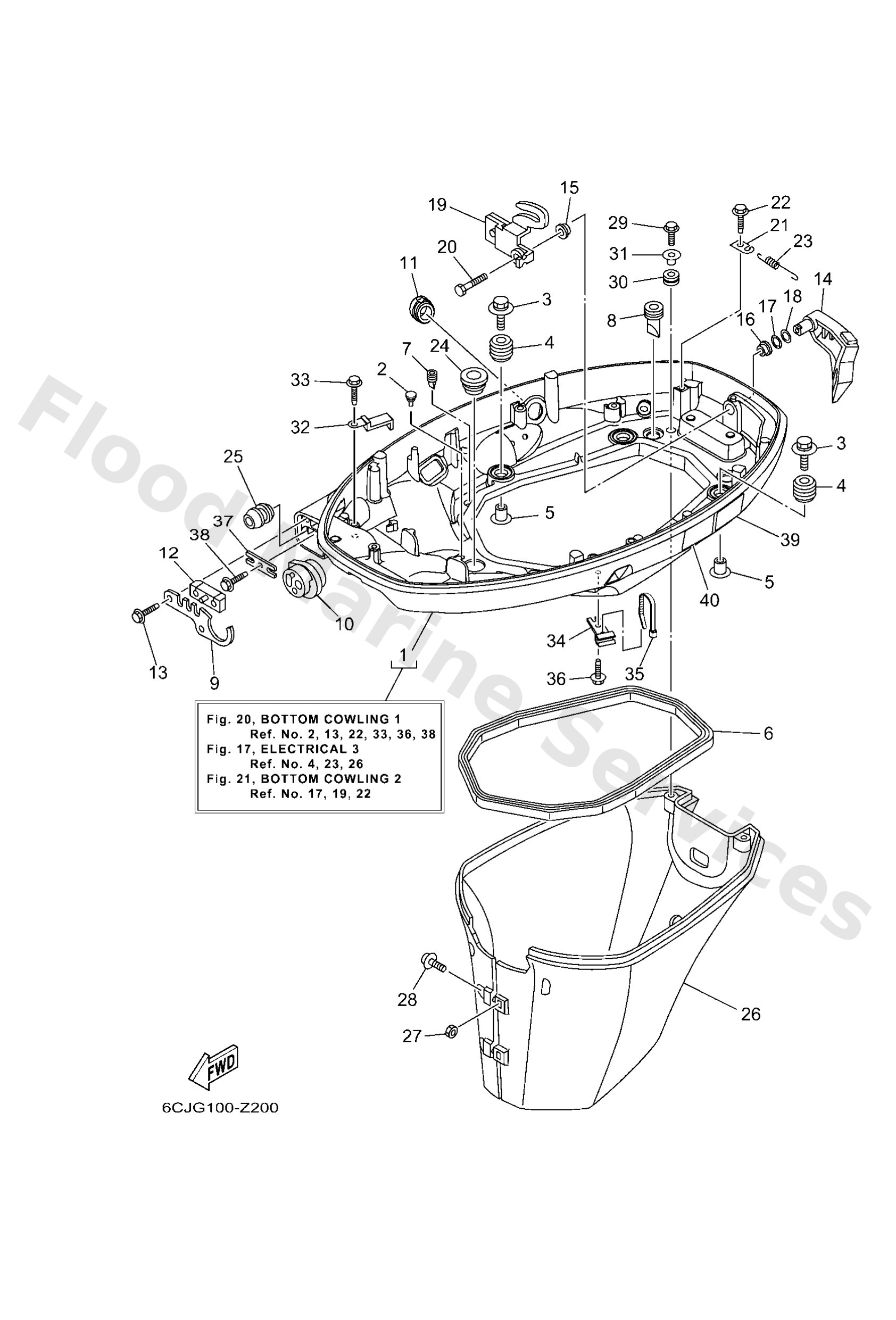

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6CJ4271003CE
WHITE
Bottom cowling assembly
Loading…
↗
1
6CJ42710038D
GRAY
Bottom cowling assembly
Loading…
↗
2
6H44274801
Grommet
Loading…
↗
3
9011906291
Bolt, with washer
Loading…
↗
4
6BG4274801
Grommet
Loading…
↗
5
9038706M69
Collar (688)
Loading…
↗
6
62Y4271601
Rubber seal 1
Loading…
↗
7
65W4271700
Rubber, seal 2
Loading…
↗
8
61A4271700
Rubber, seal 2
Loading…
↗
9
6BG4276100
Stopper
Loading…
↗
10
6CJ4272501
Grommet
Loading…
↗
11
6CJ4272610
Grommet
Loading…
↗
12
6BG4272701
Grommet
Loading…
↗
13
9010906316
Bolt
Loading…
↗
14
6BG42815008D
GRAY
Lever, clamp
Loading…
↗
14
6BG4281500CE
WHITE
Lever, clamp 1
Loading…
↗
15
9038612M37
Bushing (6f5)
Loading…
↗
16
9038612MA2
Bush
Loading…
↗
17
9020612052
Washer, wave (666)
Loading…
↗
18
9020112M07
Washer, plate
Loading…
↗
19
6BG4281600
Lever, clamp
Loading…
↗
20
97D9506014
Bolt, hexagon deep recess
Loading…
↗
21
66T4314400
Hook, spring
Loading…
↗
23
9050618023
Spring, tension
Loading…
↗
24
68U4272701
Grommet
Loading…
↗
25
6BG2432901
Seal
Loading…
↗
26
6BG42741108D
GRAY
Apron
Loading…
↗
26
6BG4274110CE
WHITE
Apron
Loading…
↗
27
9538006600
Nut(661)
Loading…
↗
28
9798006325
Screw, with washer
Loading…
↗
29
9010906M80
Bolt
Loading…
↗
30
9048013M24
Grommet (6e9)
Loading…
↗
31
9038706M43
Coller (6e9)
Loading…
↗
32
9046220005
Clamp
Loading…
↗
34
9046409M49
Clamp
Loading…
↗
35
9046511M10
Clamp
Loading…
↗
37
6BG4853800
Clamp, cable 1
Loading…
↗
39
6EE4279441
-
Loading…
↗
40
6EE4279451
-
Loading…
↗
