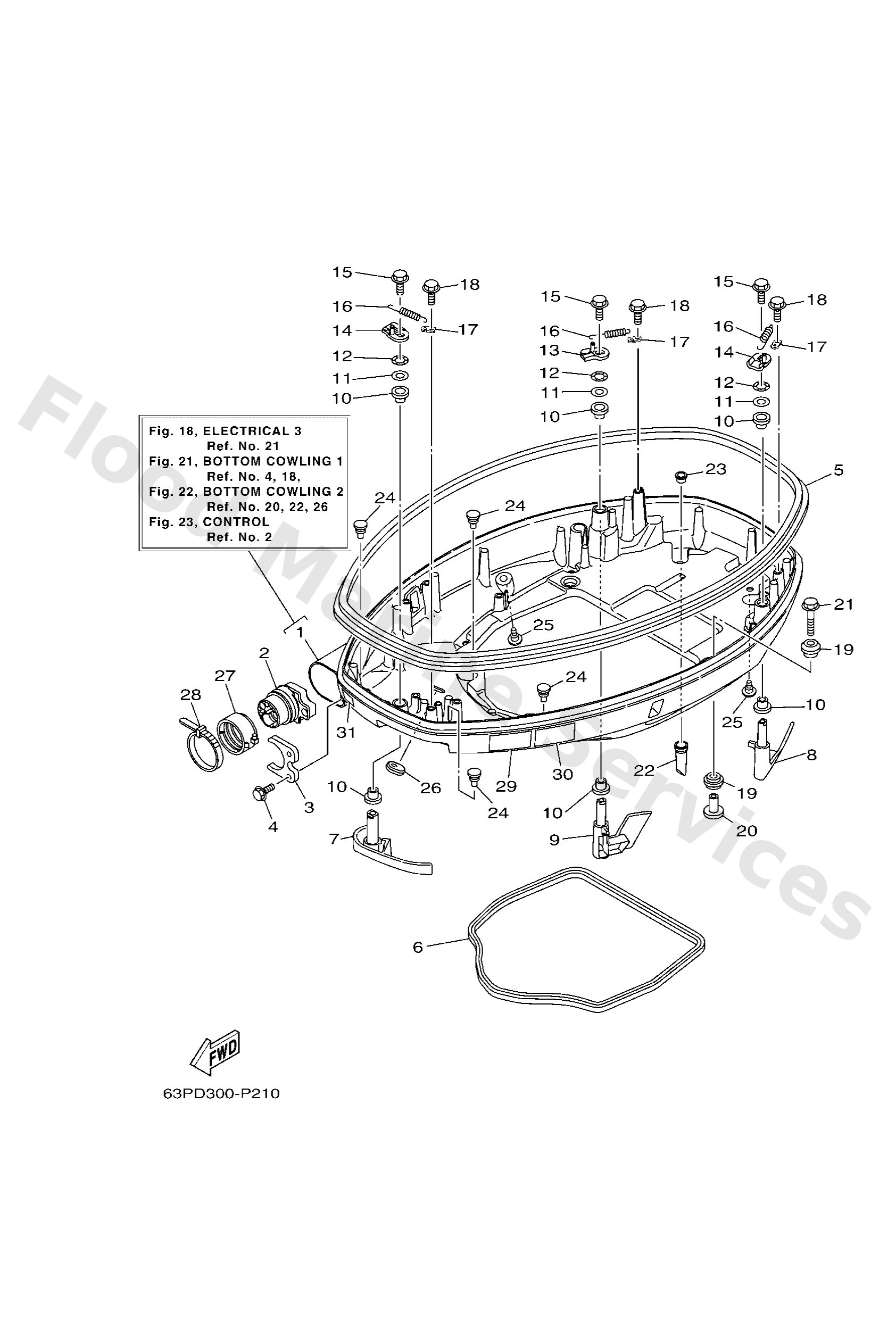

Diagram: BOTTOM COWLING 1

Diagram

Parts List

Reference
Description
Price


1
63P42710108D
Bottom cowling assembly
Loading…

↗
2
6DA4272500
Grommet
Loading…

↗
3
6CB4276100
Stopper
Loading…

↗
4
9010906M86
Bolt
Loading…

↗
5
63P4261510
Seal
Loading…

↗
6
63P4271600
Rubber seal 1
Loading…

↗
7
63P42815108D
Lever, clamp 1 (63p)
Loading…

↗
8
6DA42816018D
Lever, clamp 2 (6da)
Loading…

↗
9
6DA42817018D
Lever, clamp 3 (6da)
Loading…

↗
10
9038615M73
Bush(6l2)
Loading…

↗
11
90201156J2
Washer, plate(j41)
Loading…

↗
12
9020615M18
Washer, wave(6l2)
Loading…

↗
13
6CB4281800
Lever, clamp
Loading…

↗
14
6CB4281900
Lever, clamp
Loading…

↗
15
9589508012
Bolt, flange deep recess
Loading…

↗
16
9050622001
Spring, tension
Loading…

↗
17
66T4314400
Hook, spring
Loading…

↗
19
9048022M81
Grommet
Loading…

↗
20
9038708M37
Coller (6e5)
Loading…

↗
21
9011908M22
Bolt, with washer
Loading…

↗
22
6DA4271700
Rubber, seal 2
Loading…

↗
23
6DA4238400
Seal, cap
Loading…

↗
24
6H44274800
Grommet
Loading…

↗
25
6P24439100
Nipple, hose
Loading…

↗
26
61A4272700
Grommet
Loading…

↗
27
68F4275300 AP
Fastner
Loading…

↗
28
9046420258 AP
Clamp
Loading…

↗
29
6EE4279440
Label, warning (general)
Loading…

↗
30
6EE4279450
Label, warning (general)
Loading…

↗
31
6AH8199600
Mark
Loading…

↗
