FL200CET (2015)
BOTTOM COWLING 1

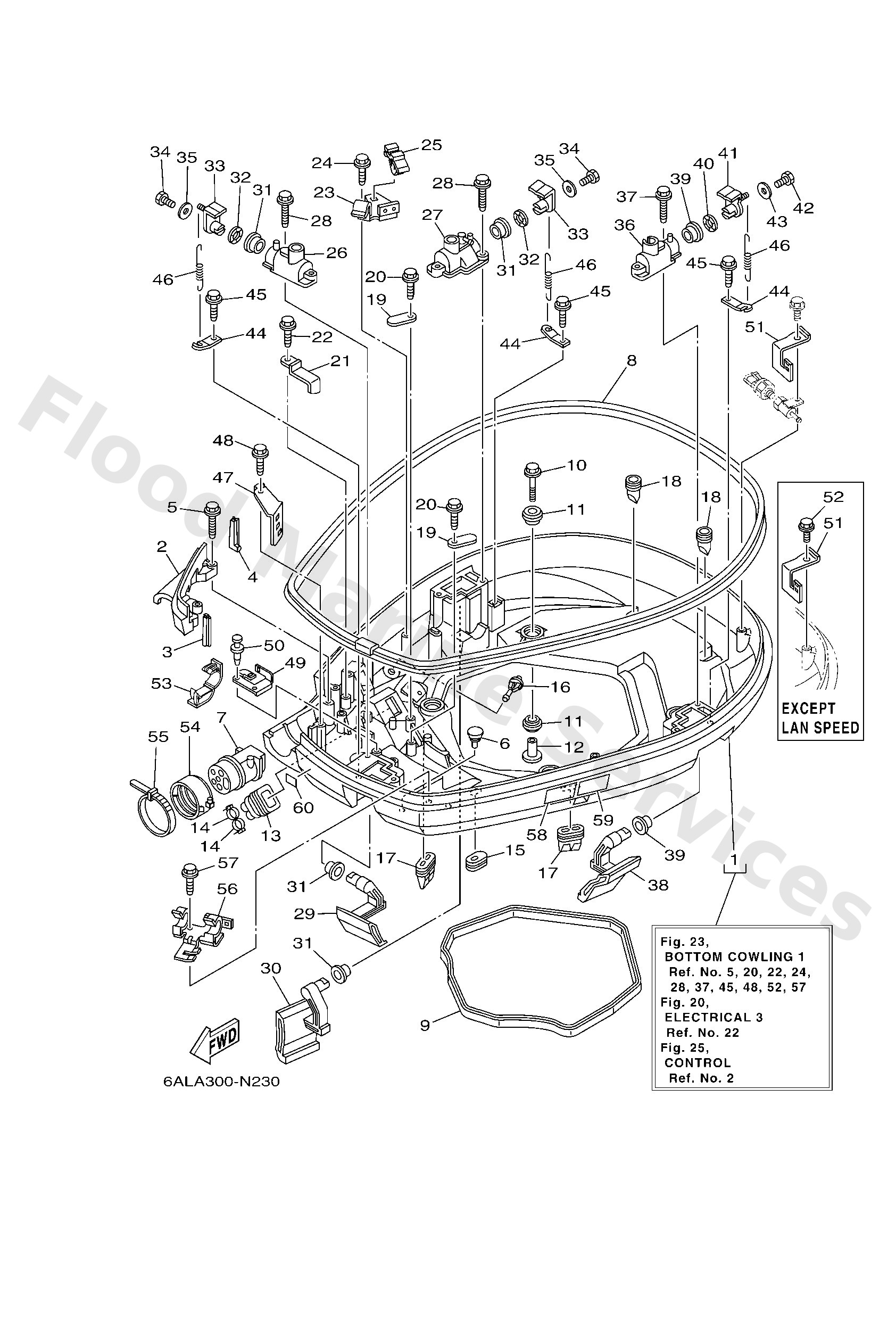

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6P242710008D
Bottom cowling assembly
Loading…
↗
2
6P242738008D
Plate, fitting
Loading…
↗
3
6P24271700
Rubber, seal 2
Loading…
↗
4
6P24271800
Rubber, seal 3
Loading…
↗
5
9010906M82
Bolt
Loading…
↗
6
6H44274800
Grommet
Loading…
↗
7
6P24272500
Grommet
Loading…
↗
8
6P24261500
Seal
Loading…
↗
9
69J4271600
Rubber seal 1
Loading…
↗
10
9011908M22
Bolt, with washer
Loading…
↗
11
9048022M81
Grommet
Loading…
↗
12
9038708M37
Coller (6e5)
Loading…
↗
13
6H14272621
Grommet
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
61A4272700
Grommet
Loading…
↗
16
6P24439100
Nipple, hose
Loading…
↗
17
69J4271700
Rubber, seal 2
Loading…
↗
18
61A4271700
Rubber, seal 2
Loading…
↗
19
6E58258800
Plate
Loading…
↗
20
9010906M81
Bolt
Loading…
↗
21
9046220001
Clamp
Loading…
↗
52
9010906M86
EXCEPT LAN SPEED
Bolt
Loading…
↗
23
6P28255400
Stay, neutral switch
Loading…
↗
25
9046409M47
Clamp(65j)
Loading…
↗
26
69J42828029S
Plate, clamp
Loading…
↗
27
6P242828009S
Plate, clamp
Loading…
↗
29
69J42815008D
Lever, clamp
Loading…
↗
30
69J42817008D
Lever, clamp
Loading…
↗
31
9038615M73
Bush(6l2)
Loading…
↗
32
9020615M18
Washer, wave(6l2)
Loading…
↗
33
63P4281801
Lever, clamp
Loading…
↗
34
9709506020
Bolt(7u8)
Loading…
↗
35
9020106068
Washer,plate (6k8)
Loading…
↗
36
68F42828119S
Plate, clamp
Loading…
↗
38
69J42816008D
Lever, clamp
Loading…
↗
41
68V4281801
Lever, clamp
Loading…
↗
44
64D4314400
Hook, spring
Loading…
↗
46
9050618M40
Spring, tension
Loading…
↗
47
6P24274300
Bracket
Loading…
↗
49
6P24276610
Bracket 2
Loading…
↗
50
9026905005
Rivet
Loading…
↗
51
69J8366G02
Bracket 3
Loading…
↗
53
9046418004
Clamp
Loading…
↗
54
68F4275300
AP
Fastner
Loading…
↗
55
9046420258
AP
Clamp
Loading…
↗
56
6P28259400
Clamp
Loading…
↗
58
6EE4279440
Label, warning (general)
Loading…
↗
59
6EE4279450
Label, warning (general)
Loading…
↗
60
6AH8199600
Mark
Loading…
↗
