FL300AET (2011)
BOTTOM COWLING 1

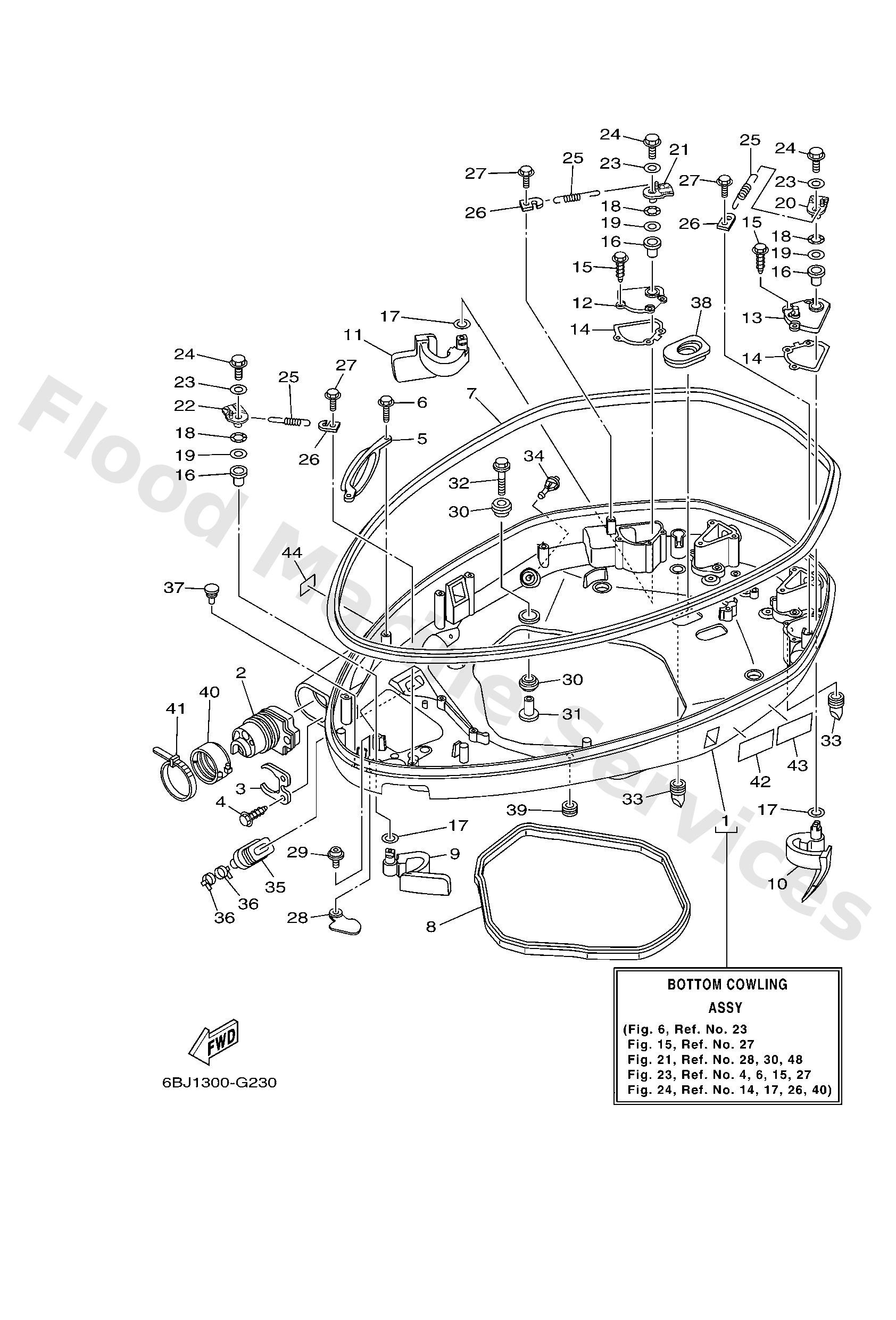

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6AW42710008D
Bottom cowling assembly
Loading…
↗
2
6AW4272500
Go to P/N ) PE0-OM-150018
Grommet
Loading…
↗
3
6AW4276100
Stopper
Loading…
↗
4
9010906M86
Bolt
Loading…
↗
5
6AW4273500
Protector
Loading…
↗
7
6AW4261500
Seal
Loading…
↗
8
63P4271600
Rubber seal 1
Loading…
↗
9
6AW42815008D
Lever, clamp
Loading…
↗
10
6AW42816018D
Lever, clamp
Loading…
↗
11
6AW42817018D
Lever, clamp
Loading…
↗
12
6AW42828008D
Plate, clamp
Loading…
↗
13
6AW42829008D
Plate, clamp 2
Loading…
↗
14
6AW4272200
Gasket 2
Loading…
↗
15
9010906M81
Bolt
Loading…
↗
16
9038115002
Bush, solid
Loading…
↗
17
9020215M37
Washer, plate(6l2)
Loading…
↗
18
9020615M18
Washer, wave(6l2)
Loading…
↗
19
90201156J2
Washer, plate(j41)
Loading…
↗
20
6AW4281801
Lever, clamp
Loading…
↗
21
6AW4281901
Lever, clamp
Loading…
↗
22
6AW4281A01
Lever, clamp 6
Loading…
↗
23
9020106M30
Washer, plate (6a1)
Loading…
↗
24
9010506155
Bolt, flange
Loading…
↗
25
9050622001
Spring, tension
Loading…
↗
26
66T4314400
Hook, spring
Loading…
↗
28
6AW4285100
Cover, clamp
Loading…
↗
29
9011106094
Bolt,hex. socket button
Loading…
↗
30
9048022M81
Grommet
Loading…
↗
31
9038708M37
Coller (6e5)
Loading…
↗
32
9011908M22
Bolt, with washer
Loading…
↗
33
61A4271700
Rubber, seal 2
Loading…
↗
34
6P24439100
Nipple, hose
Loading…
↗
35
6H14272621
Grommet
Loading…
↗
36
9046511M10
Clamp
Loading…
↗
37
6H44274800
Grommet
Loading…
↗
38
6AW4272600
Grommet
Loading…
↗
39
9048016007
Grommet
Loading…
↗
40
68F4275300
AP
Fastner
Loading…
↗
41
9046420258
AP
Clamp
Loading…
↗
42
6AH4279440
Label, warning (ge
Loading…
↗
43
6AH4279450
Label, warning (ge
Loading…
↗
44
6AH8199600
Mark
Loading…
↗
