FT25FET (2022)
BOTTOM COWLING 1

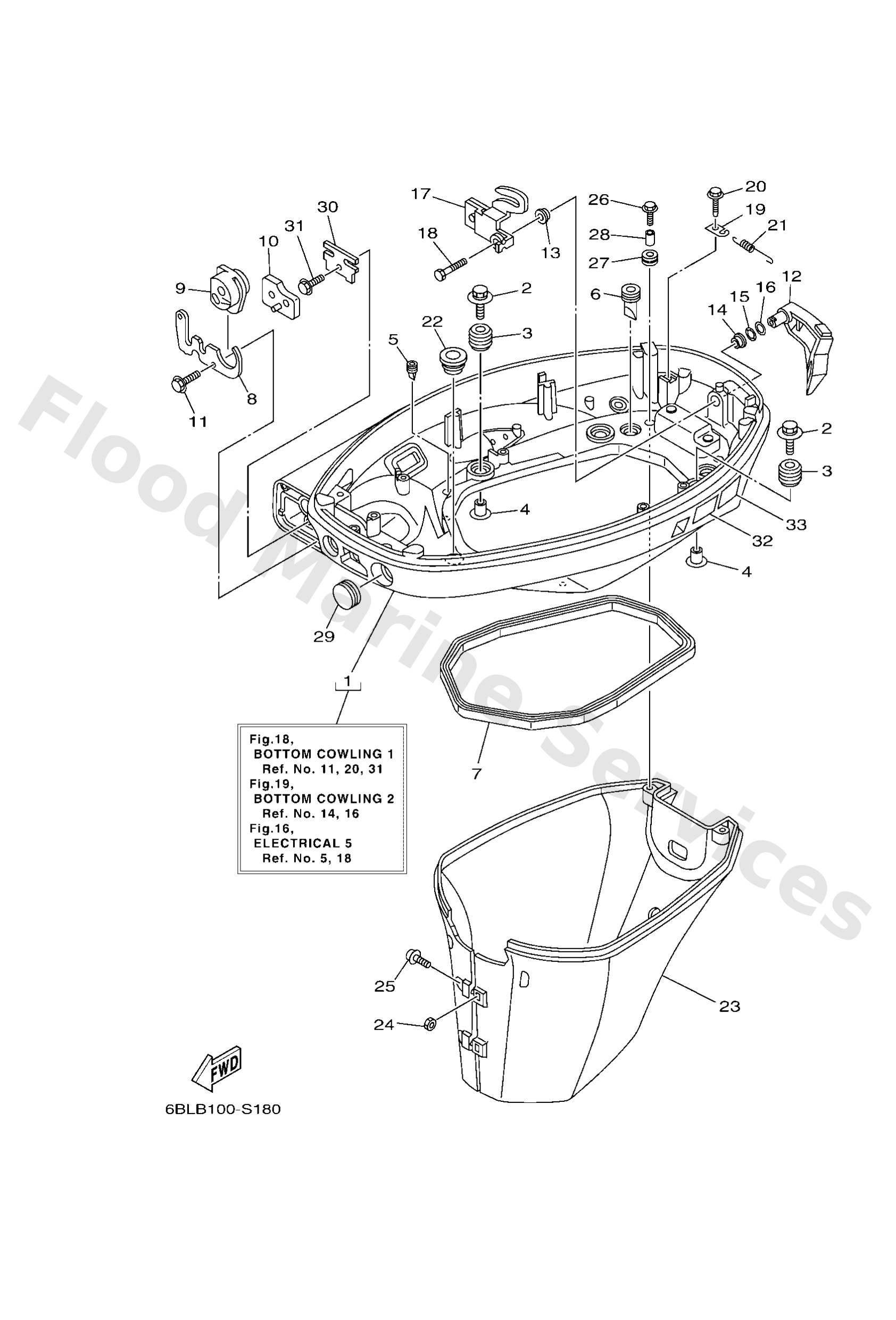

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6BP42710008D
Bottom cowling assembly
Loading…
↗
2
9011906291
Bolt, with washer
Loading…
↗
3
6BG4274801
Grommet
Loading…
↗
4
9038706M69
Collar (688)
Loading…
↗
5
65W4271700
Rubber, seal 2
Loading…
↗
6
61A4271700
Rubber, seal 2
Loading…
↗
7
62Y4271601
Rubber seal 1
Loading…
↗
8
6BL4276100
Stopper
Loading…
↗
9
6BL4272502
Grommet
Loading…
↗
10
6BL4272701
Grommet
Loading…
↗
11
9010906M86
Bolt
Loading…
↗
12
6BL42815008D
Lever, clamp
Loading…
↗
13
9038612M37
Bushing (6f5)
Loading…
↗
14
9038612MA2
Bush
Loading…
↗
15
9020612052
Washer, wave (666)
Loading…
↗
16
9020112M07
Washer, plate
Loading…
↗
17
6BG4281600
Lever, clamp
Loading…
↗
18
97D9506012
Bolt, hexagon deep recess
Loading…
↗
19
66T4314400
Hook, spring
Loading…
↗
21
9050618023
Spring, tension
Loading…
↗
22
68U4272701
Grommet
Loading…
↗
23
6BG42741108D
Apron
Loading…
↗
24
9538006600
Nut(661)
Loading…
↗
25
9798006325
Screw, with washer
Loading…
↗
26
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
27
9048013M24
Grommet (6e9)
Loading…
↗
28
9038706M43
Coller (6e9)
Loading…
↗
29
65W4272611
Grommet
Loading…
↗
30
6BL4853800
Clamp, cable 1
Loading…
↗
32
6EE4279440
Label, warning (general)
Loading…
↗
33
6EE4279450
Label, warning (general)
Loading…
↗
