VF115A (2023)
BOTTOM COWLING 1

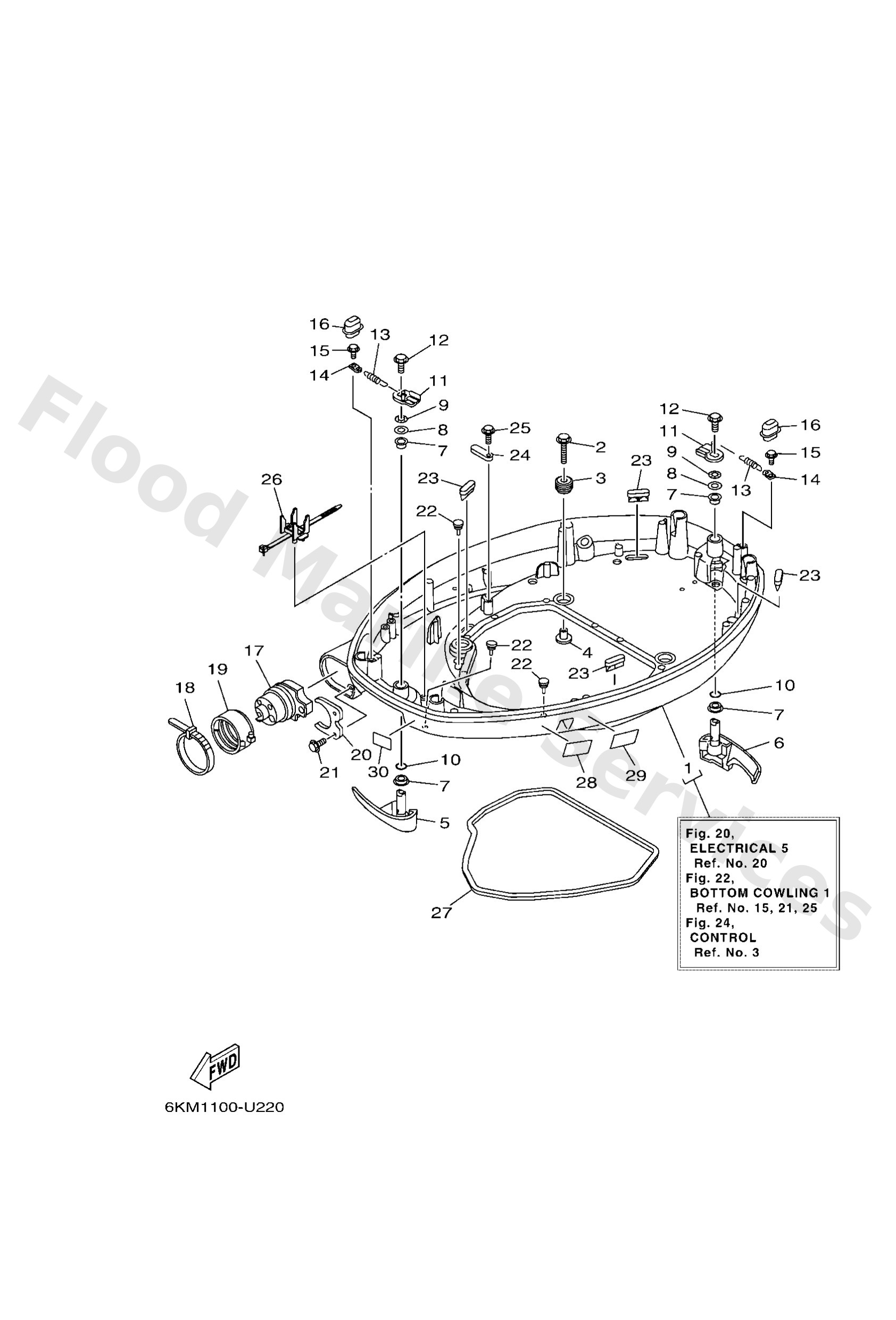

Diagram: BOTTOM COWLING 1
Parts List
Reference
Description
Price
1
6EK4271001
Bottom cowling assembly
Loading…
↗
2
9011908187
Bolt, with washer
Loading…
↗
3
9048022M15
Grommet (6e5)
Loading…
↗
4
9038708M37
Coller (6e5)
Loading…
↗
5
6EK42815018D
Lever, clamp
Loading…
↗
6
6EK42816018D
Lever, clamp
Loading…
↗
7
9038615M73
Bush(6l2)
Loading…
↗
8
90201156J2
Washer, plate(j41)
Loading…
↗
9
9020615M18
Washer, wave(6l2)
Loading…
↗
10
9321013M63
O-ring (6g8)
Loading…
↗
11
6CB4281800
Lever, clamp
Loading…
↗
12
95D9508012
Bolt, flange deep recess
Loading…
↗
13
9050622001
Spring, tension
Loading…
↗
14
66T4314400
Hook, spring
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
6EK4272801
Cap
Loading…
↗
17
6EK4272510
Grommet
Loading…
↗
18
9046420258
AP
Clamp
Loading…
↗
19
68F4275300
AP
Fastner
Loading…
↗
20
6CB4276100
Stopper
Loading…
↗
21
9010906316
Bolt
Loading…
↗
22
6H44274801
Grommet
Loading…
↗
23
67F4271700
Rubber, seal 2
Loading…
↗
24
6E58258800
Plate
Loading…
↗
25
9010906M81
Bolt
Loading…
↗
26
6888259400
Clamp
Loading…
↗
27
6EK4271601
Rubber seal 1
Loading…
↗
28
6EE4279440
Label, warning (general)
Loading…
↗
29
6EE4279450
Label, warning (general)
Loading…
↗
30
6AH8199600
Mark
Loading…
↗
