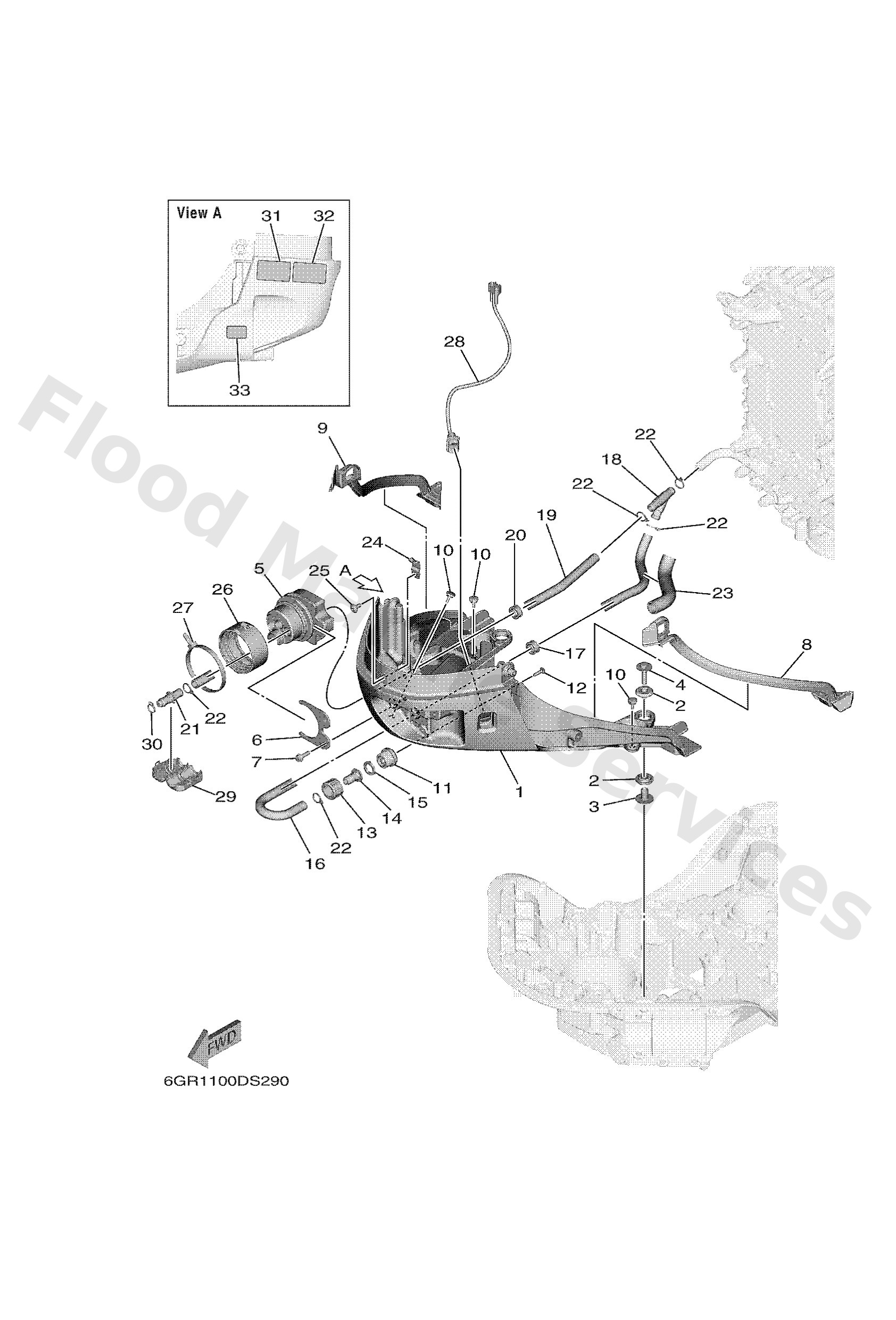

Diagram: BOTTOM COWLING 1

Diagram

Parts List

Reference
Description
Price


1
6GR42711008D
Cowling, bottom 1
Loading…

↗
2
9048022M81
Grommet
Loading…

↗
3
9038708M37
Coller (6e5)
Loading…

↗
4
9011908M22
Bolt, with washer
Loading…

↗
5
6GR4272500
Grommet
Loading…

↗
6
6GR4276100
Stopper
Loading…

↗
7
9589506020
Bolt, flange(jk3)
Loading…

↗
8
6GR4271700
Rubber, seal 2
Loading…

↗
9
6GR4271800
Rubber, seal 3
Loading…

↗
10
6H44274800
Grommet
Loading…

↗
11
6R31257200
Adapter
Loading…

↗
12
9016905M00
Screw truss head tapping
Loading…

↗
13
6R31258100
Joint, hose 1
Loading…

↗
14
6GR1258200
Joint, hose 2
Loading…

↗
15
6R31258300
Gasket, hose joint
Loading…

↗
16
6GR1257700
Hose 2
Loading…

↗
17
9048020M05
Grommet (688)
Loading…

↗
18
6GR2437800
Pipe, joint 3
Loading…

↗
19
9044516025
Hose
Loading…

↗
21
6GR8355800
End, nipple
Loading…

↗
22
9046511M10
Clamp
Loading…

↗
23
9044523003
Hose
Loading…

↗
24
6GR4455400
Plate
Loading…

↗
25
9011106144
Bolt,hex. socket button
Loading…

↗
26
6GR4275300 AP
Fastner
Loading…

↗
27
9046499006 AP
Clamp
Loading…

↗
28
6GR8256300
Trim & tilt switch assembly
Loading…

↗
29
6GR2445200 AP
Cover
Loading…

↗
30
9046015227 AP
Band (made in canada)
Loading…

↗
31
6EE4279440
Label, warning (general)
Loading…

↗
32
6EE4279450
Label, warning (general)
Loading…

↗
33
6AH8199600
Mark
