F130AET (2017)
BOTTOM COWLING 2

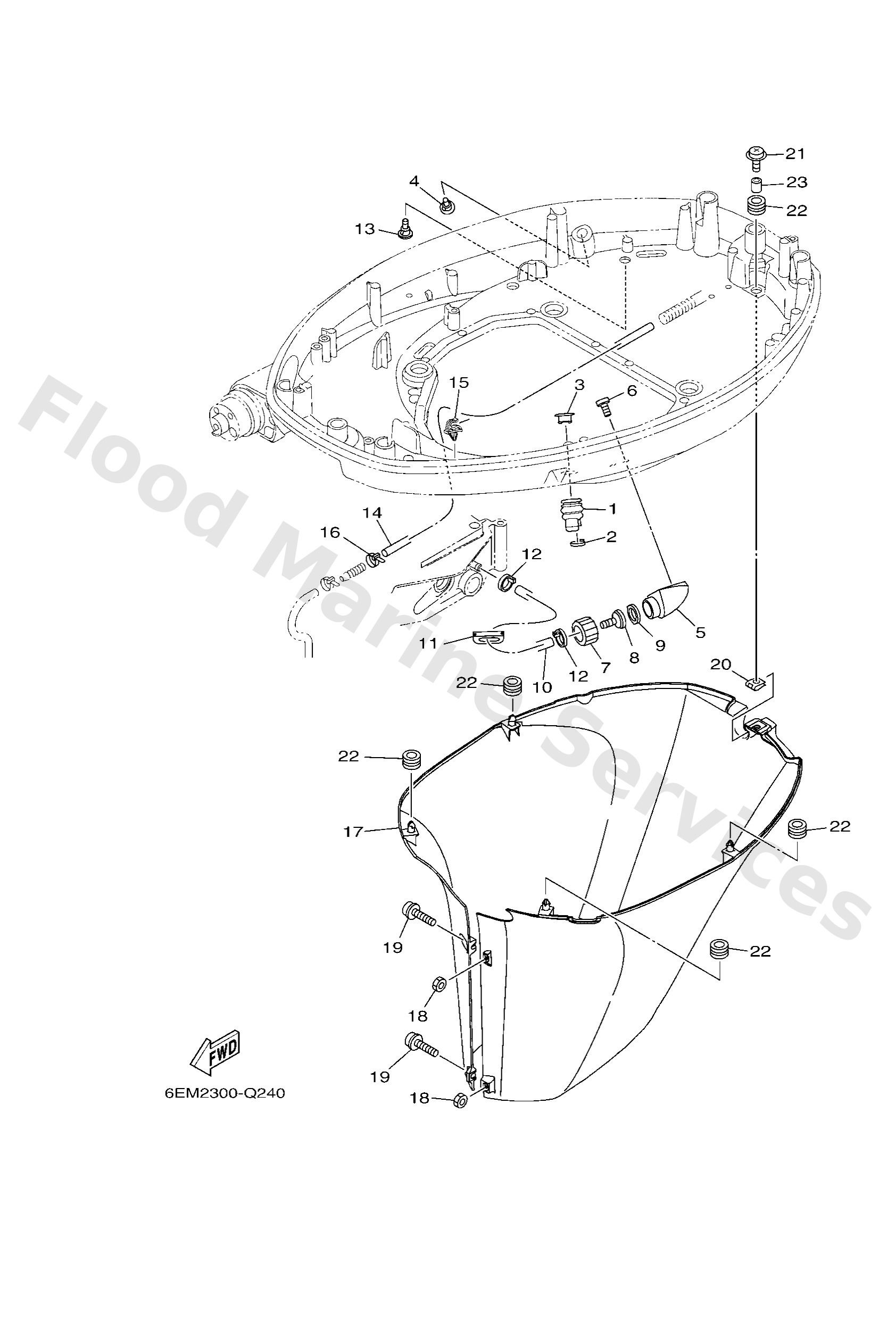

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272630
Grommet
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
6BG4238400
Seal, cap
Loading…
↗
4
6P24439100
Nipple, hose
Loading…
↗
5
6AW1257200
Adapter
Loading…
↗
6
9778060520
Screw, tapping(6k8)
Loading…
↗
7
6R31258100
Joint, hose 1
Loading…
↗
8
6R31258200
Joint, hose 2
Loading…
↗
9
6R31258300
Gasket, hose joint
Loading…
↗
10
6EK4254100
Pipe 1
Loading…
↗
11
6AH4272600
Grommet
Loading…
↗
14
90445073F9
Hose (l1700)
Loading…
↗
15
9046407259
Clamp
Loading…
↗
17
6EK42741008D
Apron
Loading…
↗
18
9538006600
Nut(661)
Loading…
↗
19
9015906M28
Screw, with washer
Loading…
↗
20
90183061A8
Nut, spring
Loading…
↗
21
9015906053
Screw, with washer
Loading…
↗
22
9048013M24
Grommet (6e9)
Loading…
↗
23
9038706M43
Coller (6e9)
Loading…
↗
