F175AET (2014)
BOTTOM COWLING 2

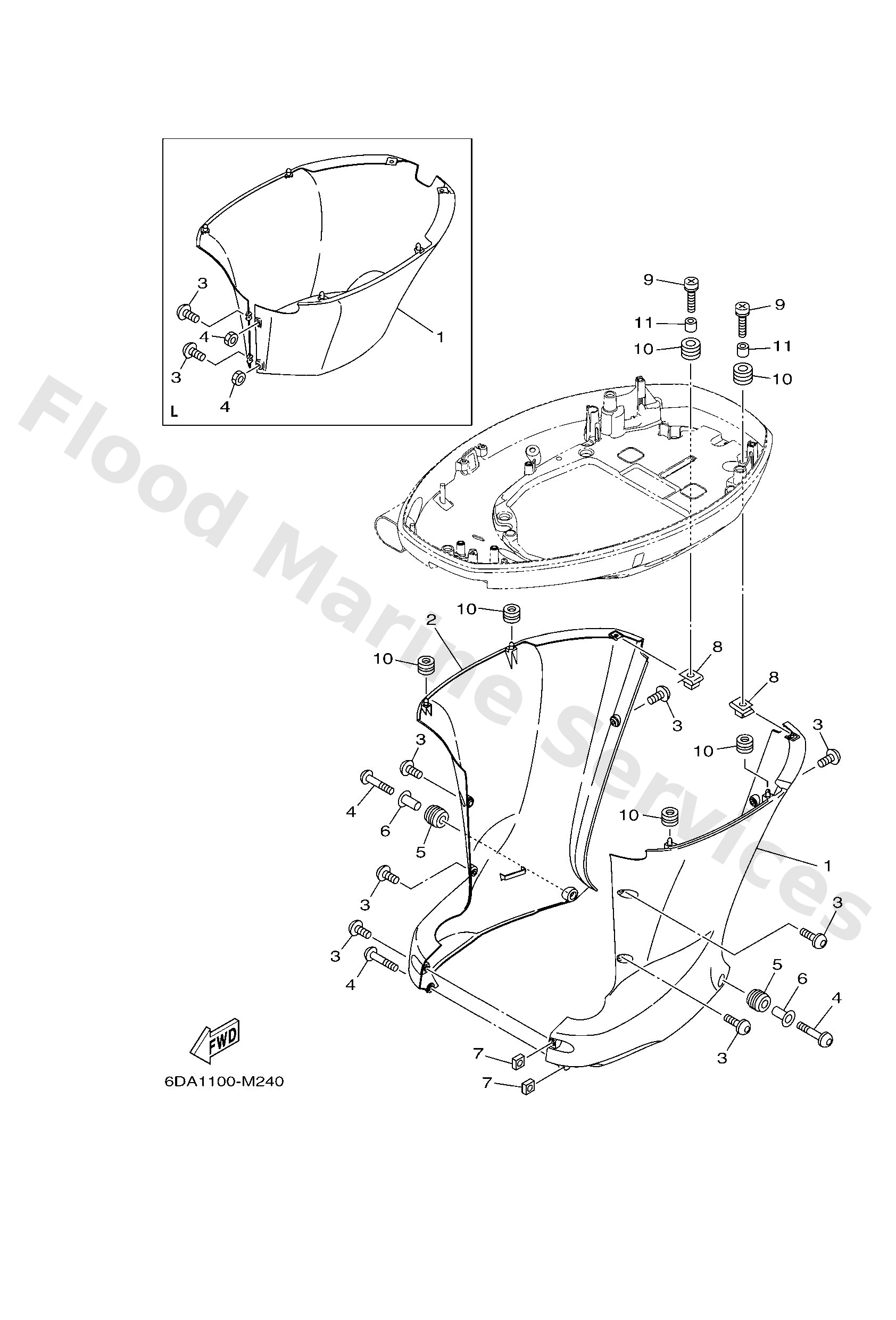

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6DA42741108D
L(20.3")
Apron
Loading…
↗
1
6DA4274000
X(25.3")
Apron complete 1 & nut
Loading…
↗
2
6DA4277000
X(25.3")
Apron complete 2 & nut
Loading…
↗
3
9015906M28
L(20.3")
Screw, with washer
Loading…
↗
3
9011106144
X(25.3")
Bolt,hex. socket button
Loading…
↗
4
9538006600
L(20.3")
Nut(661)
Loading…
↗
4
9011106142
X(25.3")
Bolt,hex. socket button
Loading…
↗
5
9048016009
X(25.3")
Grommet
Loading…
↗
6
9038707028
X(25.3")
Collar
Loading…
↗
7
9017306001
X(25.3")
Nut, square
Loading…
↗
8
90183061A6
Nut, spring
Loading…
↗
9
9015906053
Screw, with washer
Loading…
↗
10
9048013M24
Grommet (6e9)
Loading…
↗
11
9038706M43
Coller (6e9)
Loading…
↗
