F225AET (2003)
BOTTOM COWLING 2

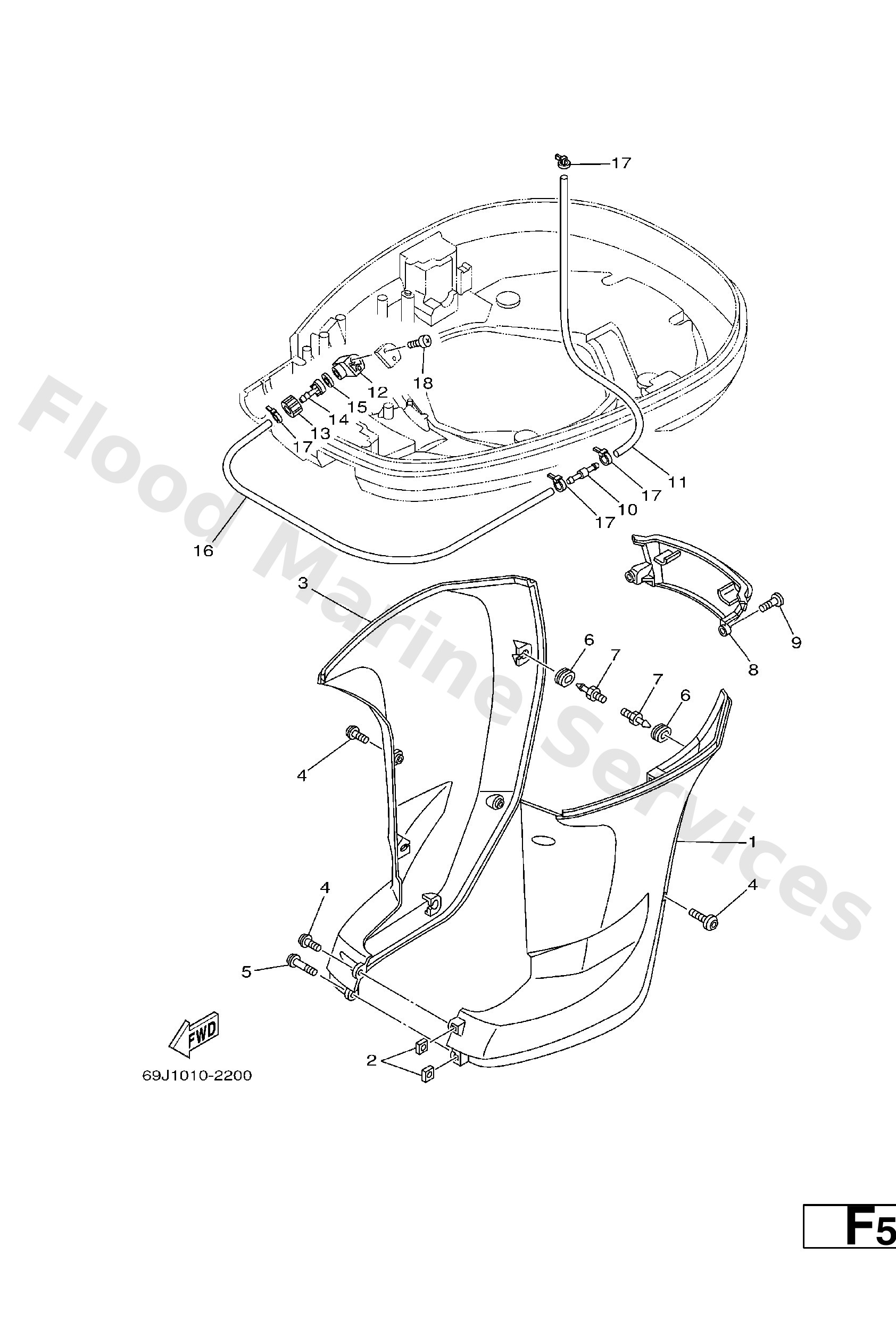

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
69J−42741−00−8D
Apron
Loading…
↗
1
69J--42741--00--8D
Apron
Loading…
↗
2
90173--06001
Nut, square
Loading…
↗
2
90173−06001
Nut, square
Loading…
↗
3
69J--42771--00--8D
Apron
Loading…
↗
3
69J−42771−00−8D
Apron
Loading…
↗
4
9011106025
Bolt,hex. socket button
Loading…
↗
4
90111−06025
Bolt,hex. socket button
Loading…
↗
5
90111−06026
Bolt,hex. socket button
Loading…
↗
5
9011106026
Bolt,hex. socket button
Loading…
↗
6
90480−14M17
Grommet(6j8)
Loading…
↗
6
90480--14M17
Grommet(6j8)
Loading…
↗
7
69J−42774−00
Stay, apron 1
Loading…
↗
7
69J4277400
Stay, apron 1
Loading…
↗
8
69J--45151--00--8D
Cover, upper casing
Loading…
↗
8
69J−45151−00−8D
Cover, upper casing
Loading…
↗
10
6E5−24379−00
Pipe, joint 4
Loading…
↗
10
6E5--24379--00
Pipe, joint 4
Loading…
↗
11
90445−11012
Hose (l600)
Loading…
↗
11
9044511012
Hose (l600)
Loading…
↗
12
68T−12572−00
Adapter
Loading…
↗
12
68T--12572--00
Adapter
Loading…
↗
13
6R3--12581--00
Joint, hose 1
Loading…
↗
13
6R3−12581−00
Joint, hose 1
Loading…
↗
14
6R3--12582--00
Joint, hose 2
Loading…
↗
14
6R3−12582−00
Joint, hose 2
Loading…
↗
15
6R3--12583--00
Gasket, hose joint
Loading…
↗
15
6R3−12583−00
Gasket, hose joint
Loading…
↗
16
90445--11028
Hose (l1050)
Loading…
↗
16
90445−11028
Hose (l1050)
Loading…
↗
17
90465--11M10
Clamp
Loading…
↗
17
90465−11M10
Clamp
Loading…
↗
18
97780--60520
Screw, tapping(6k8)
Loading…
↗
18
97780−60520
Screw, tapping(6k8)
Loading…
↗
