F250NCB2 (2022)
BOTTOM COWLING 2

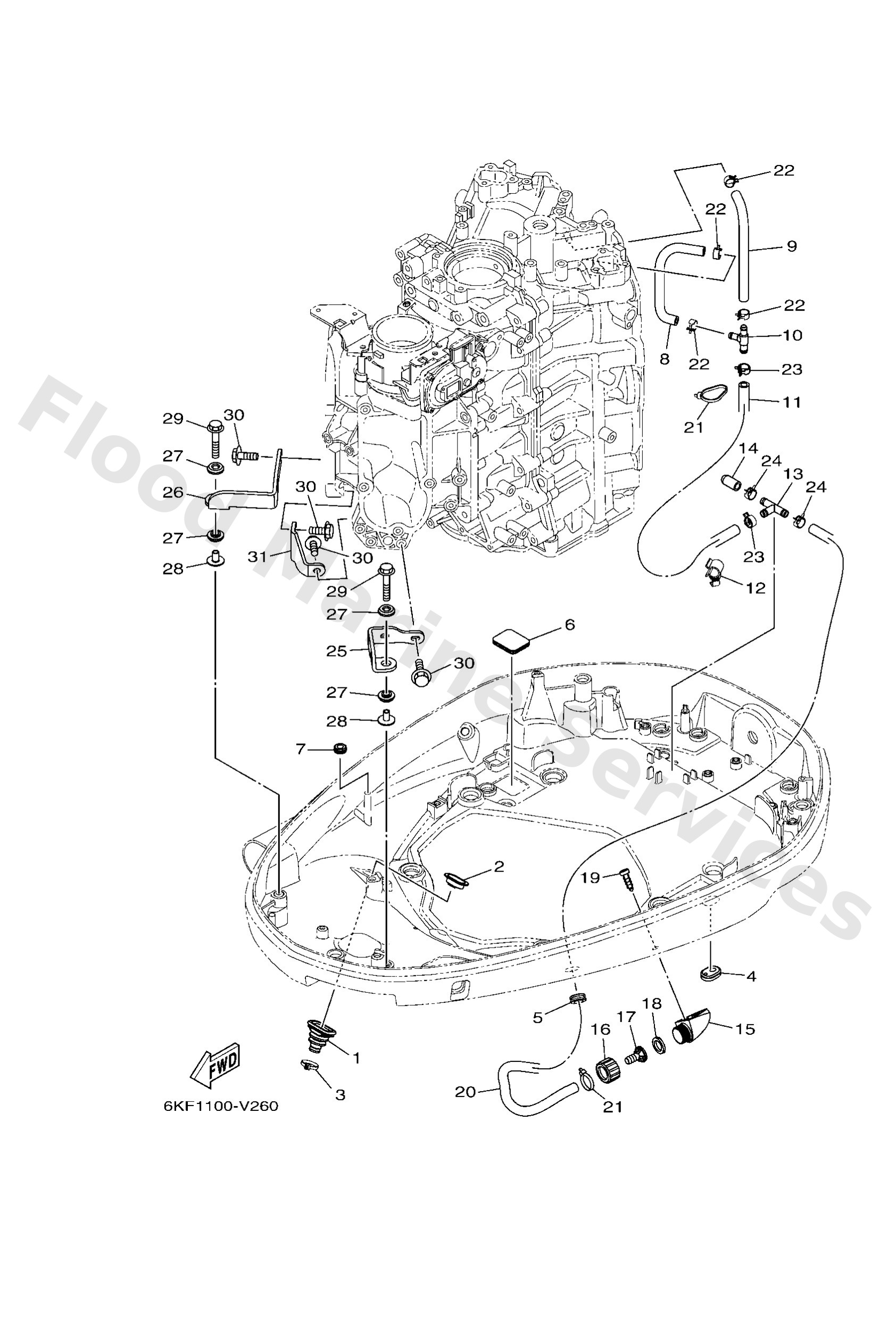

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6BG4272401
Grommet
Loading…
↗
2
6BG4238400
Seal, cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6KA4272700
Grommet
Loading…
↗
5
9048019031
Grommet(75v)
Loading…
↗
6
6KF4388500
Grommet
Loading…
↗
7
9048013163
Grommet (1e5)
Loading…
↗
8
6CB2431500
Pipe 5
Loading…
↗
9
9044514021
Hose
Loading…
↗
10
6AW4216900
Joint
Loading…
↗
11
6KA1358200
Pipe
Loading…
↗
12
9046416017
Clamp
Loading…
↗
13
9041310001
Way 3
Loading…
↗
14
6KA1358700
Cap, joint
Loading…
↗
15
6AW1257200
Adapter
Loading…
↗
16
6R31258100
Joint, hose 1
Loading…
↗
17
6AW1258200
Joint, hose 2
Loading…
↗
18
6R31258300
Gasket, hose joint
Loading…
↗
19
9778060520
Screw, tapping(6k8)
Loading…
↗
20
6KA4254100
Pipe 1
Loading…
↗
22
90467130A5
Clip
Loading…
↗
23
90467140A8
Clip
Loading…
↗
24
90467140A9
Clip
Loading…
↗
25
6CB4264300
Plate, clamp
Loading…
↗
26
6CB4264400
Plate, clamp 2
Loading…
↗
27
9048014029
Grommet
Loading…
↗
28
9038706M03
Collar (676)
Loading…
↗
29
9011906291
Bolt, with washer
Loading…
↗
30
9010506039
Bolt, flange
Loading…
↗
31
6CB4274400
Stay
Loading…
↗
