F40FED (2015)
BOTTOM COWLING 2

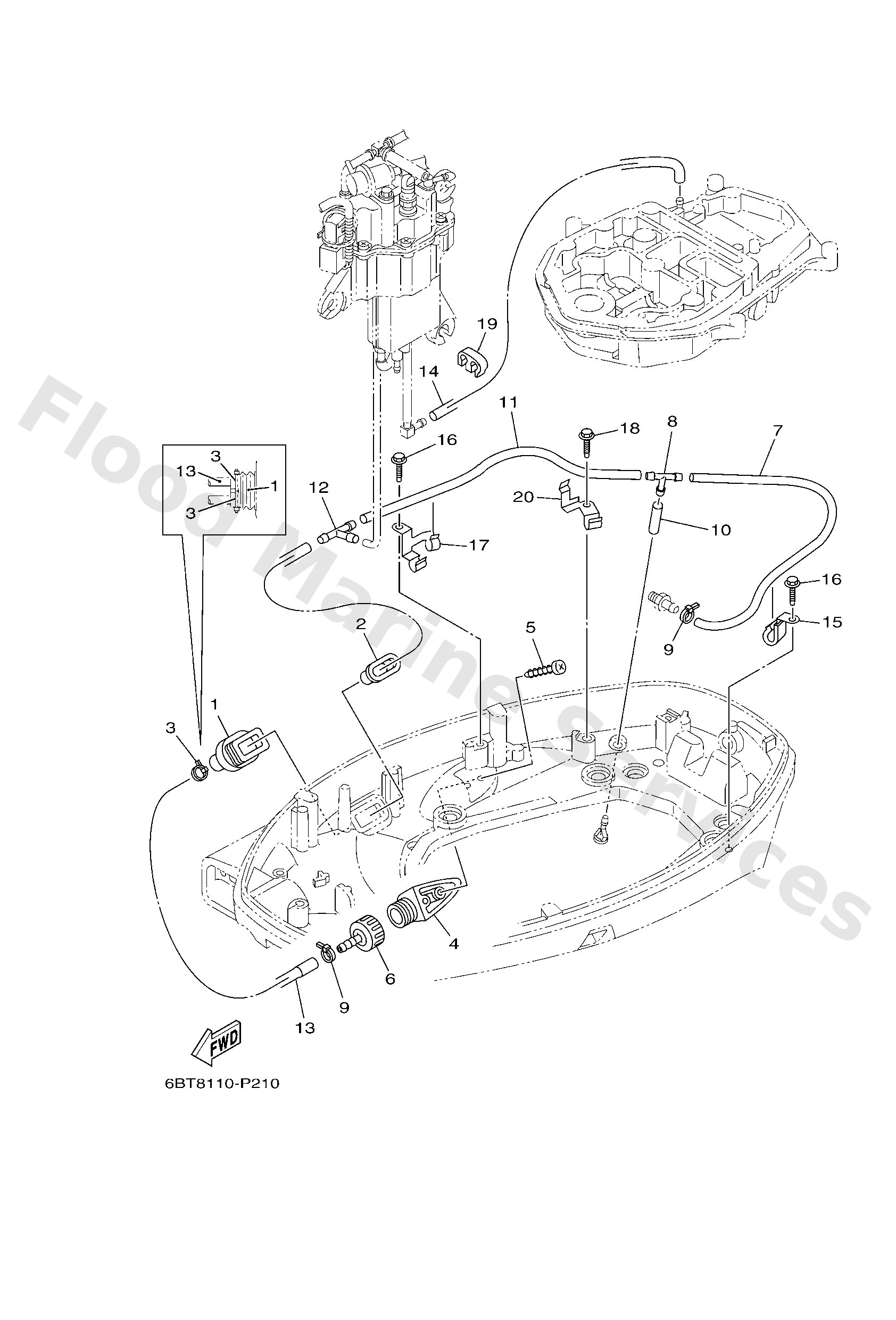

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272621
Grommet
Loading…
↗
2
6BG4238400
Seal, cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6AW1257200
Adapter
Loading…
↗
5
9778060520
Screw, tapping(6k8)
Loading…
↗
6
6R31258000
Joint assembly
Loading…
↗
7
9044509035
Hose (l420)
Loading…
↗
8
6882437800
Pipe, joint
Loading…
↗
10
9044509220
Hose (l1500)
Loading…
↗
11
9044509224
Hose (l1500)
Loading…
↗
13
6BG1248100
Pipe 1
Loading…
↗
14
6A12431100
Pipe 1
Loading…
↗
15
9046208067
Clamp
Loading…
↗
16
9010906M86
Bolt
Loading…
↗
17
6BG2413501
Clamp 1
Loading…
↗
19
9046409M21
Clamp(6j8)
Loading…
↗
20
6BG2413601
Clamp 2
Loading…
↗
