F40FED (2021)
BOTTOM COWLING 2

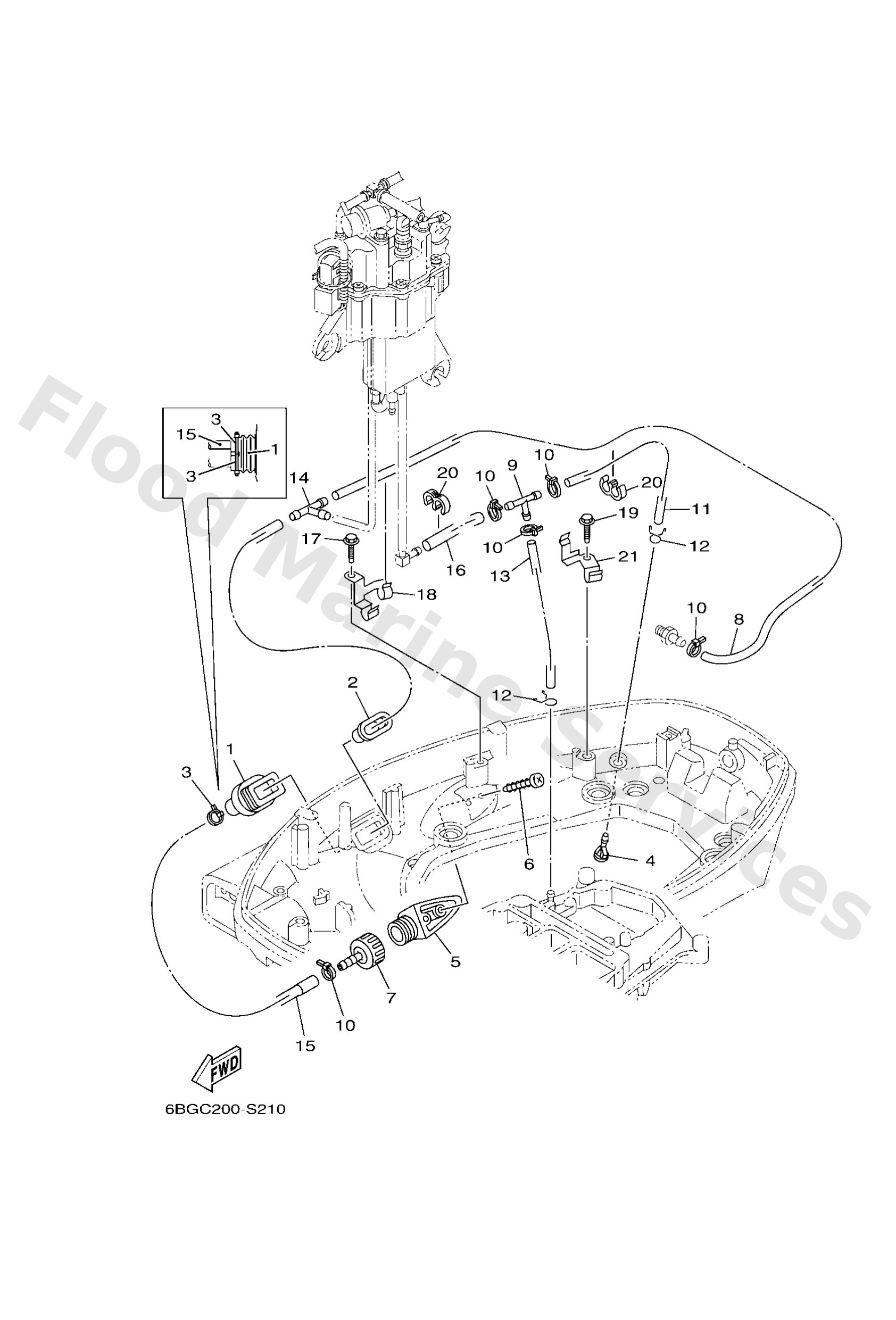

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272622
Grommet
Loading…
↗
2
6BG4238400
Seal, cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6BG4439100
Nipple, hose
Loading…
↗
5
6AW1257200
Adapter
Loading…
↗
6
9778060520
Screw, tapping(6k8)
Loading…
↗
7
6R31258000
Joint assembly
Loading…
↗
8
6BG4254100
Pipe 1
Loading…
↗
9
6882437800
Pipe, joint
Loading…
↗
11
6BG4254200
Pipe
Loading…
↗
12
9046708M18
Clip
Loading…
↗
13
6BG2431400
Pipe 4
Loading…
↗
15
6BG1248100
Pipe 1
Loading…
↗
16
9044509091
Hose (l135)
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
6BG2413501
Clamp 1
Loading…
↗
20
9046409M21
Clamp(6j8)
Loading…
↗
21
6BG2413601
Clamp 2
Loading…
↗
