F50HET (2021)
BOTTOM COWLING 2

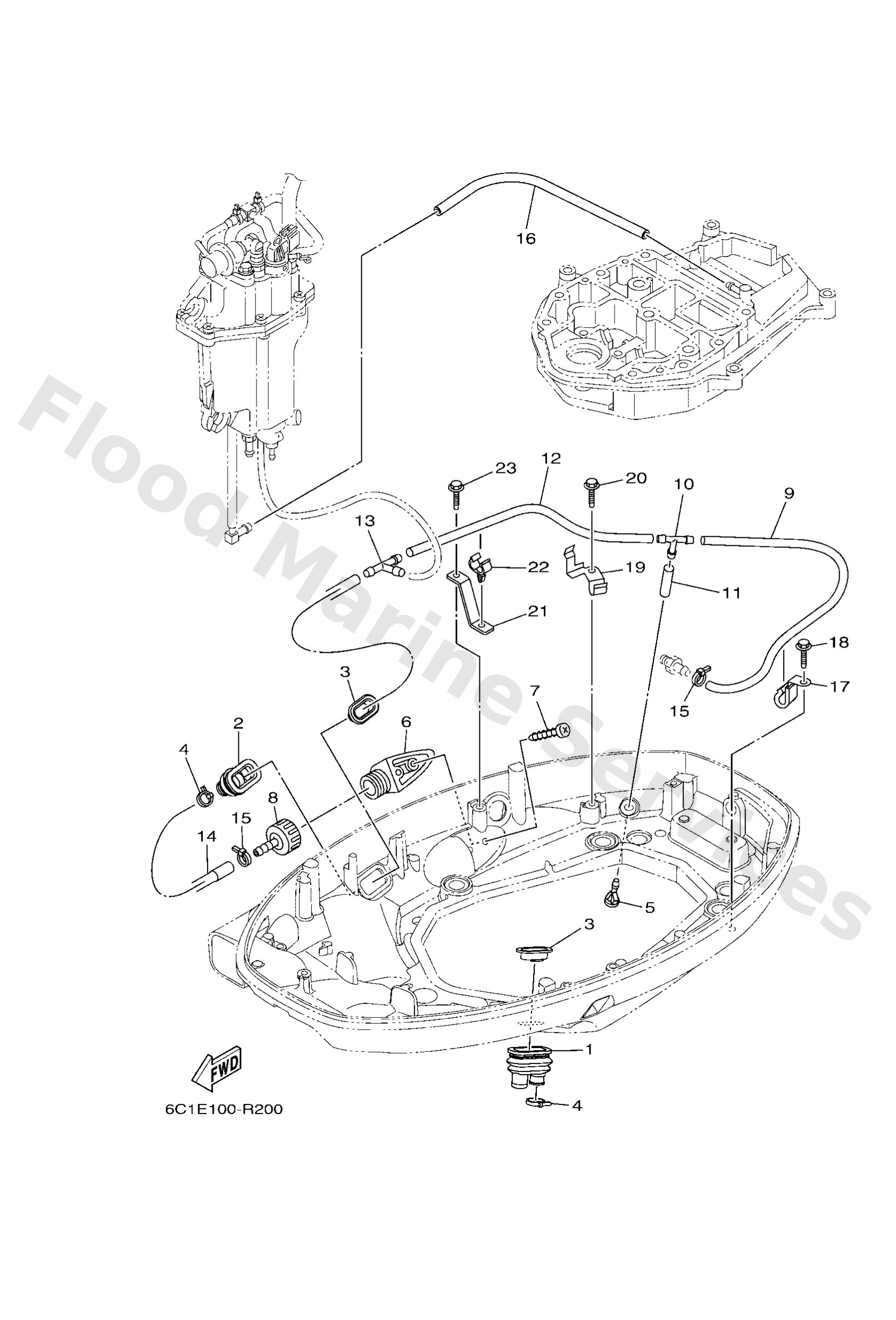

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272631
Grommet
Loading…
↗
2
6BG4272401
Grommet
Loading…
↗
3
6BG4238400
Seal, cap
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
6BL4439100
Nipple, hose
Loading…
↗
6
6AW1257200
Adapter
Loading…
↗
7
9778060520
Screw, tapping(6k8)
Loading…
↗
8
6R31258000
Joint assembly
Loading…
↗
9
9044509036
Hose (l400)
Loading…
↗
10
6882437800
Pipe, joint
Loading…
↗
11
9044509220
Hose (l1500)
Loading…
↗
12
90445096H2
Hose (l1500)
Loading…
↗
14
6BG1248100
Pipe 1
Loading…
↗
16
9044509304
Hose (l1500)
Loading…
↗
17
9046208067
Clamp
Loading…
↗
18
9010906M86
Bolt
Loading…
↗
19
6BG2413601
Clamp 2
Loading…
↗
21
6CJ2413500
Clamp 1
Loading…
↗
22
9046409130
Clamp(3ld)
Loading…
↗
