F70AET (2016)
BOTTOM COWLING 2

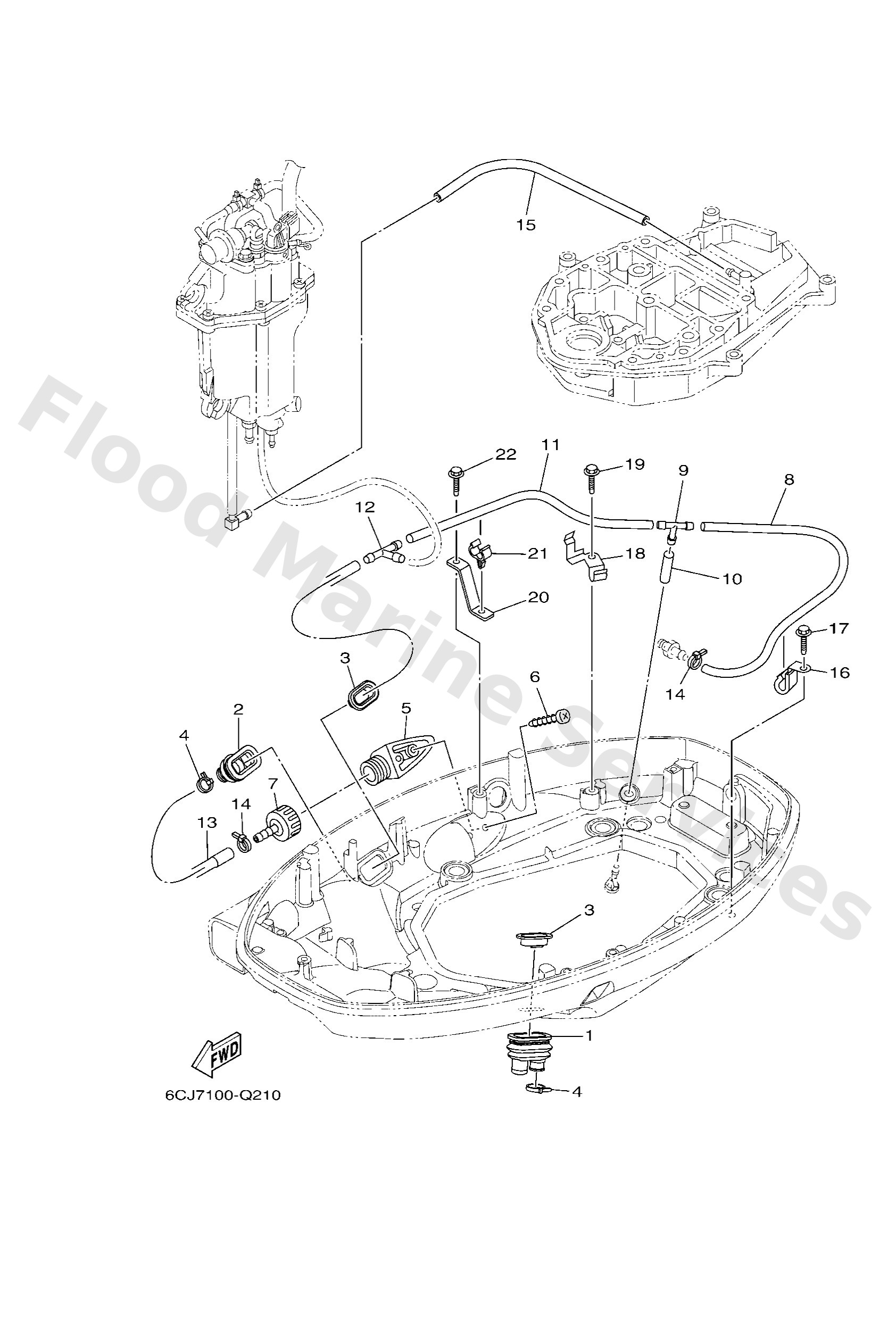

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272630
Grommet
Loading…
↗
2
6BG4272400
Grommet
Loading…
↗
3
6BG4238400
Seal, cap
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
6AW1257200
Adapter
Loading…
↗
6
9778060520
Screw, tapping(6k8)
Loading…
↗
7
6R31258000
Joint assembly
Loading…
↗
8
9044509036
Hose (l400)
Loading…
↗
9
6882437800
Pipe, joint
Loading…
↗
10
9044509220
Hose (l1500)
Loading…
↗
11
90445096H2
Hose (l1500)
Loading…
↗
13
6BG1248100
Pipe 1
Loading…
↗
15
9044509304
Hose (l1500)
Loading…
↗
16
9046208067
Clamp
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
6BG2413601
Clamp 2
Loading…
↗
20
6CJ2413500
Clamp 1
Loading…
↗
21
9046409130
Clamp(3ld)
Loading…
↗
