FL225BET (2011)
BOTTOM COWLING 2

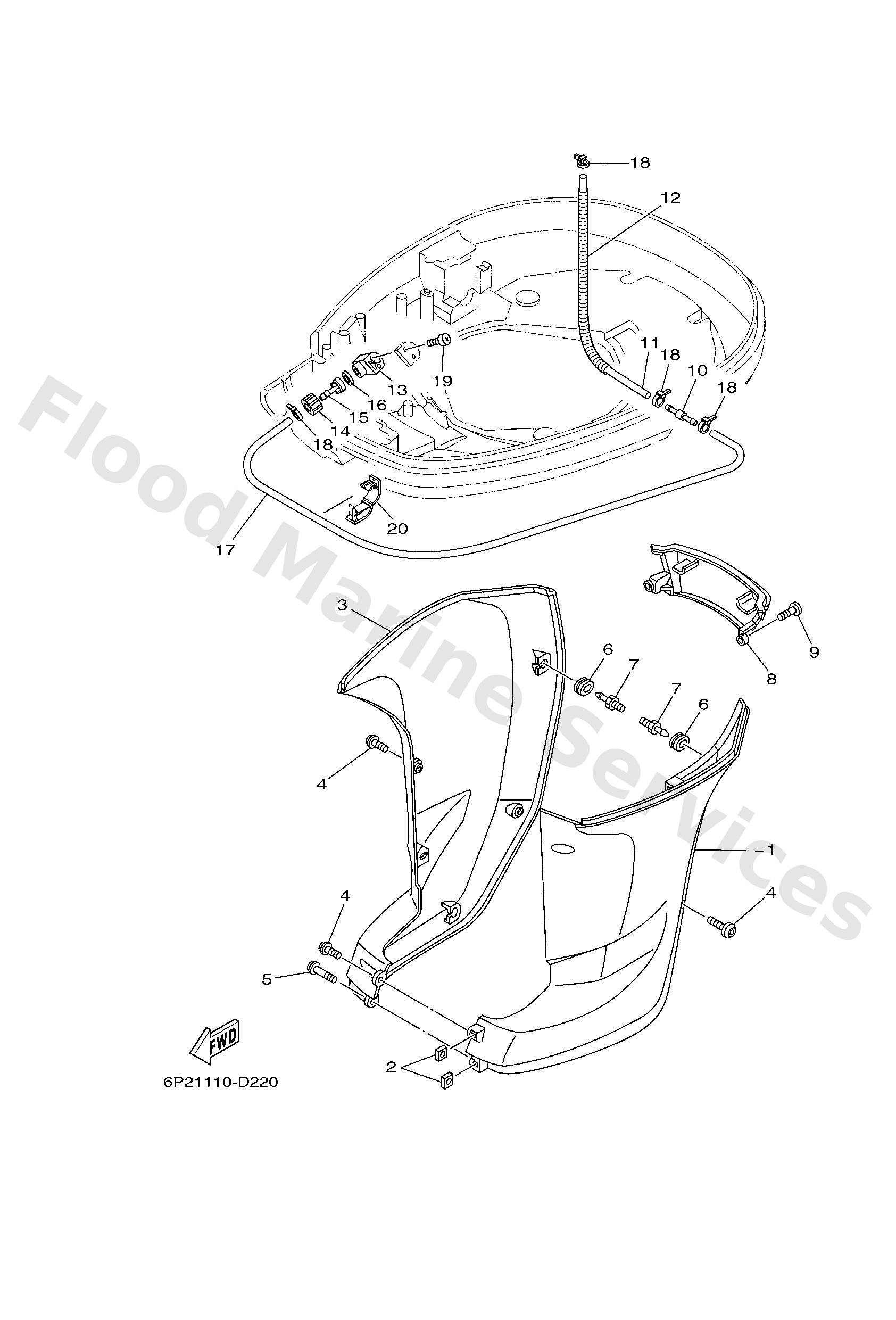

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
69J42741008D
Apron
Loading…
↗
2
9017306001
Nut, square
Loading…
↗
3
69J42771008D
Apron
Loading…
↗
4
9011106111
Bolt,hex. socket button
Loading…
↗
5
9011106113
Bolt,hex. socket button
Loading…
↗
6
9048014M17
Grommet(6j8)
Loading…
↗
7
69J4277410
Stay, apron 1
Loading…
↗
8
69J45151008D
Cover, upper casing
Loading…
↗
10
6E52437900
Pipe, joint 4
Loading…
↗
11
9044511M47
Hose (l390)
Loading…
↗
12
9044713009
Hose, with spring
Loading…
↗
13
68T1257200
Adapter
Loading…
↗
14
6R31258100
Joint, hose 1
Loading…
↗
15
6R31258200
Joint, hose 2
Loading…
↗
16
6R31258300
Gasket, hose joint
Loading…
↗
17
9044511028
Hose (l1050)
Loading…
↗
18
9046511M10
Clamp
Loading…
↗
19
9778060520
Screw, tapping(6k8)
Loading…
↗
20
9046418004
Clamp
Loading…
↗
