FL225HET (2020)
BOTTOM COWLING 2

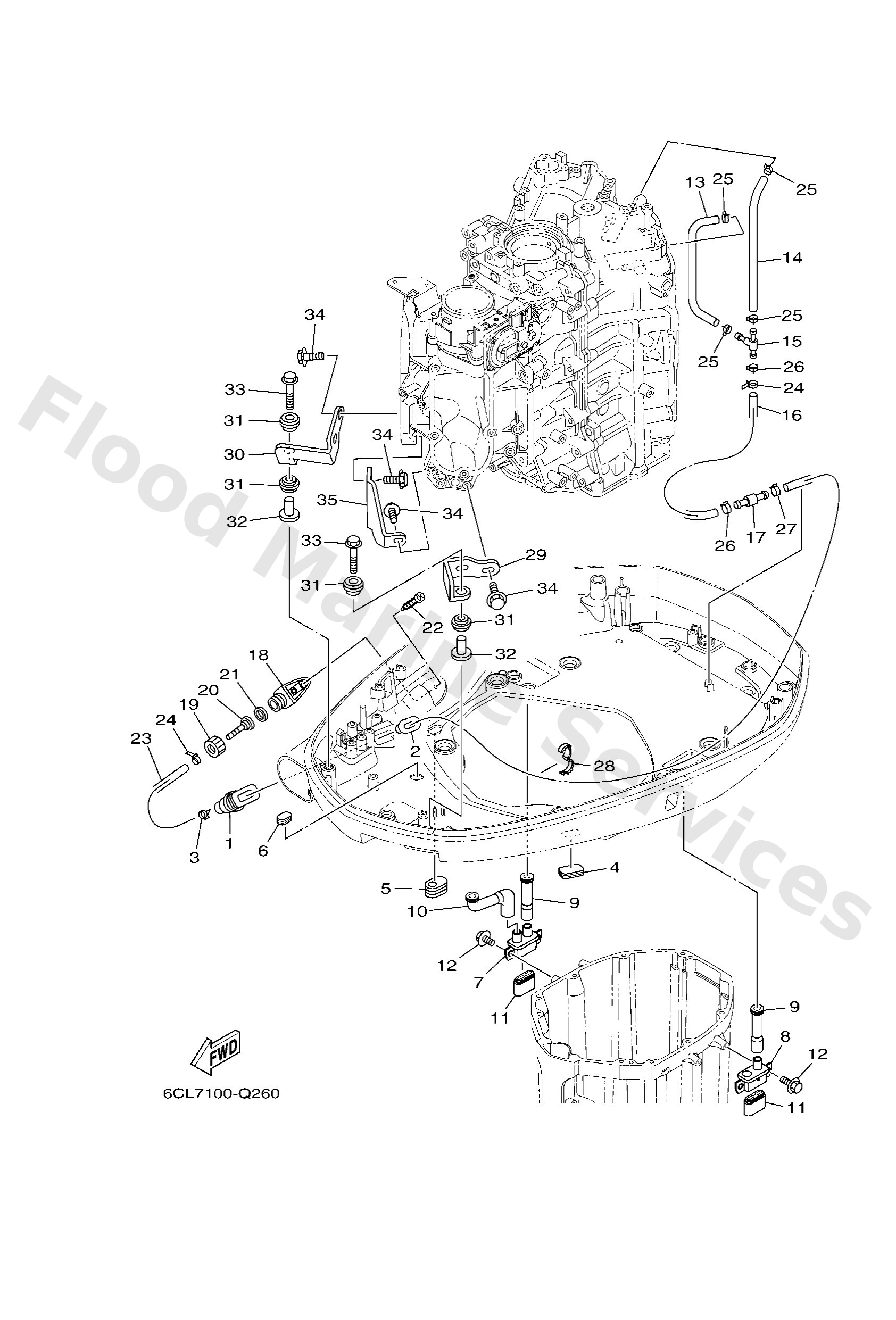

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272621
21
Loading…
↗
2
6BG4238400
Seal, Cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6H44272600
16
Loading…
↗
5
61A4272700
21
Loading…
↗
6
64G4272700
Grommet
Loading…
↗
7
6CE4273300
Box, drain
Loading…
↗
8
6CE4273400
Box, drain 2
Loading…
↗
9
6CE4278601
Hose, drain 1
Loading…
↗
10
6CE4278701
Hose, drain 2
Loading…
↗
11
69J4271700
Rubber, Seal 2
Loading…
↗
12
95D9506016
Bolt, flange deep recess
Loading…
↗
13
6CB2431500
Pipe 5
Loading…
↗
14
9044514021
Hose
Loading…
↗
15
6AW4216900
Joint
Loading…
↗
16
9044516015
Hose
Loading…
↗
17
6AW4278500
Pipe
Loading…
↗
18
6AW1257200
Adapter
Loading…
↗
19
6R31258100
Joint, Hose 1
Loading…
↗
20
6AW1258200
Joint, Hose 2
Loading…
↗
21
6R31258300
Gasket, Hose Joint
Loading…
↗
22
9778060520
Screw, Tapping
Loading…
↗
23
9044514019
Hose
Loading…
↗
25
90467130A5
Clip
Loading…
↗
26
90467140A8
Clip
Loading…
↗
27
90467140A9
Clip
Loading…
↗
28
9046416001
Clamp
Loading…
↗
29
6CB4264300
Plate, clamp
Loading…
↗
30
6CB4264400
Plate, clamp 2
Loading…
↗
31
9048014029
Grommet
Loading…
↗
32
9038706M03
Collar
Loading…
↗
33
9011906291
Bolt, with washer
Loading…
↗
34
9010506039
3
Loading…
↗
35
6CB4274400
Stay
Loading…
↗
