FL300AET (2008)
BOTTOM COWLING 2

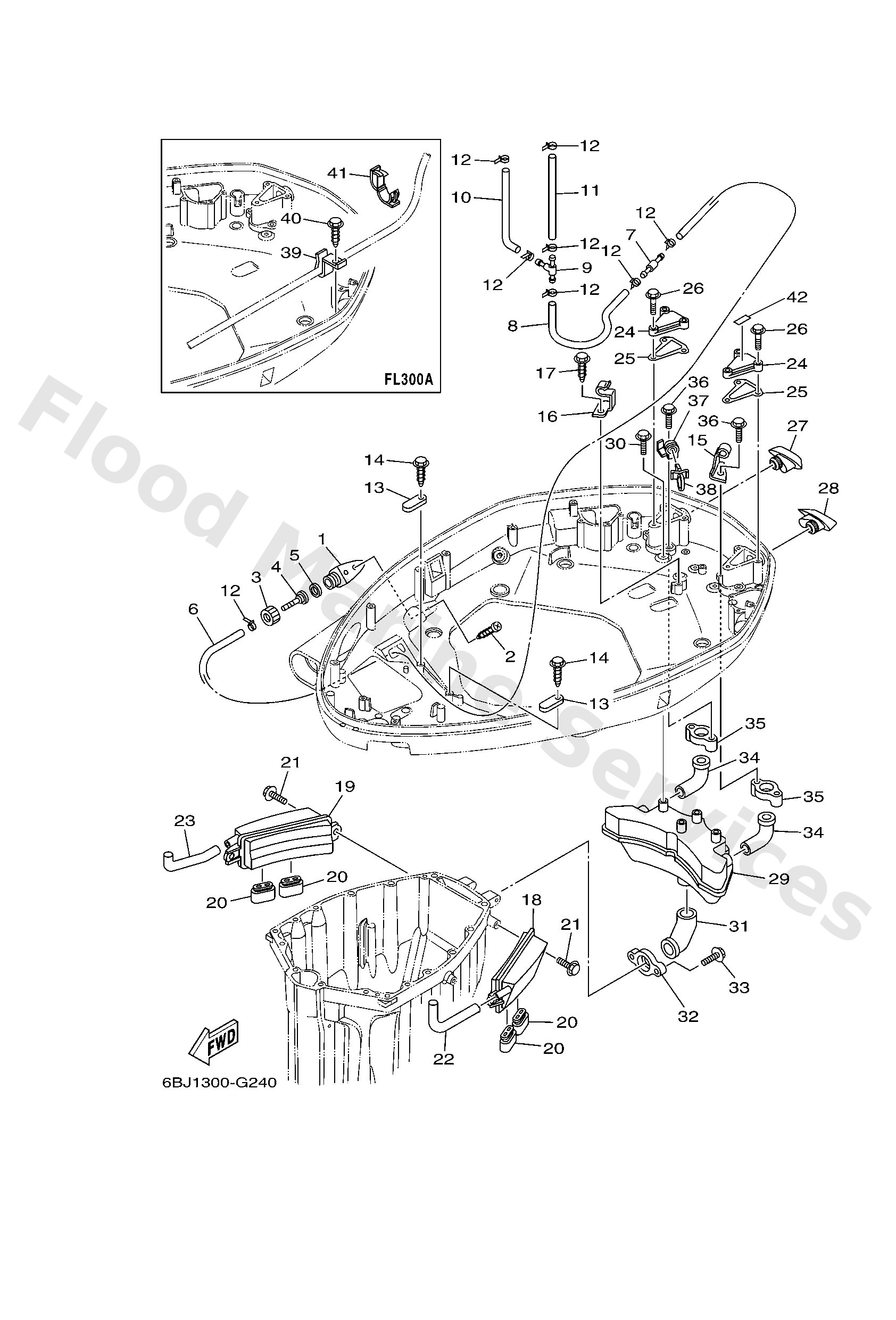

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6AW1257200
Adapter
Loading…
↗
2
9778060520
Screw, tapping(6k8)
Loading…
↗
3
6R31258100
Joint, hose 1
Loading…
↗
4
6AW1258200
Joint, hose 2
Loading…
↗
5
6R31258300
Gasket, hose joint
Loading…
↗
6
9044514015
Hose
Loading…
↗
7
6AW4278500
Pipe
Loading…
↗
8
9044514013
Hose
Loading…
↗
9
6AW4216900
Joint
Loading…
↗
10
66V2431400
Pipe 4
Loading…
↗
11
90445116J1
Hose (l210)
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
6E58258800
Plate
Loading…
↗
14
9010906M81
Bolt
Loading…
↗
15
9046508M82
Clamp
Loading…
↗
16
6AW4274400
Stay
Loading…
↗
17
9010906M86
Bolt
Loading…
↗
18
6AW4273300
Box, drain
Loading…
↗
19
6AW4273400
Box, drain 2
Loading…
↗
20
69J4271700
Rubber, seal 2
Loading…
↗
21
9589506016
Bolt, flange deep recess
Loading…
↗
22
6AW4278600
Hose, drain 1
Loading…
↗
23
6AW4278700
Hose, drain 2
Loading…
↗
24
6AW42723008D
Cover, bottom
Loading…
↗
25
6AW4272100
Gasket 1
Loading…
↗
27
6AW4276900
Seal, rubber
Loading…
↗
28
6AW4262900
Seal
Loading…
↗
29
6AW1475000
Silencer assembly
Loading…
↗
30
9587506016
Bolt, flange deep recess
Loading…
↗
31
6AW1475E00
Pipe 2
Loading…
↗
32
6AW1476300
Spacer
Loading…
↗
33
9587506025
Bolt, flange deep recess
Loading…
↗
34
6AW1475F00
Pipe 3
Loading…
↗
35
6AW14764005B
Spacer
Loading…
↗
37
6AW8339X00
Clamp, cord
Loading…
↗
38
9046412001
Clamp
Loading…
↗
39
6AX8257G00
Clamp, cord
Loading…
↗
41
9046418001
Clamp
Loading…
↗
42
68V8237700
Label
Loading…
↗
