FT25FET (2019)
BOTTOM COWLING 2

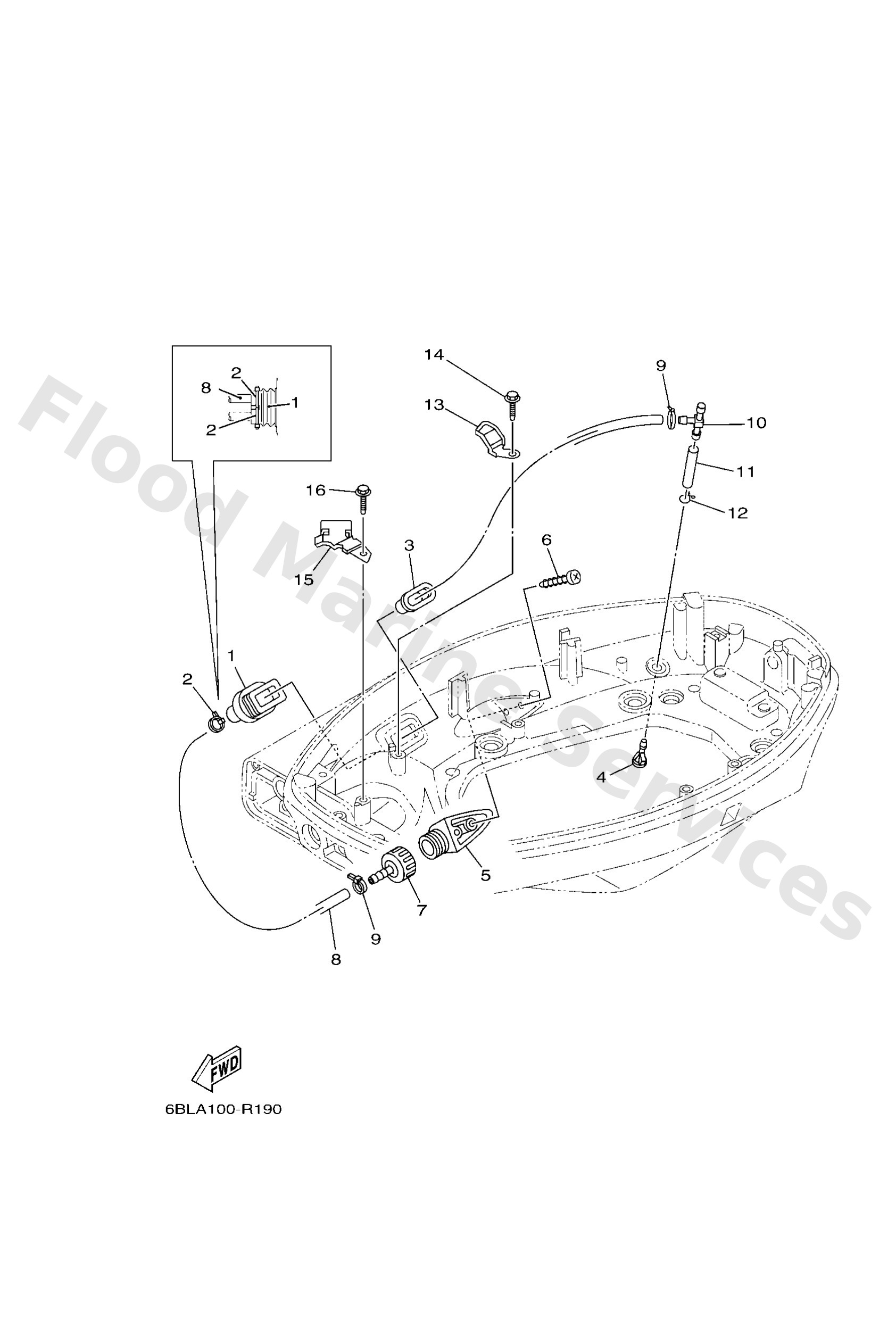

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6H14272621
Grommet
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
6BG4238400
Seal, cap
Loading…
↗
4
6BL4439100
Nipple, hose
Loading…
↗
5
6AW1257200
Adapter
Loading…
↗
6
9778060520
Screw, tapping(6k8)
Loading…
↗
7
6R31258000
Joint assembly
Loading…
↗
8
9044511153
Hose (l800)
Loading…
↗
10
6C52437800
Pipe, joint 4
Loading…
↗
11
9044509057
Hose (l180)
Loading…
↗
12
9046708M18
Clip
Loading…
↗
13
6BL2439600
Plate
Loading…
↗
14
9010906M86
Bolt
Loading…
↗
15
6BL2436400
Stay
Loading…
↗
